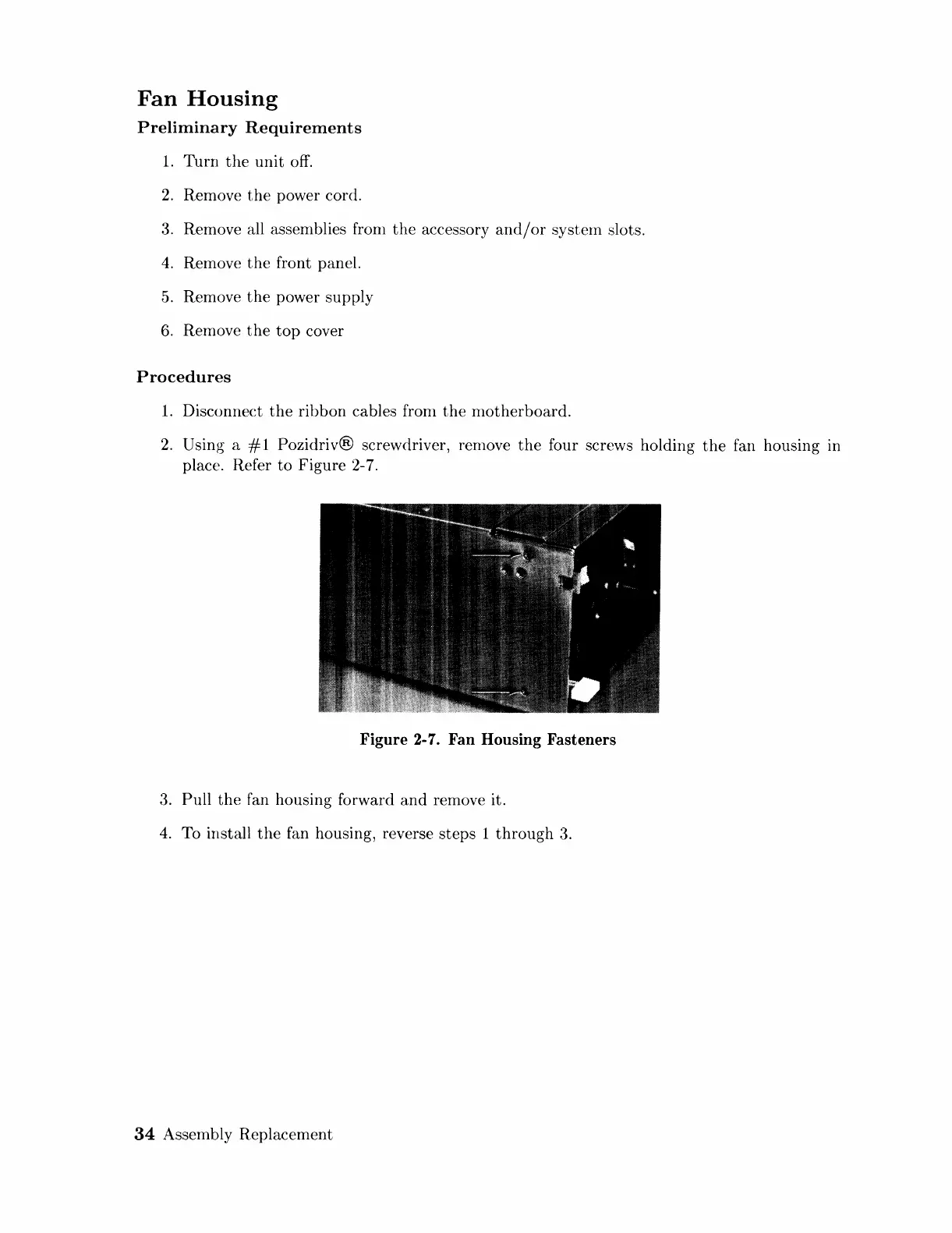

Fan Housing
Preliminary Requirements
1. Turn the unit off.
2. Remove the power corel.
3. Remove all assemblies frolll the accessory and/or system slots.
4. Remove the front panel.
5. Remove the power supply
6. Remove the top cover
Procedures
1. Disconnect the ribbon cables frolll the lllotherboard.
2. Using a #1 Pozidriv® screwdriver, relllove the four screws holding the fan housing in
place. Refer
to Figure 2-7.
Figure 2-7.
Fan Housing Fasteners
3. Pull the fan housing forward and remove it.
4. To install the fan housing, reverse steps 1 through 3.
34 Assembly Replacement
