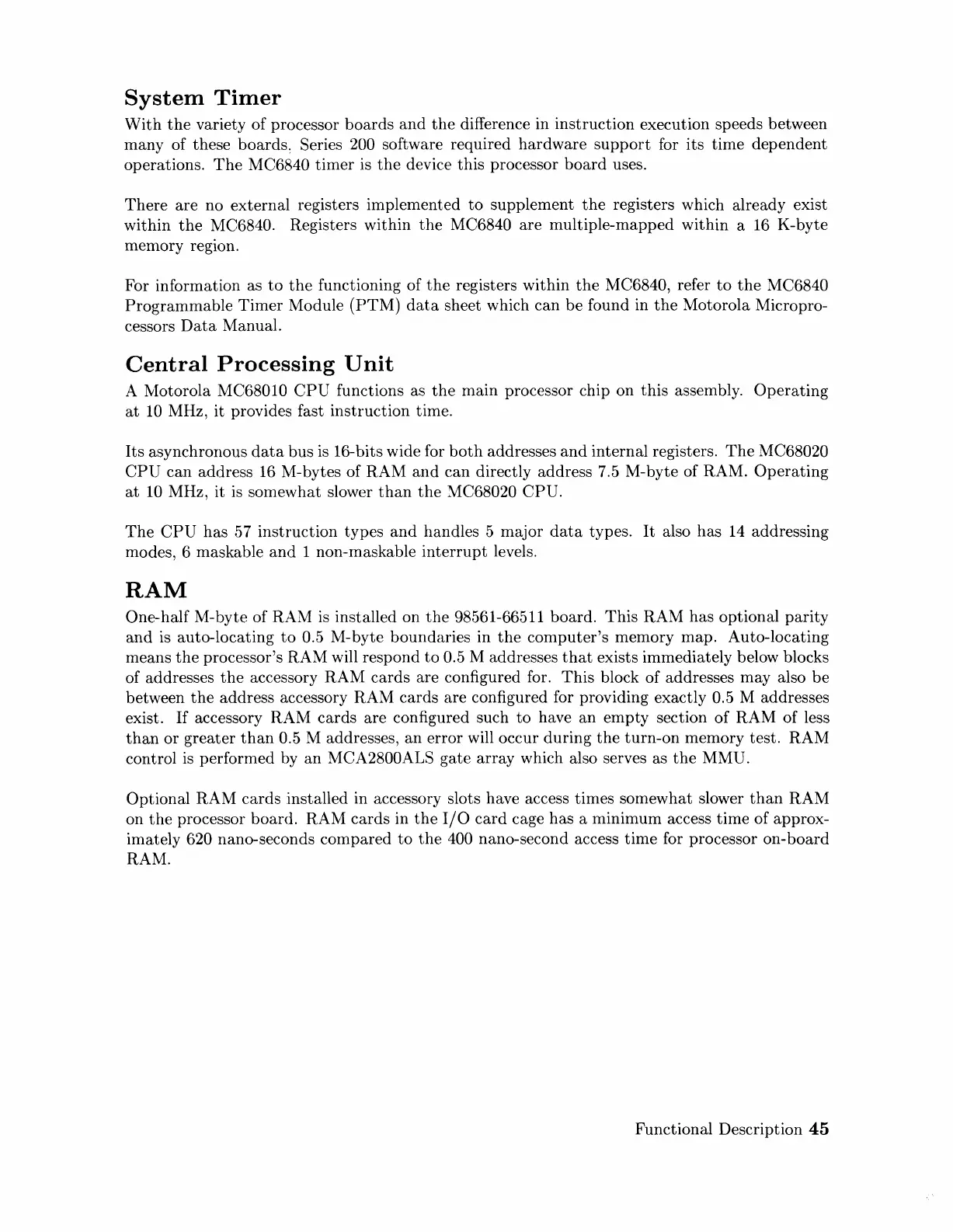

System
Timer
With
the
variety
of
processor
boards
and
the
difference in
instruction
execution speeds between
many of these
boards~
Series 200 software required
hardware
support
for its
time
dependent
operations.
The
MC6840
timer
is
the
device
this
processor
board
uses.
There
are no
external
registers implemented
to
supplement
the
registers which already exist
within
the
MC6840. Registers
within
the
MC6840 are
multiple-mapped
within
a 16 K-byte
menlory region.
For information as
to
the
functioning
of
the
registers
within
the
MC6840, refer
to
the
MC6840
Programmable
Timer
Module
(PTM)
data
sheet which
can
be
found in
the
Motorola Micropro-
cessors
Data
Manual.
Central
Processing
Unit
A lVlotorola MC68010
CPU
functions as
the
main processor chip on
this
assembly.
Operating
at
10
MHz, it provides fast
instruction
time.
Its
asynchronous
data
bus
is
16-bits wide for
both
addresses
and
internal registers.
The
MC68020
CPU
can
address 16 M-bytes of
RAM
and
can
directly address 7.5 M-byte of RAM.
Operating
at
10
MHz, it is somewhat slower
than
the
~C68020
CPU.
The
CPU
has 57
instruction
types
and
handles 5
major
data
types.
It
also has
14
addressing
modes, 6 maskable
and
1 non-maskable
interrupt
levels.
RAM
One-half M-byte
of
RAM
is
installed on
the
98561-66511 board.
This
RAM
has optional
parity
and
is auto-locating
to
0.5 M-byte boundaries in
the
computer's
memory map. Auto-locating
means
the
processor's
RAM
will respond
to
0.5 M addresses
that
exists immediately below blocks
of addresses
the
accessory
RAM
cards
are configured for.
This
block of addresses may also
be
between
the
address accessory
RAM
cards
are configured for providing exactly 0.5 M addresses
exist.
If
accessory
RAM
cards
are configured such
to
have
an
empty
section
of
RAM
of less
than
or
greater
than
0.5 M addresses,
an
error
will occur
during
the
turn-on
memory test.
RAM
control
is
performed by
an
MCA2800ALS
gate
array
which also serves as
the
MMU.
Optional
RAM
cards
installed in accessory slots have access times somewhat slower
than
RAM
on
the
processor
board.
RAM
cards
in
the
I/O
card
cage has a minimum access
time
of
approx-
imately
620 nano-seconds compared
to
the
400 nano-second access
time
for processor
on-board
RAM.
Functional Description
45
