Determining Computer System Numbers
Table 1-2 lists the assemblies installed by the factory in each of the four bundled Series 300
computer systenls. To use Table 1-2, follow these steps:
1. Inventory the assemblies installed in the computer and locate them in the left-hand col-
umn.
2. In the matrix, find the column that has an "X" or Option Number (example: "003") for
each assernbly in
the computer.
:3. The column having each assembly identified corresponds to the ordered product shown
across
the top.

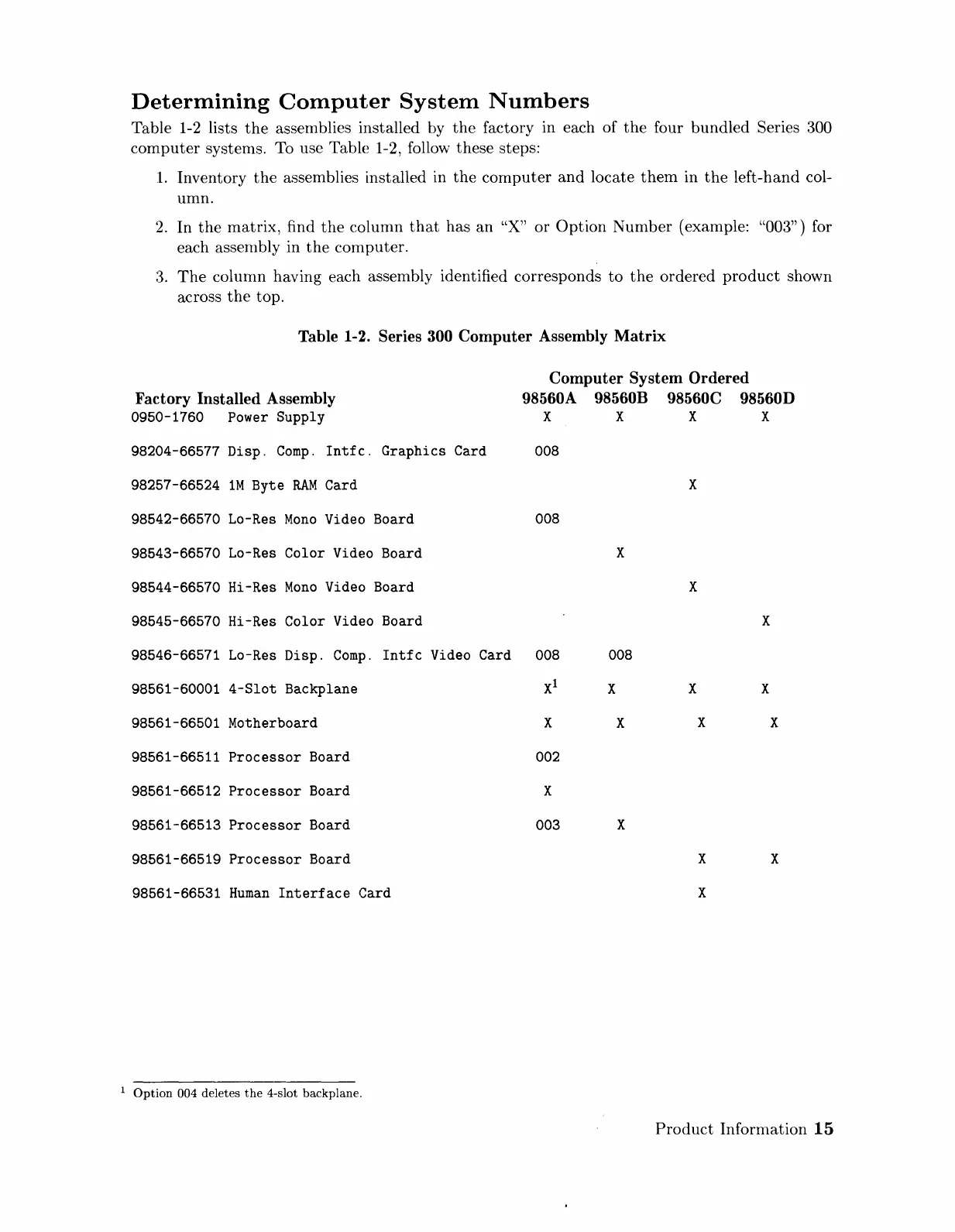

Table 1-2.
Series 300 Computer Assembly Matrix
Computer System Ordered
Factory Installed Assembly
98560A
98560B
98560C
98560D
0950-1760 Power Supply X X
X X
98204-66577 Disp.
Compo Intfc.
Graphics Card
008
98257-66524 1M Byte RAM Card
X
98542-66570
Lo-Res
Mono Video
Board
008
98543-66570
Lo-Res
Color Video Board X
98544-66570
Hi-Res
Mono Video Board X
98545-66570 Hi-Res
Color Video Board X
98546-66571 Lo-Res Disp. Compo Intfc Video Card 008 008
98561-60001
4-Slot
Backplane
Xl
X
X X
98561-66501 Motherboard X
X
X
X
98561-66511 Processor Board 002
98561-66512 Processor Board X
98561-66513 Processor Board
003
X
98561-66519 Processor Board
X
X
98561-66531 Human Interface Card
X
1 Option 004 deletes the 4-slot backplane.
