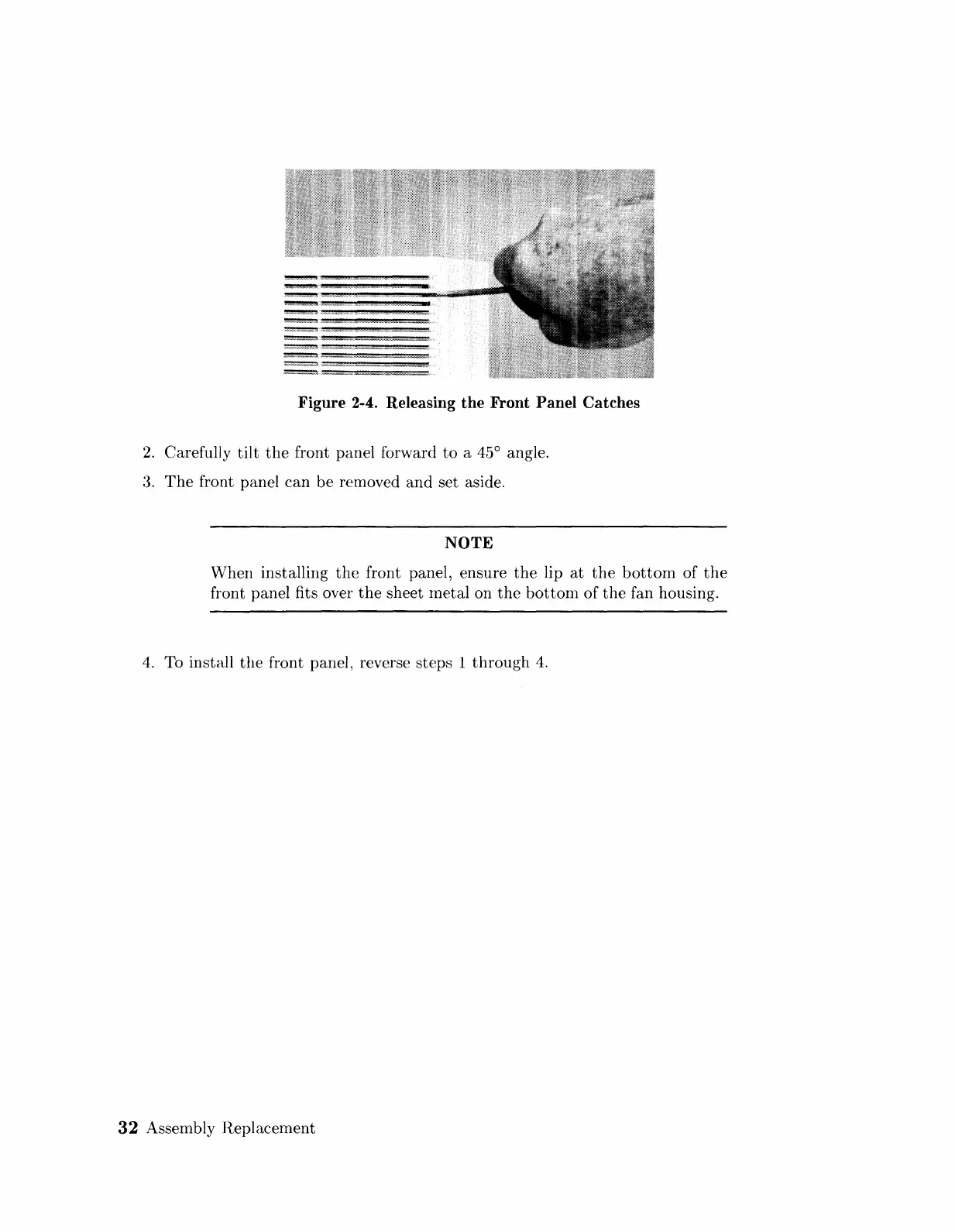

Figure 2-4. Releasing the Front Panel Catches
2. Carefully tilt the front panel forward to a 45° angle.
3. The front panel can be removed and set aside.
NOTE
When installing the front panel, ensure the lip at the bottom of the
front panel fits over the sheet metal on the bottom of the fan housing.
4. To install the front panel, reverse steps 1 through 4.
32 Assembly Replacement
