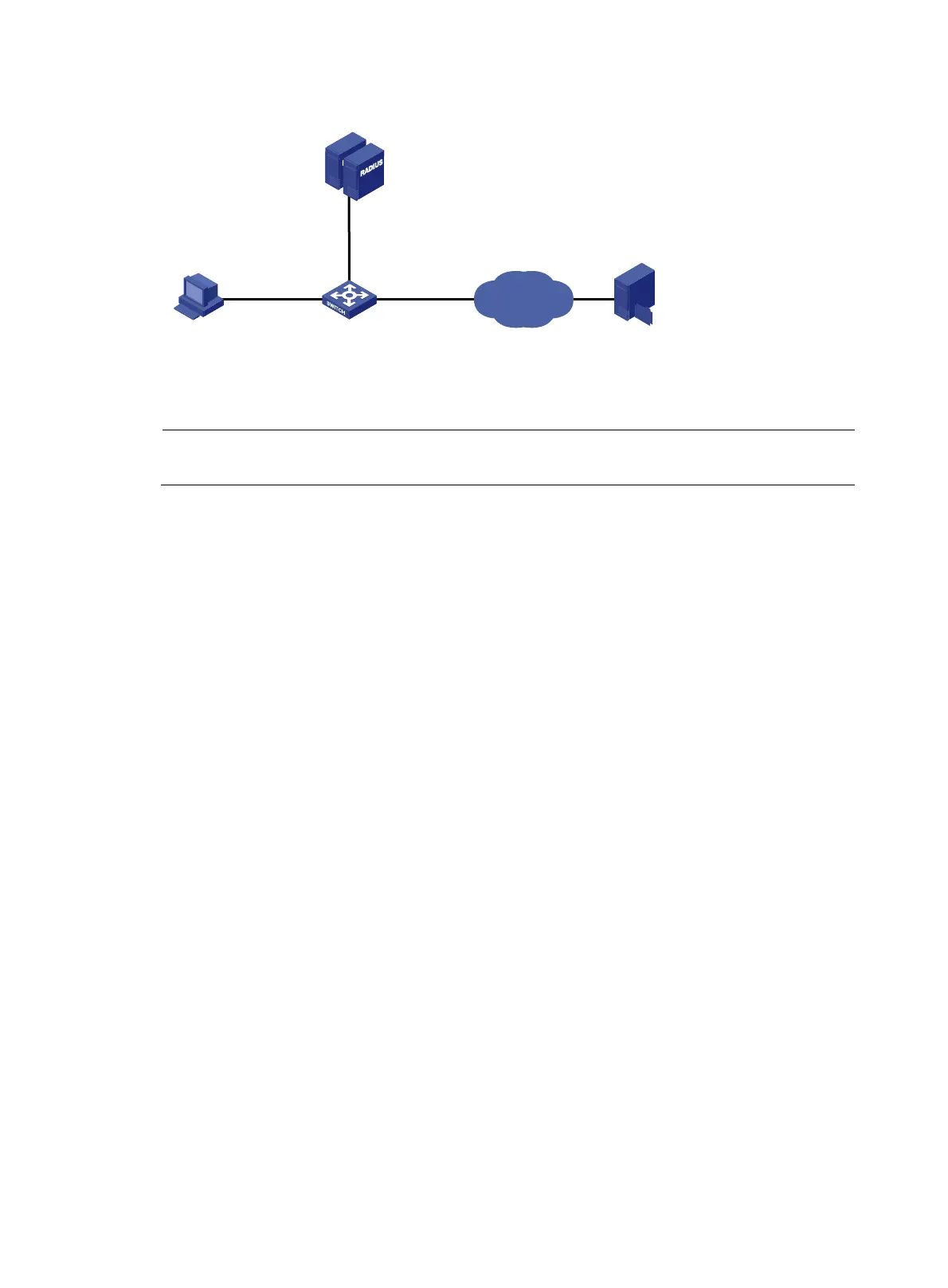

Figure 32 Network diagram for ACL assignment
Configuration procedure
NOTE:
Check that the RADIUS server and the access device can reach each other.
1. Configure the ACL assignment
# Configure ACL 3000 to deny packets destined for 10.0.0.1.
<Sysname> system-view
[Sysname] acl number 3000
[Sysname-acl-adv-3000] rule 0 deny ip destination 10.0.0.1 0
[Sysname-acl-adv-3000] quit
2. Configure RADIUS-based MAC authentication on the device
# Configure the RADIUS scheme.
[Sysname] radius scheme 2000
[Sysname-radius-2000] primary authentication 10.1.1.1 1812
[Sysname-radius-2000] primary accounting 10.1.1.2 1813
[Sysname-radius-2000] key authentication simple abc
[Sysname-radius-2000] key accounting simple abc
[Sysname-radius-2000] user-name-format without-domain
[Sysname-radius-2000] quit
# Apply the RADIUS scheme to an ISP domain for authentication, authorization, and accounting.
[Sysname] domain 2000
[Sysname-isp-2000] authentication default radius-scheme 2000
[Sysname-isp-2000] authorization default radius-scheme 2000
[Sysname-isp-2000] accounting default radius-scheme 2000
[Sysname-isp-2000] quit
# Enable MAC authentication globally.
[Sysname] mac-authentication
# Specify the ISP domain for MAC authentication users.
[Sysname] mac-authentication domain 2000
# Configure the device to use MAC-based user accounts, and the MAC addresses are hyphen separated
and in lowercase.
[Sysname] mac-authentication user-name-format mac-address with-hyphen lowercase
