NOTE:
• Configure IP addresses for the host, switch, and servers as shown in Figure 59
and make sure that the
y
can reach each other.
• Configure the RADIUS server properly to provide authentication and accounting functions for users.
1. Configure the portal server (iMC PLAT 3.20)
NOTE:
This example assumes that the portal server runs on iMC PLAT 3.20-R2606P13 and iMC UAM
3.60-E6301.
# Configure the portal server.
Log in to the iMC management platform and select the Service tab. Then, select Portal Service
Management > Server from the navigation tree to enter the portal server configuration page, as shown
in Figure 60.
• C
onfigure the portal server heartbeat interval and user heartbeat interval.
• Use default values for other parameters.

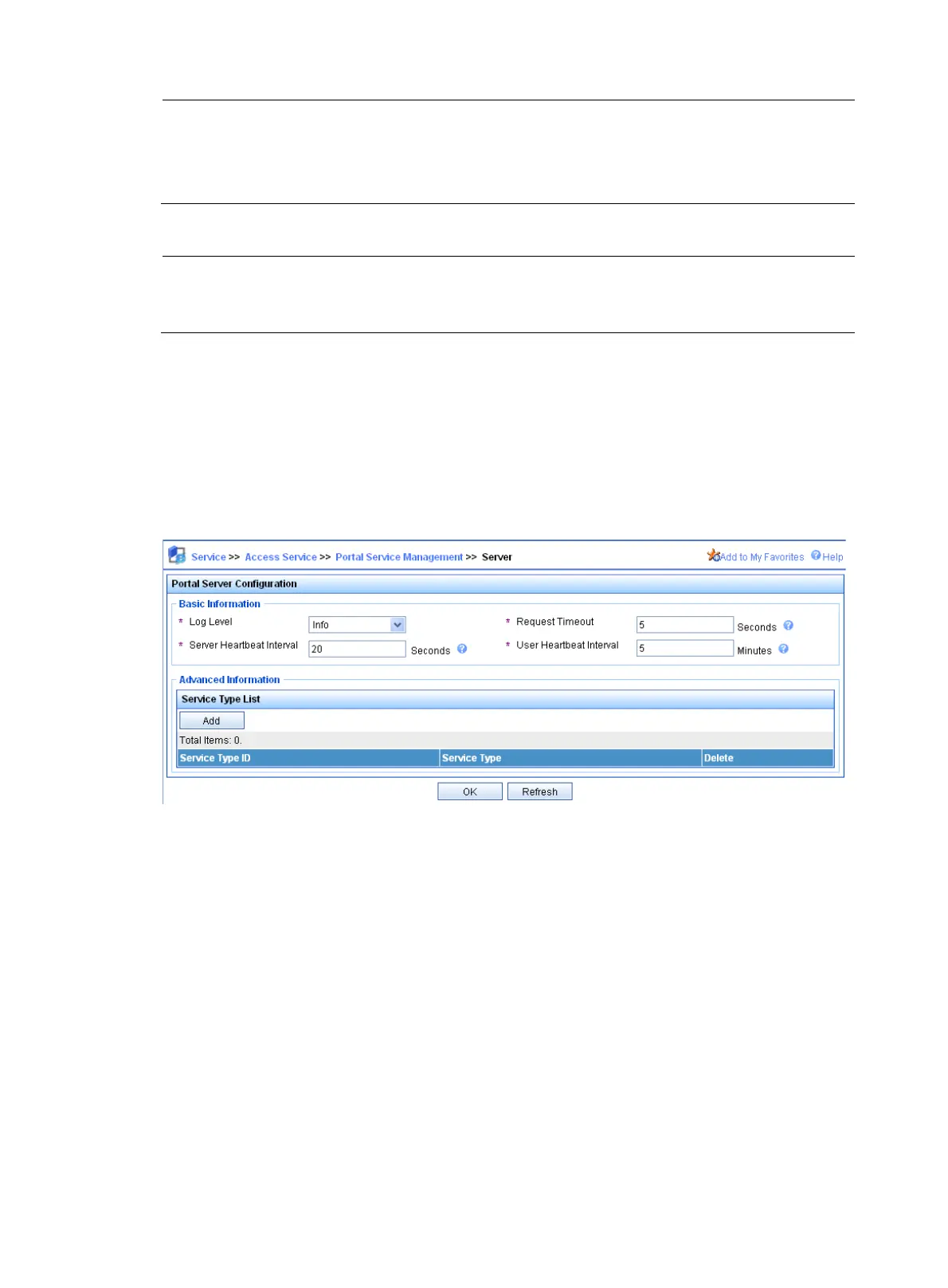

Figure 55 Portal server configuration
# Configure the IP address group.
Select Portal Service Management > IP Group from the navigation tree to enter the portal IP address
group configuration page. Then, click Add to enter the page shown in Figure 61.
• Enter the I
P group name.
• Enter the start IP address and end IP address of the IP group. Make sure that the host IP address is
in the IP group.
• Select a service group. By default, the group Ungrouped is used.
• Select the IP group type Normal.
