Configure Switch B to still perform port isolation on ARP broadcast requests.

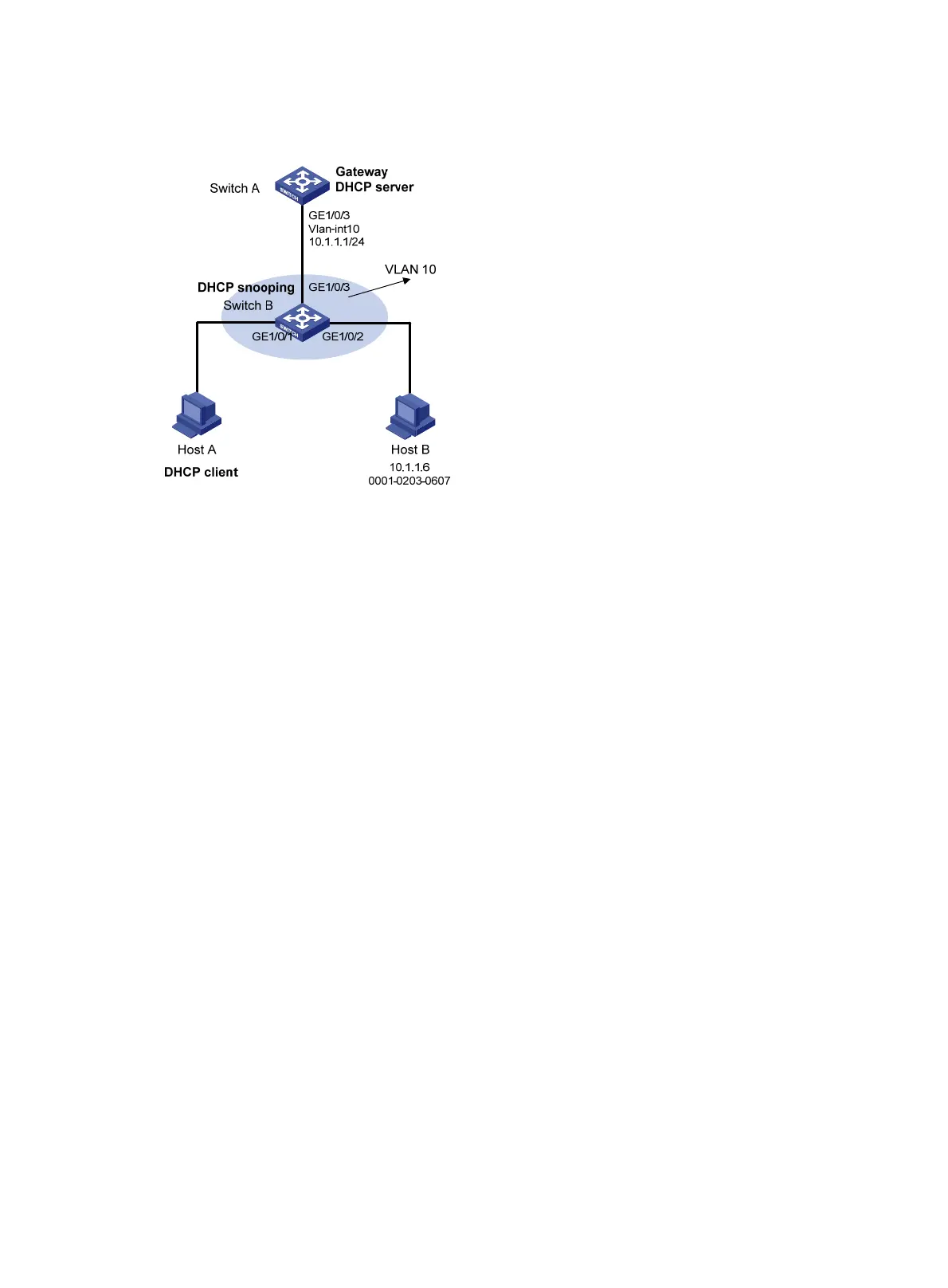

Figure 108 Network diagram for ARP restricted forwarding configuration
Configuration procedure
1. Configure VLAN 10, add ports to VLAN 10, and configure the IP address of the VLAN-interface,
as shown in Figure 113. (Omitted)
2. Conf
igure the DHCP server on Switch A.
# Configure DHCP address pool 0.
<SwitchA> system-view
[SwitchA] dhcp enable
[SwitchA] dhcp server ip-pool 0
[SwitchA-dhcp-pool-0] network 10.1.1.0 mask 255.255.255.0
3. Configure the DHCP client on Hosts A and B. (Omitted)
4. Configure Switch B.
# Enable DHCP snooping, and configure GigabitEthernet 1/0/3 as a DHCP-trusted port.
<SwitchB> system-view
[SwitchB] dhcp-snooping
[SwitchB] interface gigabitethernet 1/0/3
[SwitchB-GigabitEthernet1/0/3] dhcp-snooping trust
[SwitchB-GigabitEthernet1/0/3] quit
# Enable ARP detection.
[SwitchB] vlan 10
[SwitchB-vlan10] arp detection enable
# Configure GigabitEthernet 1/0/3 as an ARP-trusted port.
[SwitchB-vlan10] interface gigabitethernet 1/0/3
[SwitchB-GigabitEthernet1/0/3] arp detection trust
[SwitchB-GigabitEthernet1/0/3] quit
# Configure a static IP source guard entry on interface GigabitEthernet 1/0/2.
[SwitchB] interface gigabitethernet 1/0/2
