TDR Fundamentals
Step Reflection Testing
9-14
right of M is Z
o
, an equivalent representation is shown in Figure 9-10. The
pattern on the oscilloscope is merely a special case of Figure 9-7A and is shown
on Figure 9-11.

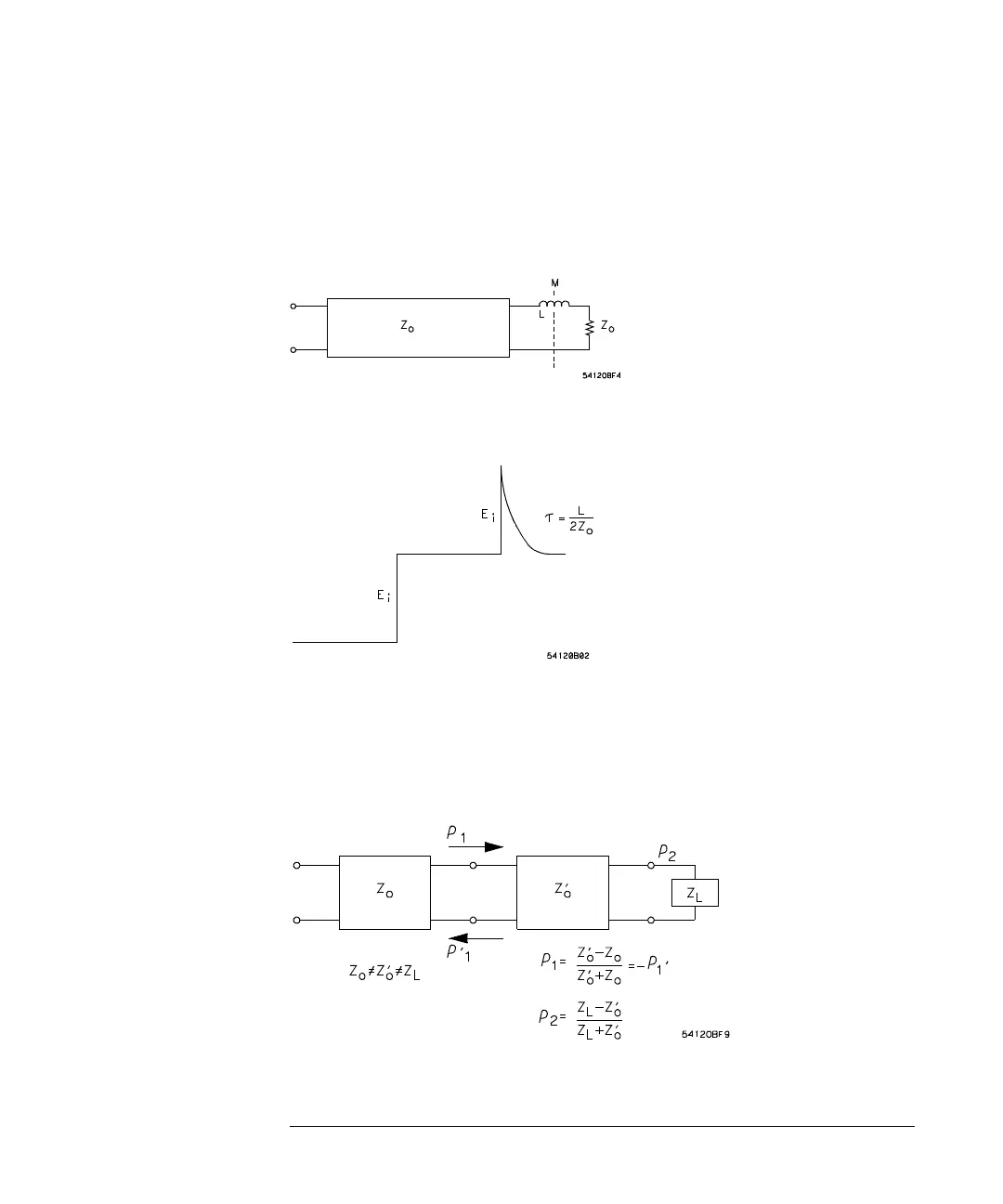

Figure 9-10
Equivalent System
Figure 9-11
Multiple Discontinuities
One of the advantages of TDR is its ability to handle cases involving more than
one discontinuity. An example of this is Figure 9-12.
Figure 9-12
