173
3. Configure direct portal authentication on interface VLAN-interface 100, which is connected with
the user host.
4. Configure the portal server detection function on the access device, so that the access device can
detect the status of the portal server by cooperating with the portal server heartbeat function.
5. Configure the portal user information synchronization function, so that the access device can
synchronize portal user information with the portal server by cooperating with the portal user
heartbeat function.
Configure IP addresses for the host, switch, and servers as shown in Figure 62 and
make sure that they
can reach each other.
Configure the RADIUS server properly to provide authentication and accounting functions for users.
Configuring the portal server (IMC PLAT 5.0)
This example assumes that the portal server runs IMC PLAT 5.0(E0101) and IMC UAM 5.0(E0101).
# Configure the portal server.
Log in to IMC and select the Service tab. Then, select User Access Manager > Portal Service
Management > Server from the navigation tree to enter the portal server configuration page, as shown
in Figure 63.
• C
onfigure the portal server heartbeat interval and user heartbeat interval.
• Use the default value for other parameters.

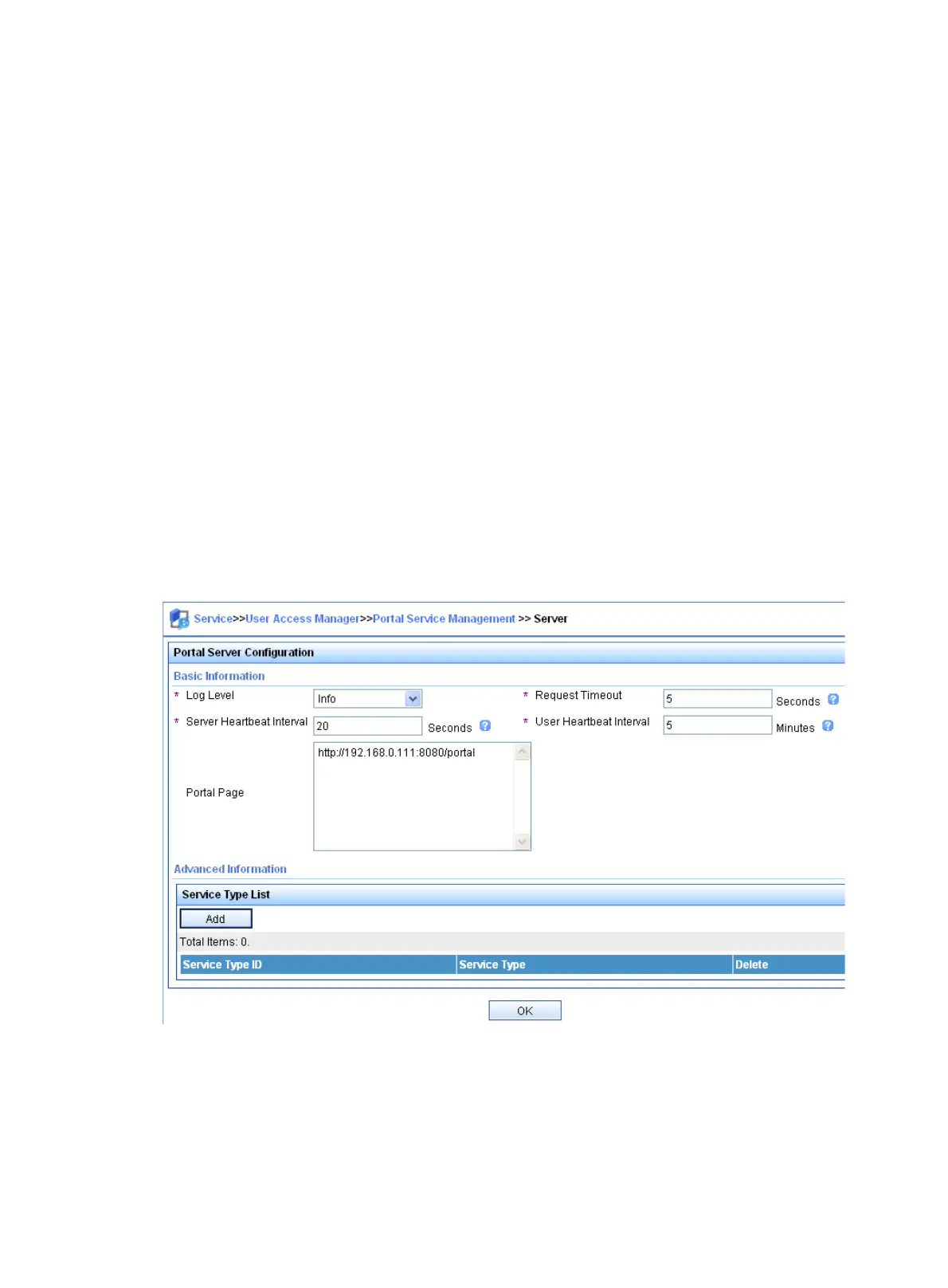

Figure 63 Portal server configuration
# Configure the IP address group.
Select User Access Manager > Portal Service Management > IP Group from the navigation tree to enter
the portal IP address group configuration page. Then, click Add to enter the page shown in Figure 47.
• Enter the I
P group name.
