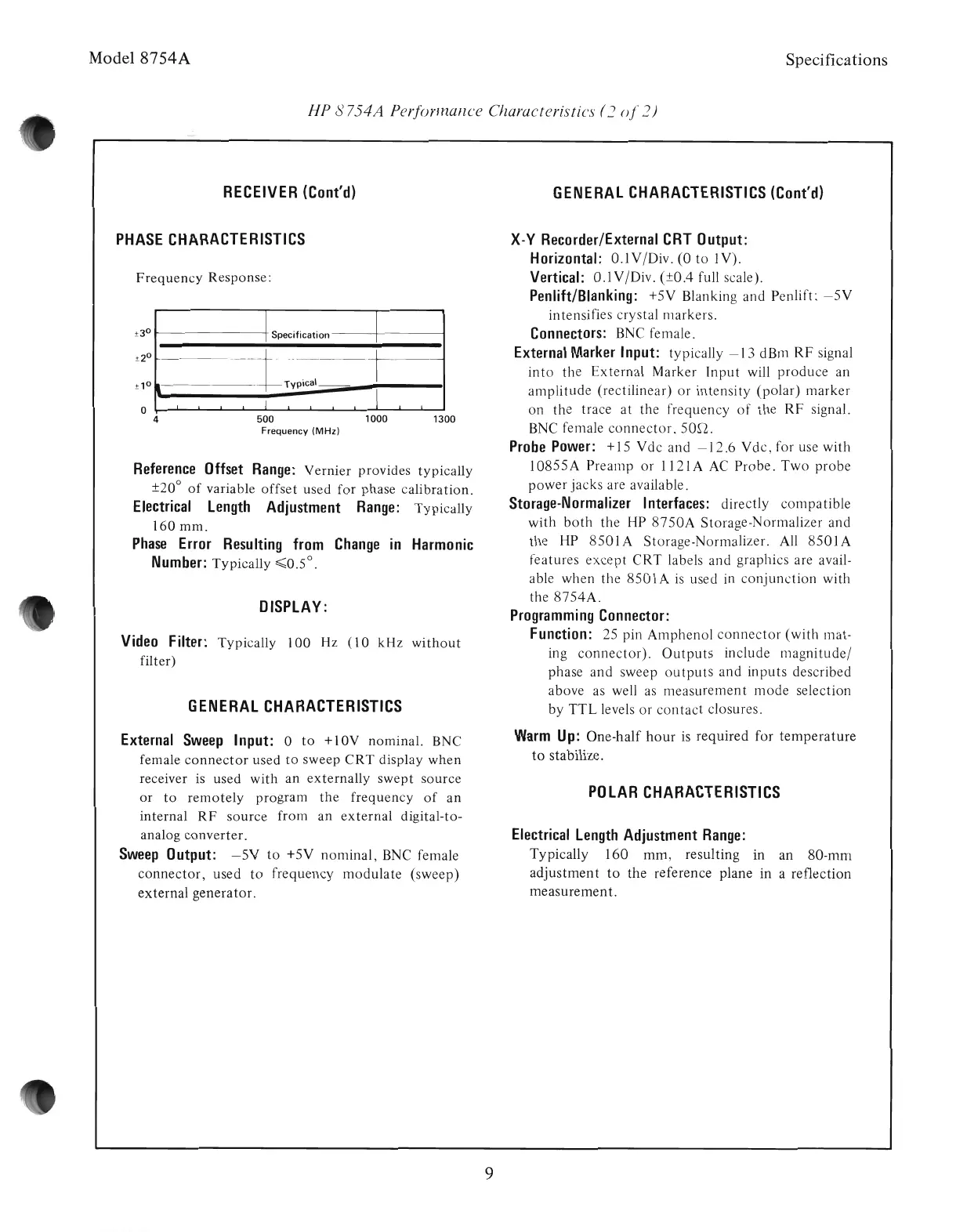

8754A Per!orlnance Characteristics
(1
of'2)
RECEIVER
(Cont'd)
GENERAL
CHARACTERISTICS
(Cont'd)
Frequency
Response:
DISPLAY:
GENERAL
CHARACTERISTICS
PHASE
CHARACTERISTICS
POLAR
CHARACTERISTICS
Electrical
Length
Adjustment
Range:
Typically
160
mm,
resulting in an 80-mITl
adjustment
to
the
reference plane in a
reflection
measurement.
X-Y
Recorder/External
CRT
Output:
Horizontal:
0.1 V/Div.
(0
to
1
V).
Vertical:
O.1V/Div.
(±0.4
full scale).
Penlift/Blanking:
+5V
Blanking
and
Penlift
~
-5V
intensifies crystal 111arkers.
Connectors:
BNC female.
External
Marker
I
nput:
typically
-13
dBm
RF
signal
into
the
External
Marker
Input
will
produce
an
ampli
tude
(rectilinear)
or
in
tensity
(polar)
marker
on
the
trace
at
the
frequency
of
the
RF
signal.
BNC
fe111ale
connector,
50n.
Probe
Power:
+15
Vdc
and
-12.6
Vdc,
for use
with
10855A
Preanlp
or
1121A
AC
Probe.
Two
probe
power
jacks
are available.
Storage-Normalizer
I
nterfaces:
directly
compatible
with
both
the
HP
8750A
Storage-Normalizer
and
the HP
8501
A Storage-Normalizer. All 8501 A
features
except
CRT
labels
and
graphics are avail-
able
when
the
8501 A
is
used in
conjunction
with
the
8754A.
Programming
Connector:
Function:
25 pin
Amphenol
connector
(with
nlat-
ing
connector).
Outputs
include
nlagnitude/
phase
and
sweep
outputs
and
inputs
described
above as well as
measurement
mode
selection
by
TTL
levels
or
con
tact
closures.
Warm
Up:
One-half
hour
is
required
for
temperature
to
stabilize.
13001000
500
Frequency
(MHz)
I
...
I SpecificatIOn
t
Tvp;cal----
I
I
4
o
Video
Filter:
Typically
100
Hz
(10kHz
without
filter)
Reference
Offset
Range:
Vernier
provides
typically
±20°
of
variable
offset
used
for
phase
calibration.
Electrical
Length
Adjustment
Range:
Typically
160
mm.
Phase
Error
Resulting
from
Change
in
Harmonic
Numbe~:
Typically
~0.5°.
External
Sweep
Input:
0
to
+10V
nominal.
BNC
female
connector
used
to
sweep
CRT
display
when
receiver is used
with
an
externally
swept
source
or
to
remotely
program
the
frequency
of
an
internal
RF
source
from
an
external
digital-to-
analog
converter.
Sweep
Output:
-5V
to
+5V
nominal,
BNC female
connector,
used
to
frequency
modulate
(sweep)
external
generator.
9
