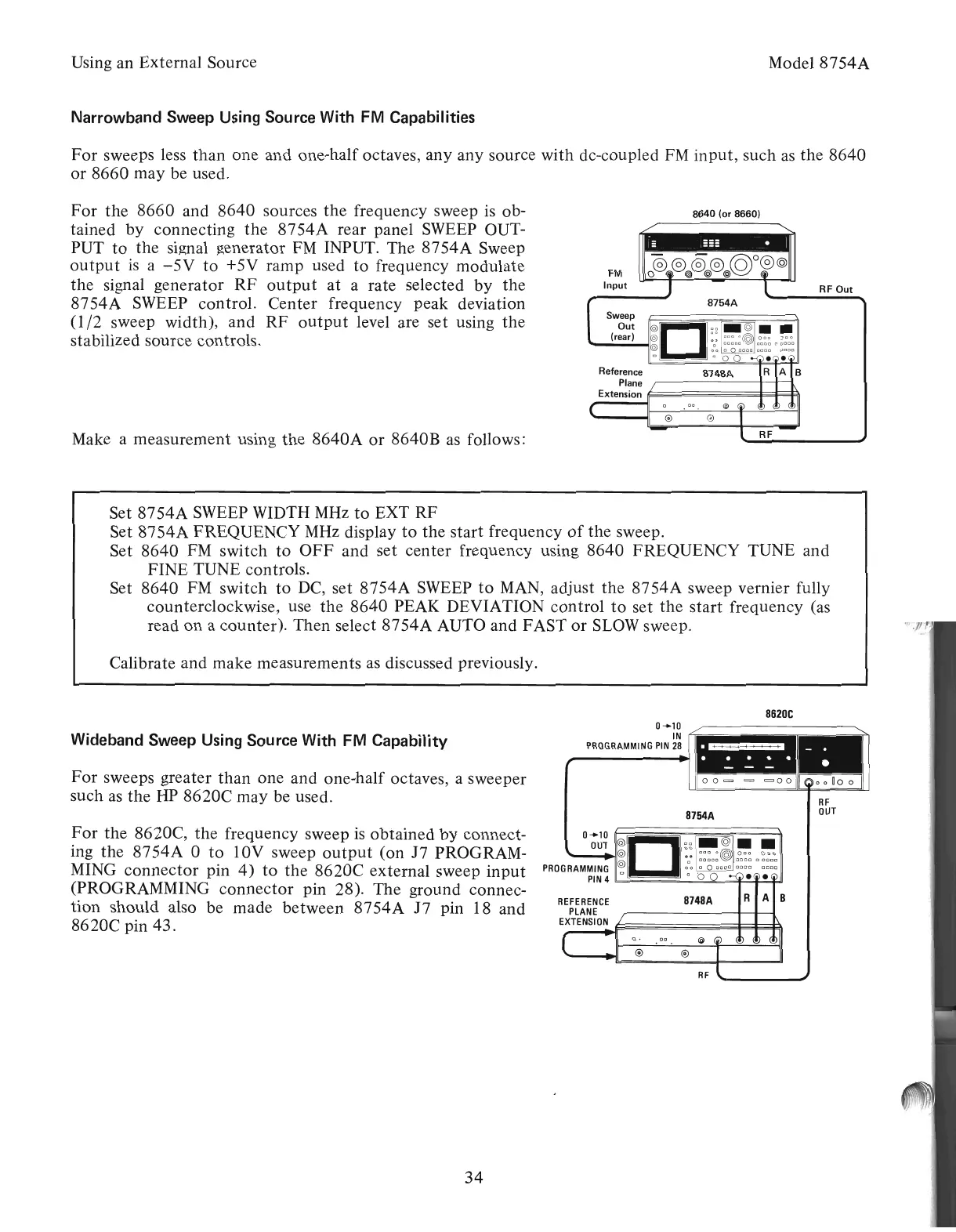

Wideband Sweep Using Source With FM Capability
For
the 8620C,
the
frequency sweep
is
obtained
by
connect-
ing the
8754A
0
to
10V sweep
output
(on J7 PROGRAM-
MING
connector
pin
4)
to
the
8620C external sweep
input
(PROGRAMMING
connector
pin 28). The ground connec-
tion should also be made between
8754A
J7
pin 18 and
8620C pin 43.
Set
8754A
SWEEP WIDTH MHz
to
EXT RF
Set
8754A
FREQUENCY MHz display
to
the
start
frequency
of
the
sweep.
Set
8640
FM
switch
to
OFF
and set center frequency using
8640
FREQUENCY TUNE and
FINE TUNE controls.
Set
8640
FM switch
to
DC,
set
8754A
SWEEP
to
MAN, adjust
the
8754A
sweep vernier fully
counterclockwise, use
the
8640
PEAK DEVIATION control
to
set
the
start frequency (as
. read
on
a counter). Then select
8754A
AUTO and FAST
or
SLOW
sweep.
For
sweeps greater
than
one and one-half octaves, a sweeper
such
as
the
HP 8620C may be used.
Calibrate and make measurements as discussed previously.
