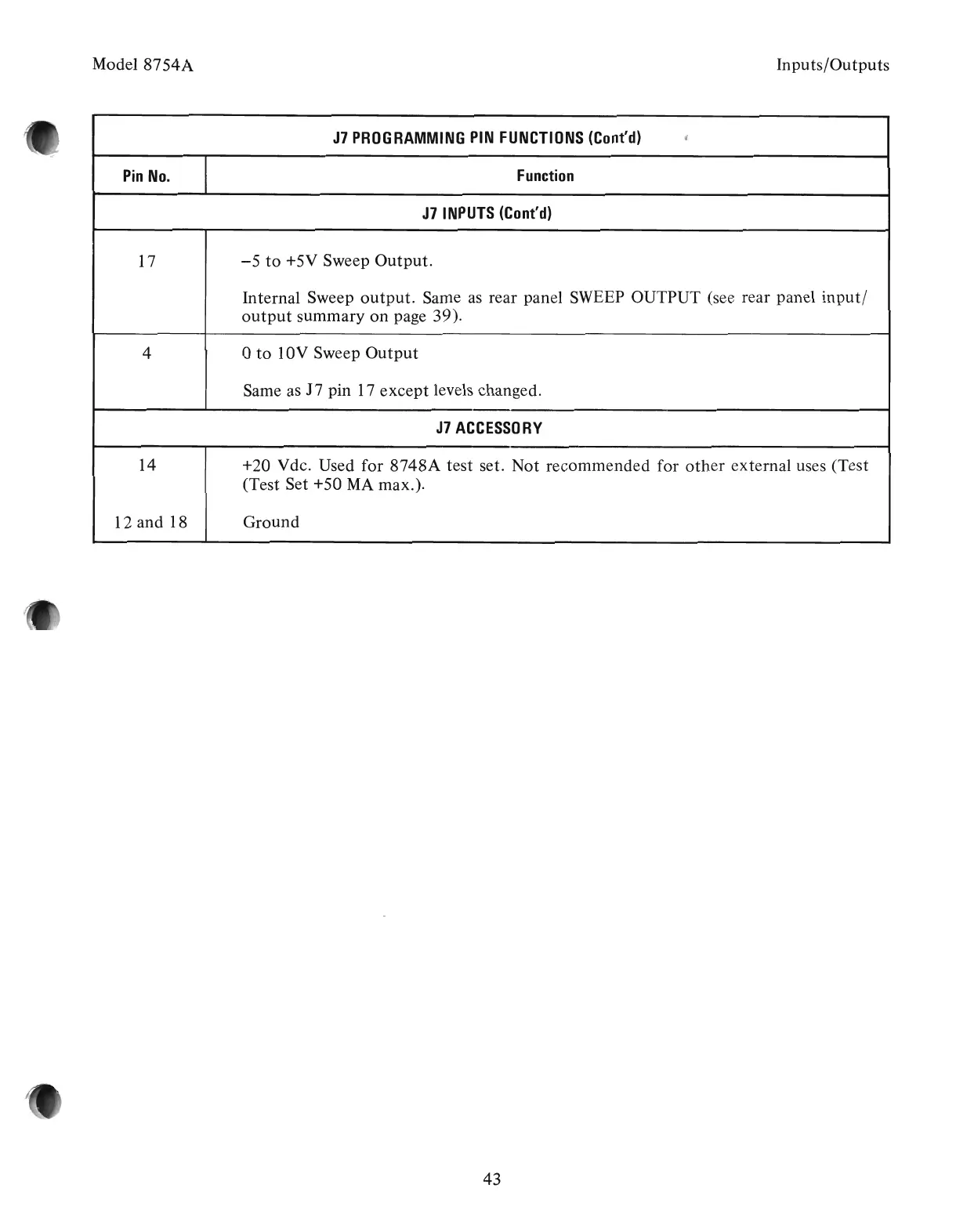

Model 8754A Inputs/Outputs
J7 PROGRAMMING PIN FUNCTIONS (Cont'd)
Pin No.
Function
J7 INPUTS (Cont'd)
17
-5 to +5V Sweep Output.
Internal Sweep output. Same as rear panel SWEEP OUTPUT (see rear panel input/
output summary on page 39).
4
o to 10V Sweep Output
Same as J7 pin 17 except levels changed.
J7 ACCESSORY
14
+20 Vdc. Used for
8748A test set. Not recommended for other external uses (Test
(Test Set +50
MA max.).
12 and 18
Ground
