Modulate or Sum the Signals
2-17

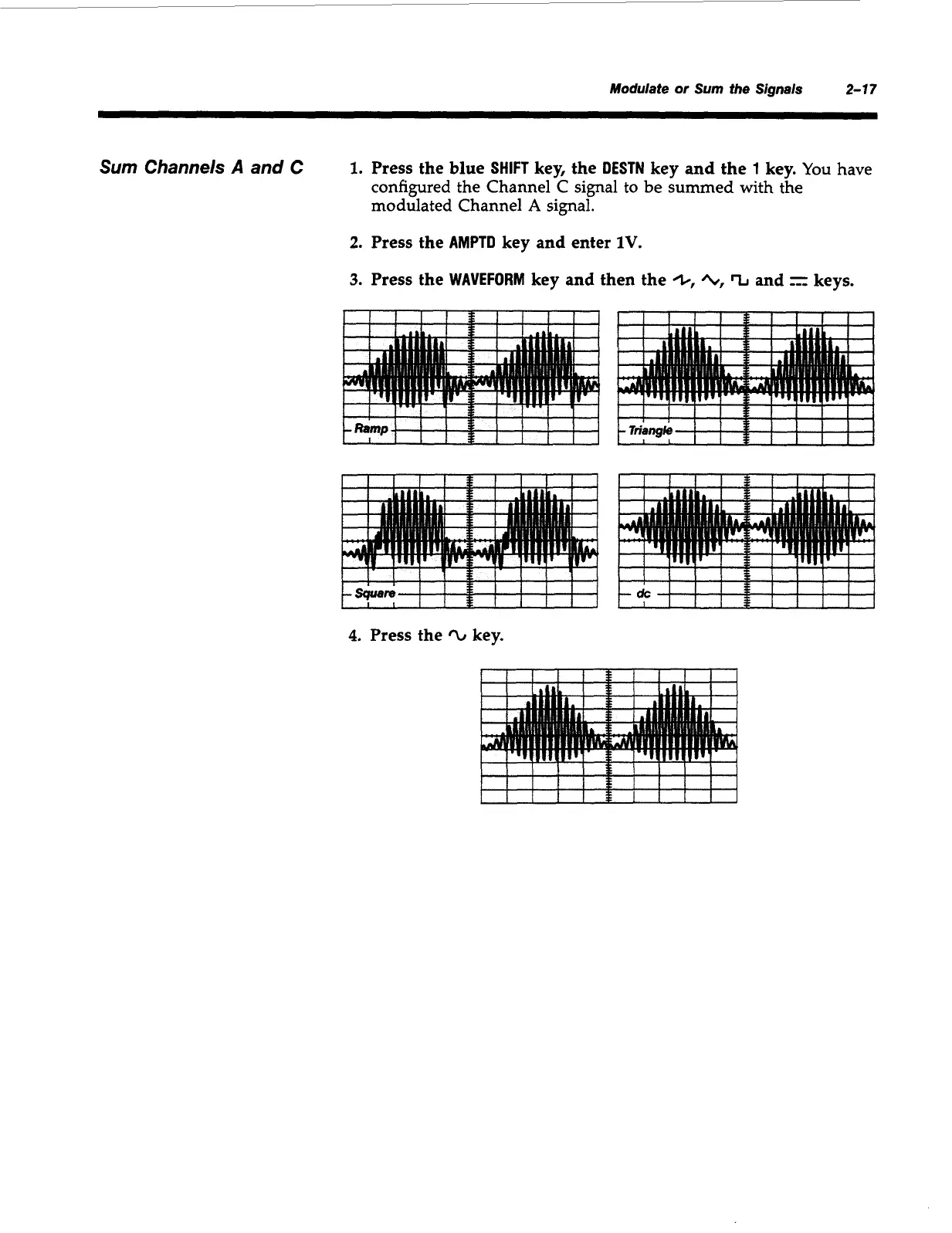

Sum Channels A and C
1. Press the blue SHIFT key, the DESTN key and the 1 key. You have
configured the Channel C signal to be summed with the
modulated Channel
A signal.
2. Press the AMPTD key and enter 1V.
3. Press the WAVEFORM key and then the +, 'b, IJ and z keys.
4. Press the 'L key.
