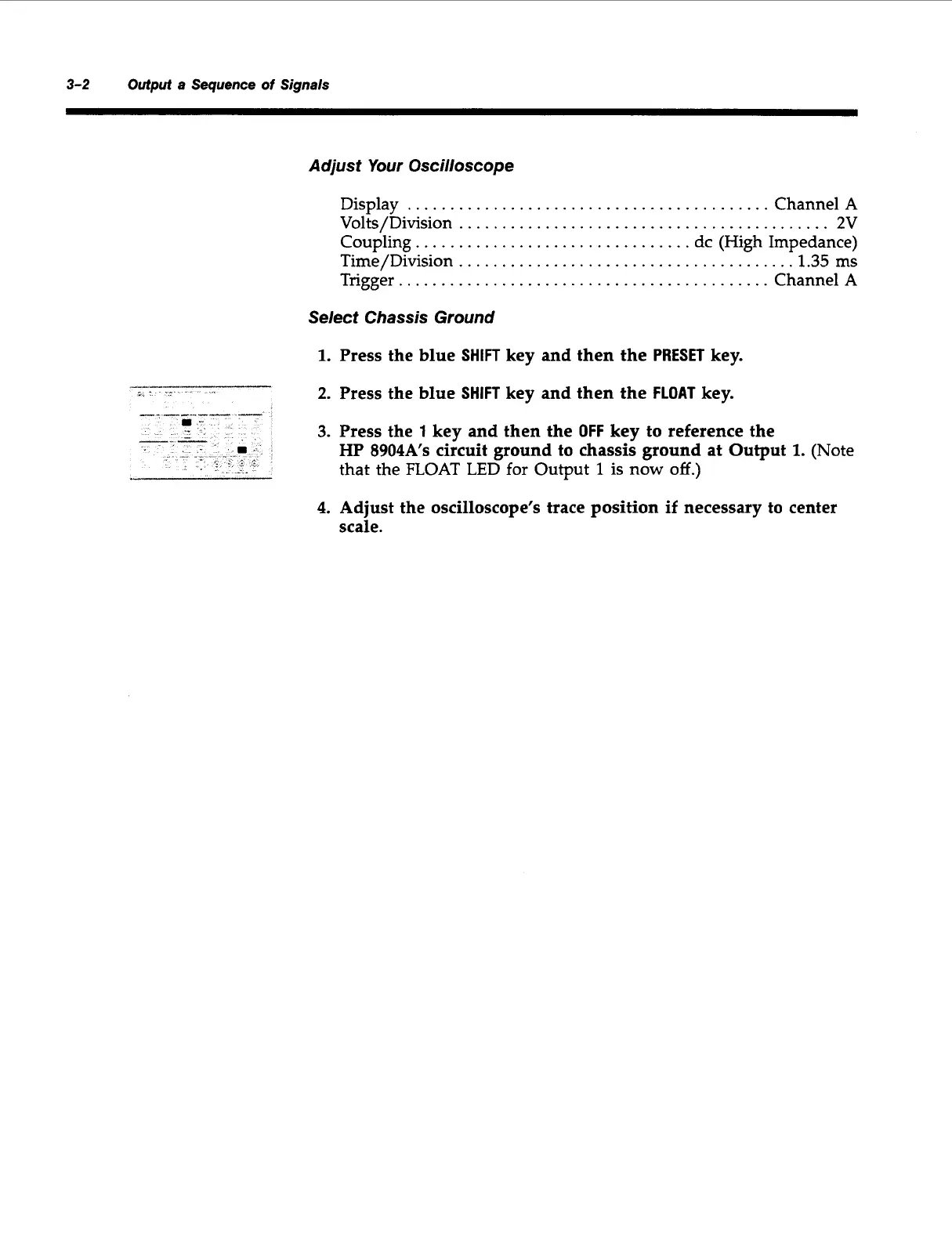

3-2
Output a Sequence of Signals
Adjust Your Oscilloscope
Display .......................................... ChannelA
Vol ts/Division
........................................... 2V
Coupling ................................ dc (High Impedance)
Time/Division
...................................... .1.35 ms
Trigger ........................................... ChannelA
Select Chassis Ground
1. Press the blue SHIFT key and then the PRESET key.
2. Press the blue SHIFT key and then the FLOAT key.
3. Press the 1 key and then the OFF key to reference the
--
HP 8904A's circuit ground to chassis ground at Output 1. (Note
that the FLOAT
LED for Output 1 is now off.)
4. Adjust the oscilloscope's trace position if necessary to center
scale.
