Output
a
Sequence
of
Signals
3-17
Things
to
Remember
About
the
Signa/
You have now completed the setup procedures for each
of
the three
Signal Sequence Modes: Tone, DTMF and Digital. The following
outline lists the key steps for setting up a signal sequence. Figure
3-9
illustrates the
HP
8904As
Signal Sequencing capabilities.
Sequence Modes
1.
2
3.
Enter the parameters
for each signal you wish to include in
your sequence.
Specify the order
in which you wish for the signals to be
output.
Select
the
method
you desire for outputting the sequence
(Manual Step, Single Sequence or Continuous Cycle).

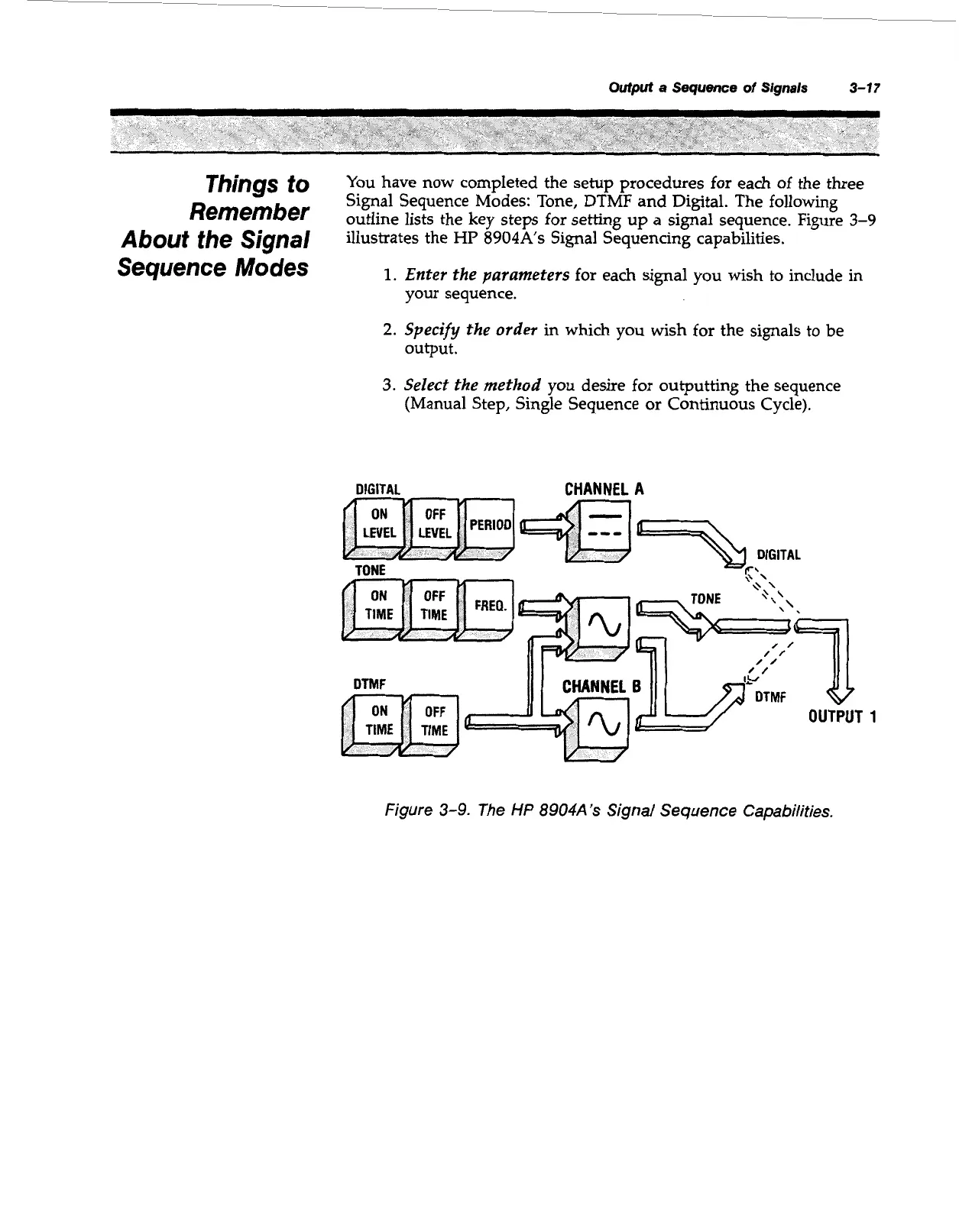

Figure
3-9.
The
HP
8904A's
Signal Sequence Capabilities.
