3C-70
HP
8904A
Option
007
Enhancements
HP-I6
Operation
Composite
Level
Frequency
C arrier
P ilot
T one
Pilot
L
eve1
P hase
Pilot
M ode
Preemphasis
Tone Mode
Query
T
one
P ilot
P reemphasis
-
CL
CF
PF
TF
PL
PP
PL
PTM
-
PEM
TMD
QTM
QPM
QEM
-

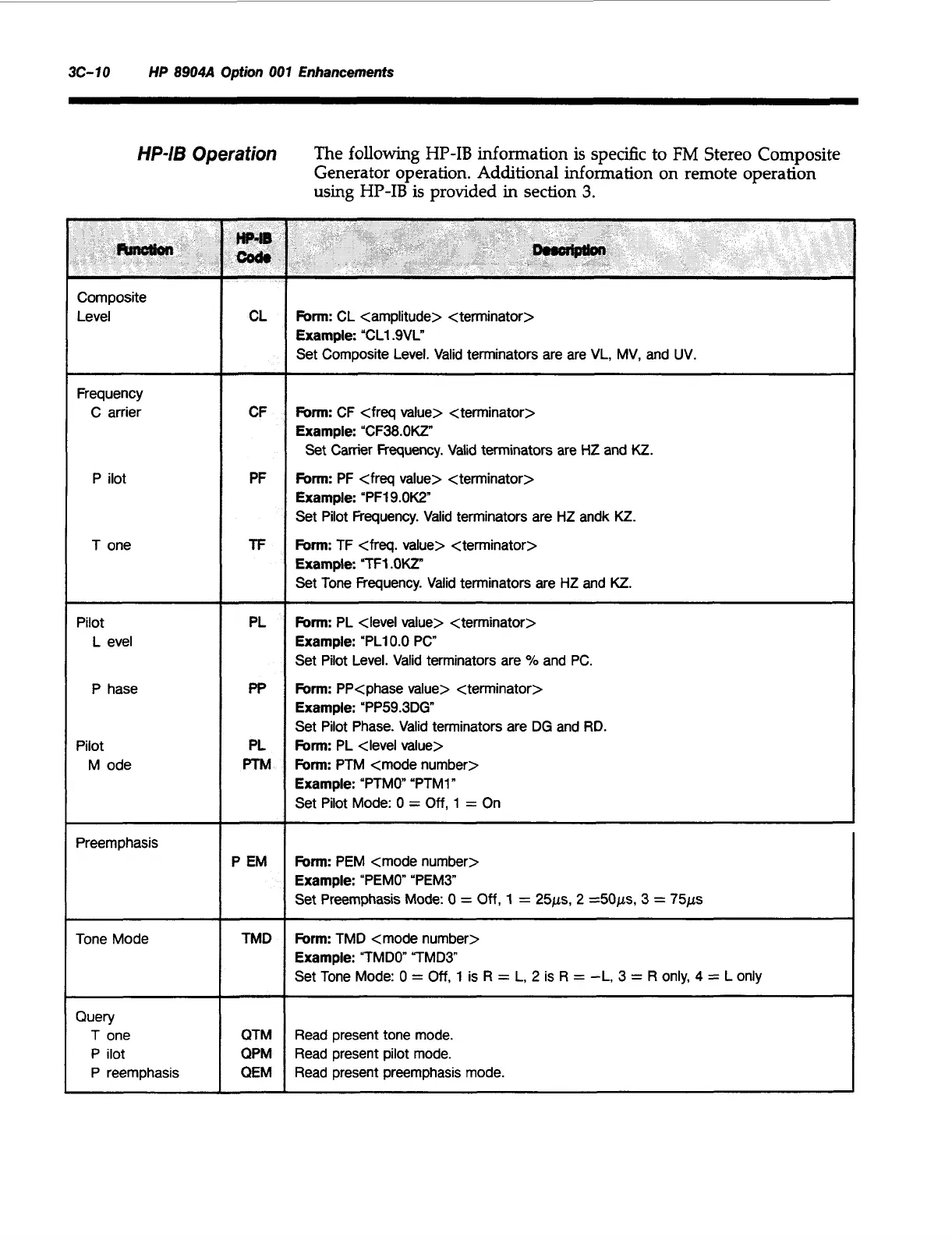

The
following
HP-IB information
is
specific to
FM
Stereo Composite
Generator operation. Additional information on remote operation
using
HP-IB
is
provided
in
section
3.
Form:
CL <amplitude> <terminator>
Example:
"CL1.9VL"
Set Composite Level. Valid terminators are are
VL,
MV, and UV.
Form:
CF <freq value> <terminator>
Example:
"CF38.0KZ"
Form:
PF <freq value> <terminator>
Example:
'PF19.0W
Set Pilot Frequency. Valid terminators are
HZ
andk
KZ.
Form:
TF <freq. value> <terminator>
Example:
TF1
.OW
Set Tone Frequency. Valid terminators are
HZ
and
KZ.
Set Carrier Frequency. Valid terminators are
HZ
and
KZ.
Form:
PL <level value> <terminator>
Example:
'PL10.0 PC"
Set Pilot Level. Valid terminators are
YO
and PC.
Form:
PPCphase value> <terminator>
Example:
"PP59.3DG"
Set Pilot Phase. Valid terminators are
DG
and RD.
Form:
PL <level value>
Form:
PTM <mode number>
Example:
"PTMO" 'PTM1"
Set Pilot Mode:
0
=
Off,
1
=
On
Form:
PEM <mode number>
Example:
"PEMO" 'PEMY
Set Preemphasis Mode:
0
=
Off,
1
=
25ps,
2
=50ps,
3
=
75ps
Form:
TMD <mode number>
Example:
"TMDO" TMD8
Set Tone Mode:
0
=
Off,
1
is
R
=
L,
2
is
R
=
-L, 3
=
R
only,
4
=
L only
Read present tone mode.
Read present pilot mode.
Read present preemphasis mode.
