Output Two Signals at Once
4-3
How to Output
a Signal at
The Dual Output Ports option provides you with two synthesized
function generators. (Both a
HIGH and a LOW output connection is
provided for each function generator.)
each Port
CHANNEL A
CHANNEL B

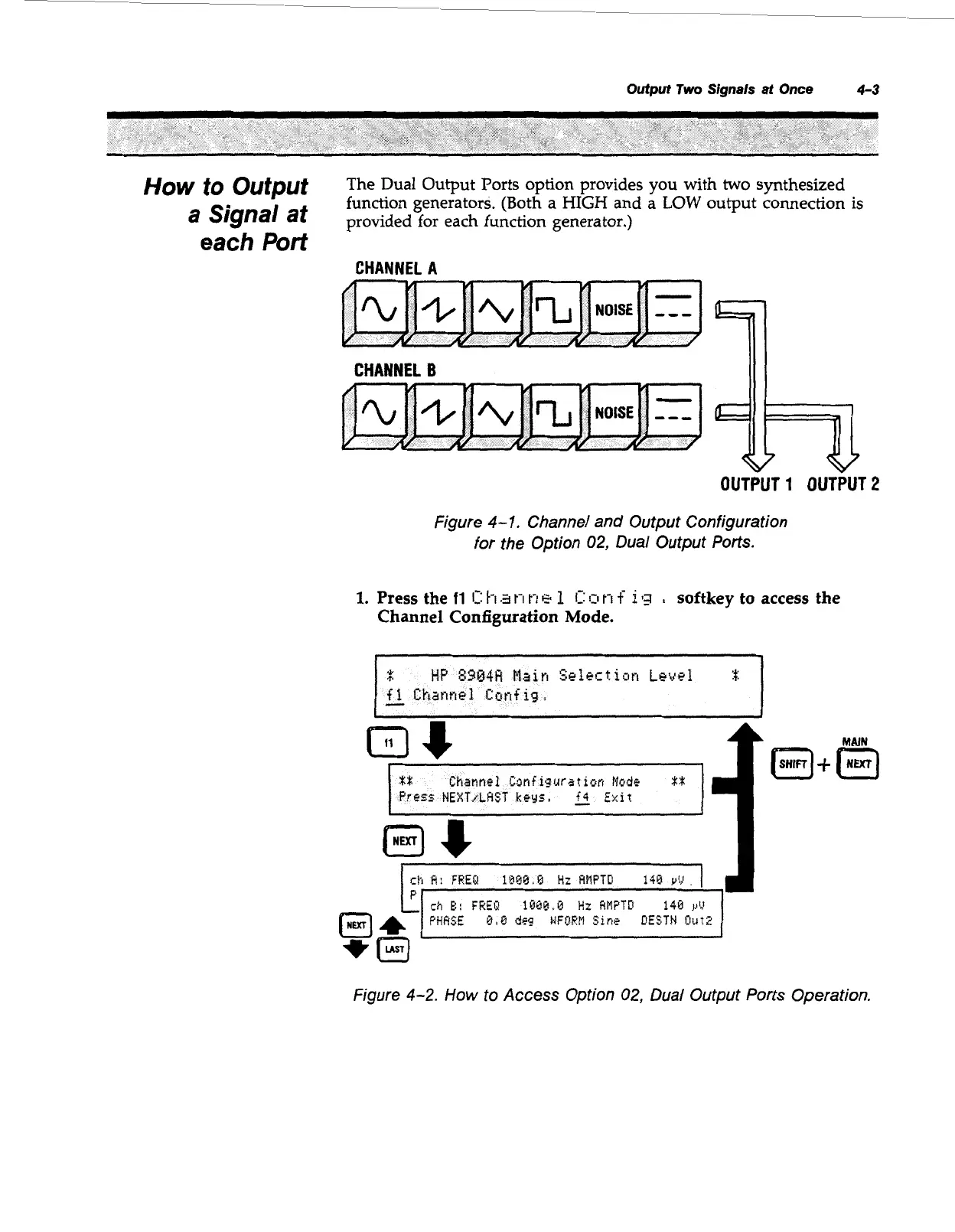

Figure 4- 1. Channel and Output Configuration
for the Option
02, Dual Output Ports.
1. Press the 11 5: 1-1 a t-i t-i e 1 C o 1-1 f 1 g I softkey to access the
Channel Configuration Mode.
I
P 83848 Plain Selection Level :i:
I
+
Figure 4-2. How to Access Option 02, Dual Output Ports Operation.
