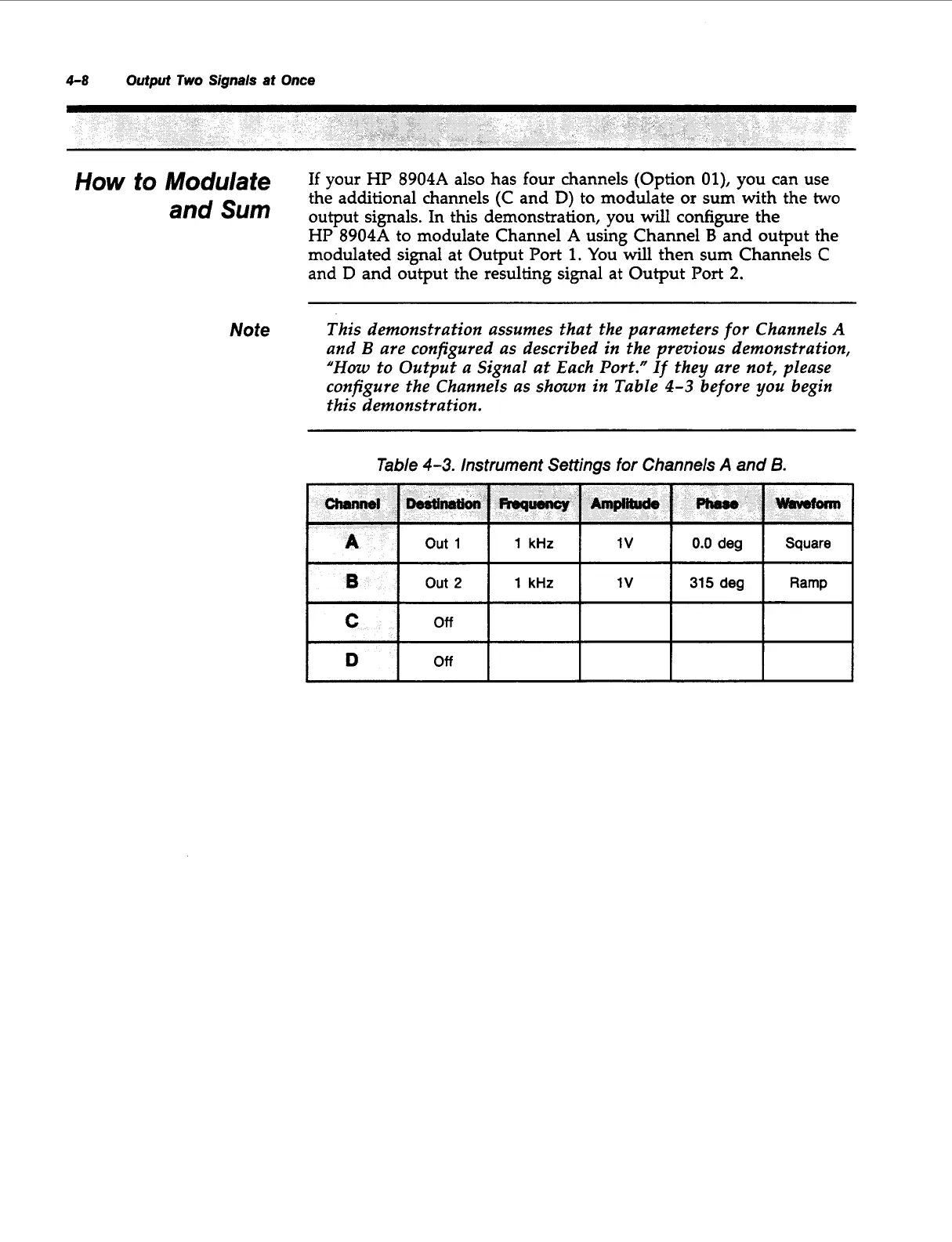

4-8
Output
Two
Signals
at
Once
D
HQ~
f~
If your
HP
8904A
also has four channels (Option
Ol),
you can use
the additional channels
(C
and
D)
to modulate
or
sum with the
two
output signals. In this demonstration, you will configure the
HP
8904A
to modulate Channel
A
using Channel
B
and output the
modulated signal at Output
Port
1.
You will then sum Channels
C
and
D
and output the resulting signal at Output
Port
2.
and
Sum
Off
Note
This demonstration assumes that the parameters for Channels
A
and
B
are configured as described in the previous demonstration,
"How
to Output a Signal at Each Port."
If
they are not, please
configure the Channels as shown in Table
4-3
before you begin
this demonstration.
Table
4-3.
Instrument Settings for Channels
A
and
B.
