4-12
Output Two Signals at Once
Things to

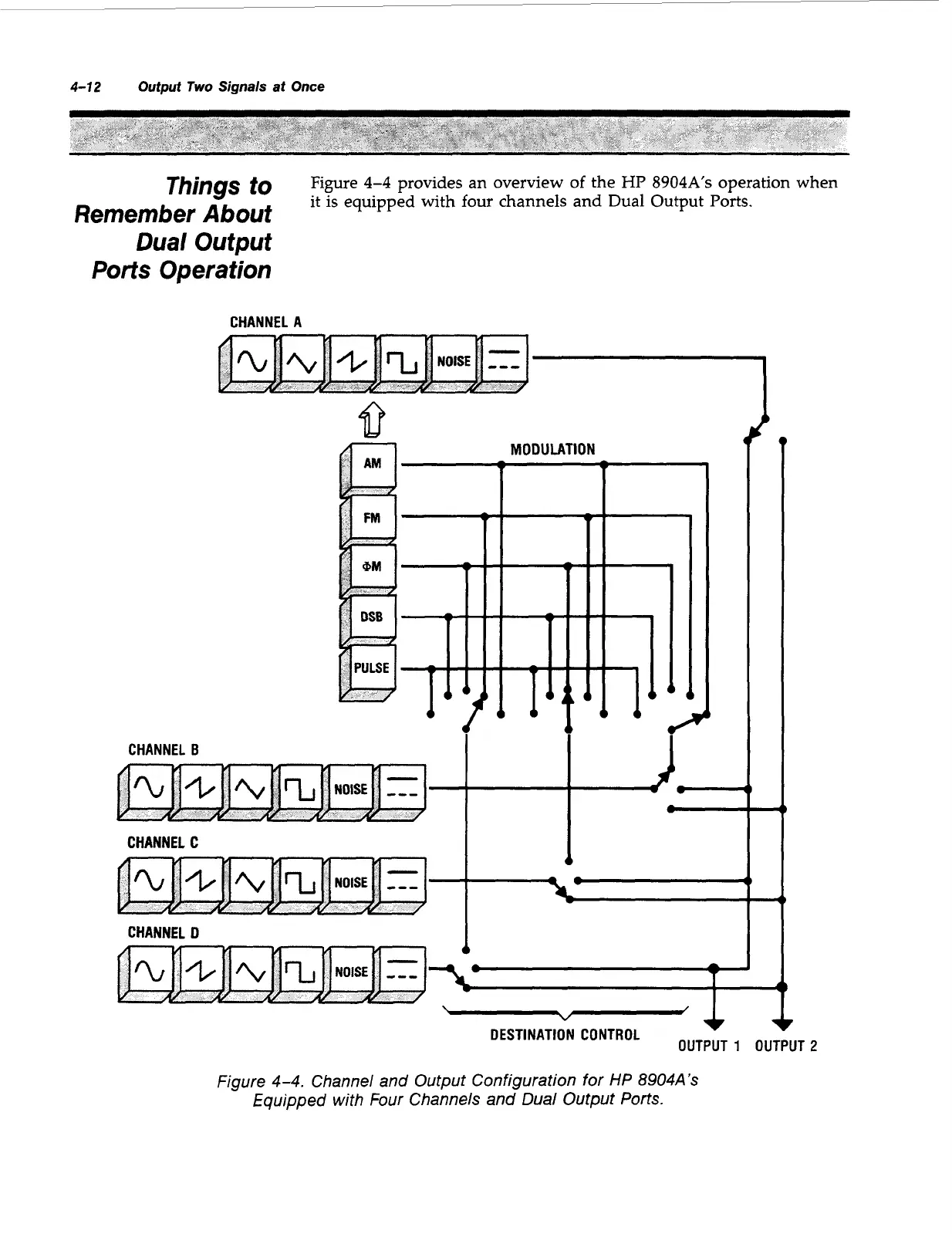

Figure 4-4 provides an overview of the HP 8904A‘s operation when
it is equipped with four channels and Dual Output Ports.
Remember About
Dual Output
Ports Operation
CHANNEL A
A H n n n 1
CHANNEL B
MODULATION
1y 1y1 1y
I I I
CHANNEL C I I I
CHANNEL D I I
I
i
OUTPUT 1 OUTPUT 2
DESTINATION CONTROL
Figure 4-4. Channel and Output Configuration for HP 8904A’s
Equipped with Four Channels and Dual Output Ports.
