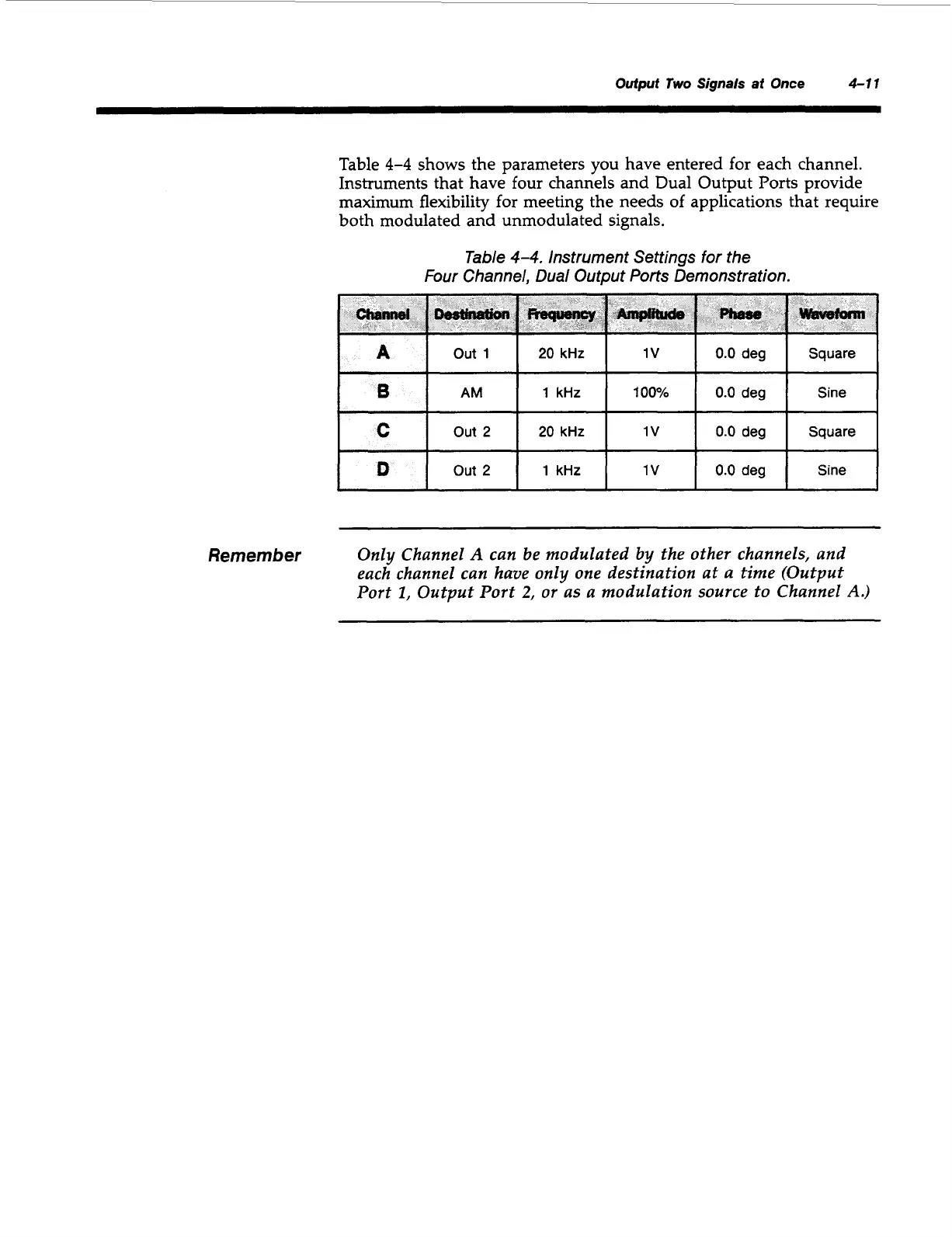

HP 8904A - Page 178

Output Two Signals af Once
4-1 1
A
B
C
D
c
Table 4-4 shows the parameters you have entered for each channel.
Instruments that have four channels and Dual Output Ports provide
maximum flexibility
for meeting the needs of applications that require
both modulated and unmodulated signals.
Square
out 1 20 kHz 1v 0.0 deg
AM 1 kHz
100% 0.0 deg Sine
out 2
20 kHz 1v 0.0 deg
Square
out 2
1 kHz 1v 0.0 deg Sine
Table 4-4. Instrument Settings for the
Four Channel, Dual Output Forts Demonstration.
Remember
Only Channel A can be modulated by the other channels, and
each channel can have only one destination at a time (Output
Port
2, Output Port 2, or as a modulation source to Channel A.)
