Model
8904A
Performance Tests
PHASE
1
deg
Lower
Actual
Upper
26.4
-
29.2
264
-
292
2640
-
2 920
26400
-
29200
8.

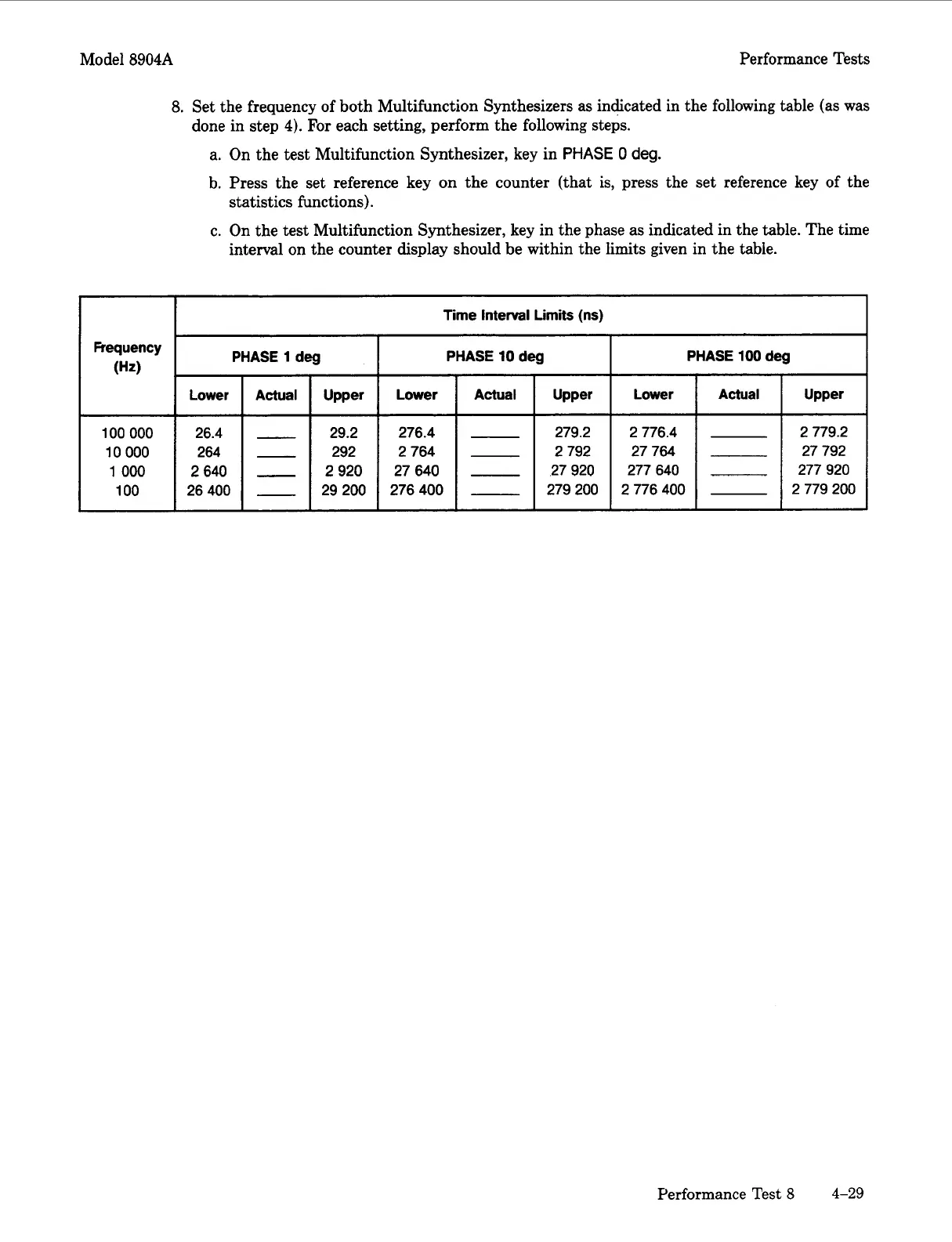

Set the frequency of both Multifunction Synthesizers as indicated in the following table (as was
done in step
4).
For
each setting, perform the following steps.
a. On the
test
Multifunction Synthesizer, key in
PHASE
0
deg.
b.
Press the set reference key on the counter (that is, press the set reference key of the
c.
On the test Multifunction Synthesizer, key in the phase as indicated in the table. The time
statistics functions).
interval on the counter display should be within the limits given in the table.
PHASE
10
deg
PHASE
100
deg
Lower
Actual
Upper Lower Actual Upper
276.4
-
279.2 2 776.4
-
2 779.2
2764
-
2792 27764
-
27792
27640
-
27920
277640
-
277920
276400
-
279200
2776400
-
2779200
Time Interval Limits (ns)
Frequency
(Hz)
100
000
10
000
1
000
100
Performance Test
8
4-29
