HP 8904A - Page 257

Performance Tests
Model 8904A

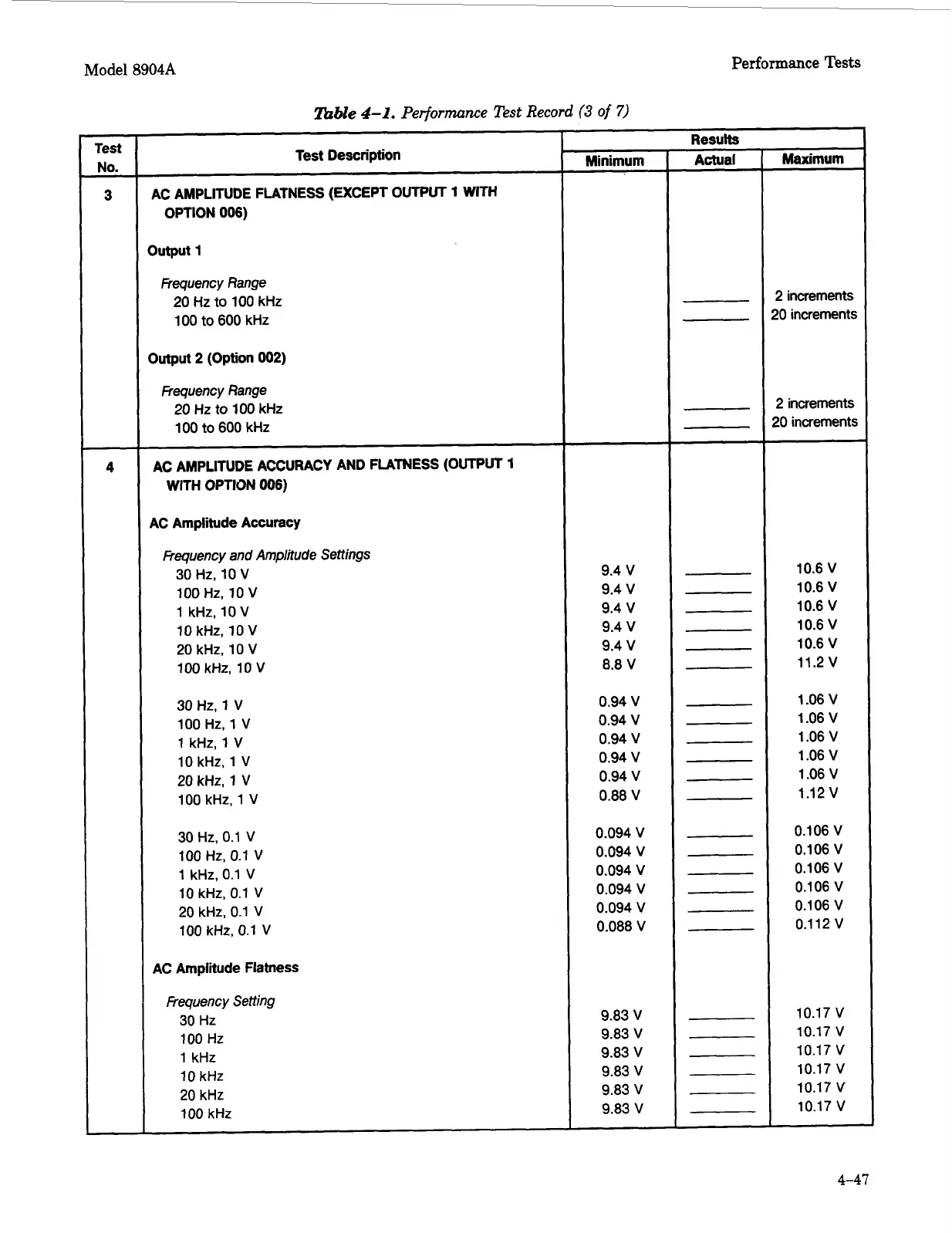

nble 4-1. Performance Test Record (3 of 7)
7
Test
No.
3
-
-
4
-
Test Description
AC AMPLITUDE FLATNESS (EXCEPT OUTPUT 1 WITH
OPTION 006)
output 1
Frequency Range
20 Hz to 100 kHz
100
to 600 kHz
Output 2 (Option 002)
Frequency Range
20 Hz to 100 kHz
100
to 600 kHz
~
AC AMPLITUDE ACCURACY AND FLATNESS (OUTPUT 1
WITH OPTION 006)
AC Amplitude Accuracy
Frequency and Ampljtude Settings
30 Hz, 10 V
100 Hz, 10 V
1 kHz, 10 V
10 kHz, 10 V
20 kHz, 10 V
100 kHz, 10 V
30 Hz, 1 V
100 Hz, 1 V
1 kHz, 1 V
10 kHz, 1 V
20 kHz, 1 V
100 kHz, 1 V
30 Hz, 0.1 V
100 Hz, 0.1 V
1 kHz, 0.1 V
10 kHz, 0.1 V
20 kHz, 0.1 V
100 kHz, 0.1 V
AC Amplitude Flatness
Requency
Setting
30 Hz
100 Hz
1 kHz
10 kHz
20 kHz
100 kHz
Results
Minimum
9.4 v
9.4 v
9.4 v
9.4 v
9.4 v
8.8 V
0.94 V
0.94 V
0.94 V
0.94 V
0.94 V
0.88 V
0.094 V
0.094 V
0.094 V
0.094 V
0.094 V
0.088 V
9.83 V
9.83 V
9.83 V
9.83 V
9.83 V
9.83 V
Actual
Maximum
2 increments
20 increments
2 increments
20 increments
10.6 V
10.6 V
10.6 V
10.6 V
10.6 V
11.2 v
1.06 V
1.06 V
1.06 V
1.06 V
1.06 V
1.12 v
0.106 V
0.106 V
0.106 V
0.106 V
0.106 V
0.112 v
10.17 V
10.17 V
10.17 V
10.17 V
10.17 V
10.17 V
4-47
