Performance Tests Model 8904A

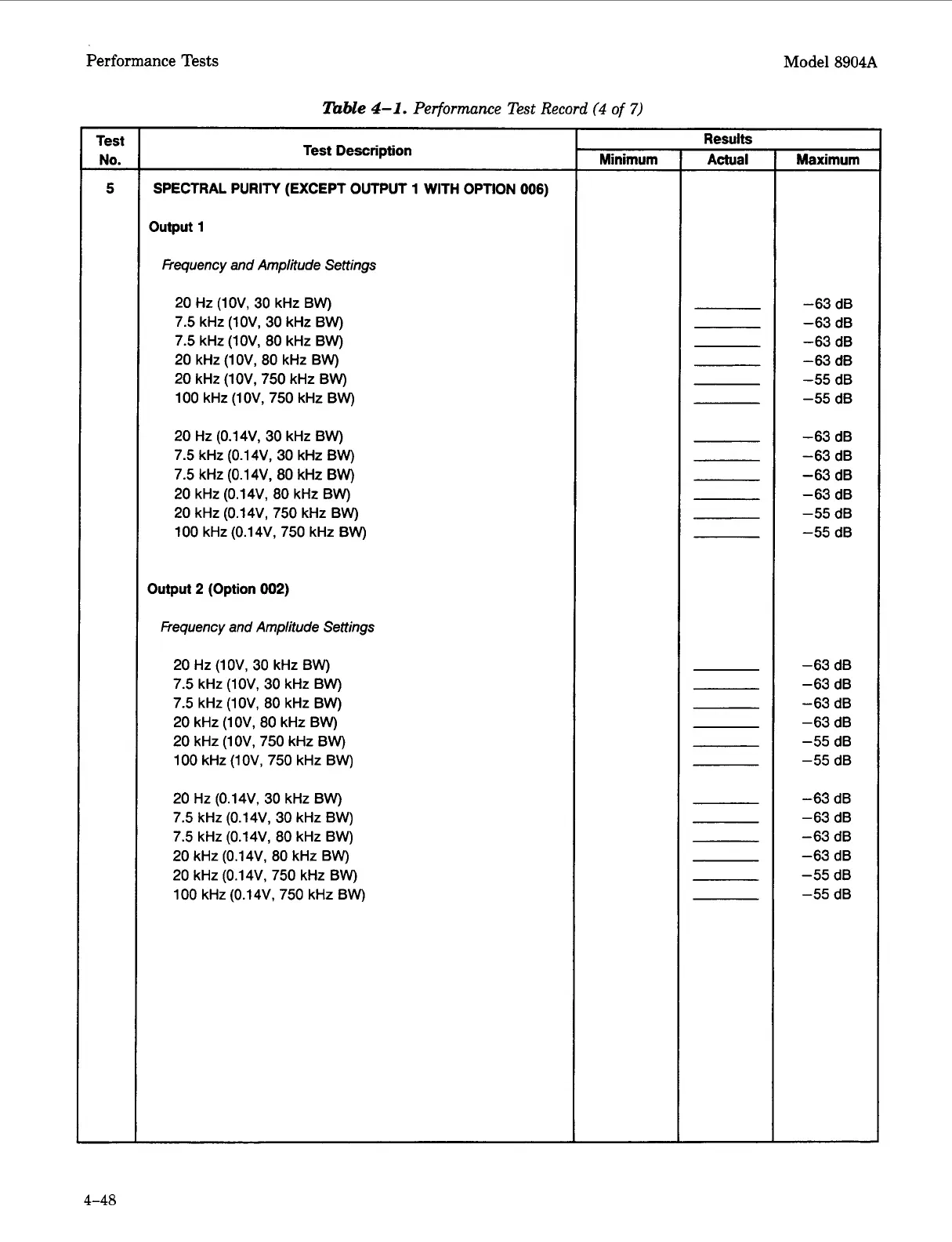

nble 4-1. Performance Test Record (4 of 7)
Test
No.
5
-
Test Description
SPECTRAL PURITY (EXCEPT OUTPUT 1 WITH OPTION 006)
output 1
Frequency and Amplitude Settings
20 Hz (lOV, 30 kHz BW)
7.5 kHz (lOV, 30 kHz BW)
7.5 kHz (lOV, 80 kHz BW)
20 kHz (lOV, 80 kHz BW)
20 kHz (lOV, 750 kHz BW)
100 kHz (lOV, 750 kHz BW)
20 Hz (0.14V, 30 kHz BW)
7.5 kHz (0.14V, 30 kHz BW)
7.5 kHz (0.14V, 80 kHz BW)
20 kHz (0.14V, 80 kHz BW)
20 kHz (0.14V, 750 kHz BW)
100 kHz (0.14V, 750 kHz BW)
Output 2 (Option 002)
Fiequency and Amplitude Settings
20 Hz (lOV, 30 kHz BW)
7.5 kHz (lOV, 30 kHz BW)
7.5 kHz (lOV, 80 kHz BW)
20 kHz (lOV, 80 kHz BW)
20 kHz (lOV, 750 kHz BW)
100 kHz (lOV, 750 kHz BW)
20 Hz (0.14V, 30 kHz BW)
7.5 kHz (0.14V, 30 kHz BW)
7.5 kHz (0.14V, 80 kHz BW)
20 kHz (0.14V, 80 kHz BW)
20 kHz (0.14V, 750 kHz BW)
100 kHz (0.14V, 750 kHz BW)
Minimum
Results
Actual Maximum
-63 dB
-63 dB
-63 dB
-63 dB
-55 dB
-55 dB
-63 dB
-63 dB
-63 dB
-63 dB
-55 dB
-55 dB
-63 dB
-63 dB
-63 dB
-63 dB
-55 dB
-55 dB
-63 dB
-63 dB
-63 dB
-63 dB
-55 dB
-55 dB
-48
