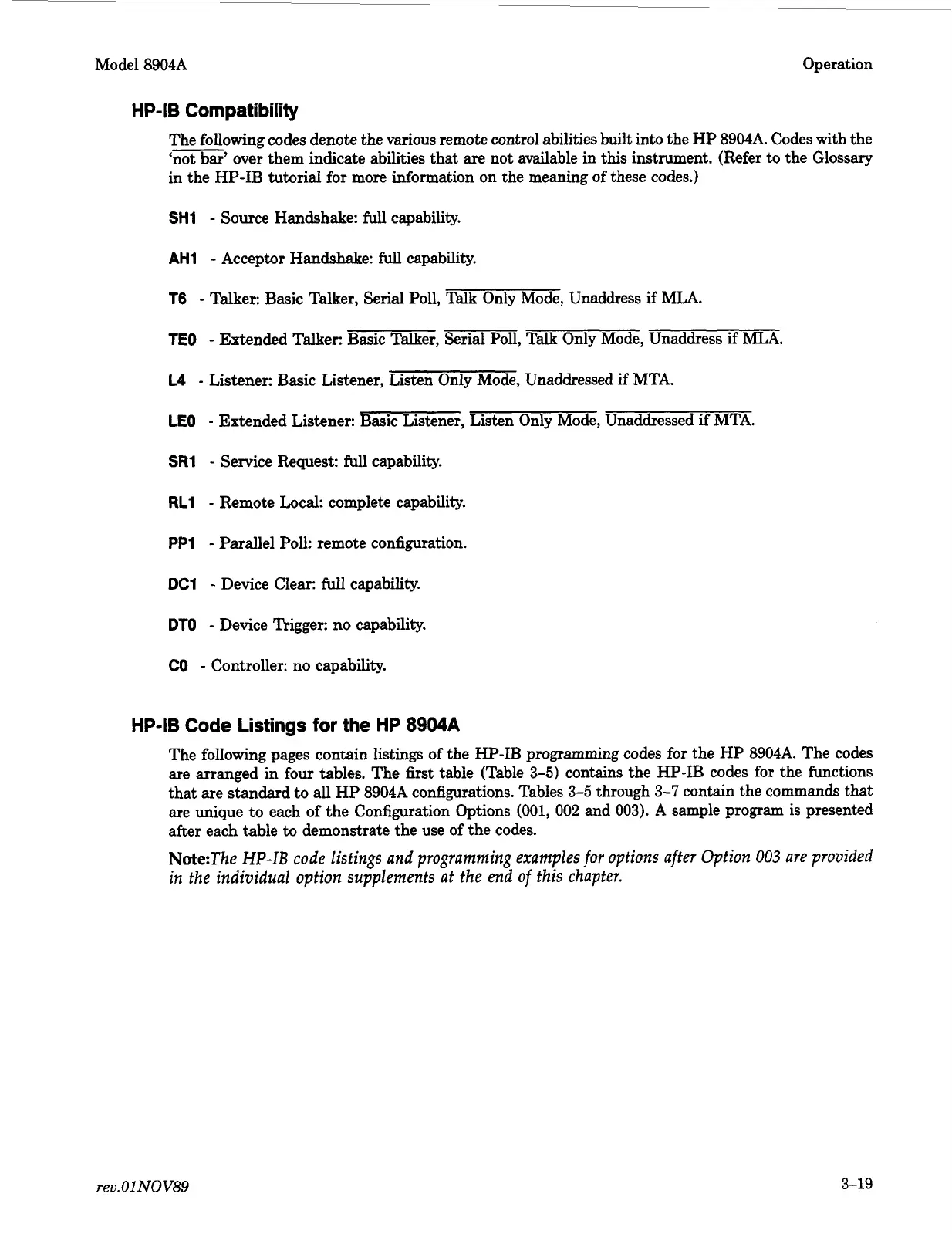

Model
8904A
Operation
HP-16 Compatibility
The following codes denote the various remote control abilities built into the HP
8904A.
Codes with the
‘not bar’ over them indicate abilities that are not available
in
this instrument. (Refer
to
the
Glossary
in the HP-IB tutorial for more information on the meaning of these codes.)
SH1
-
Source Handshake:
full
Capability.
AH1
-
Acceptor Handshake:
full
capability.
T6
-
Talker: Basic Talker, Serial
Poll,
Talk
Only Mode, Unaddress
if
MLA.
TEO
-
Extended Talker: Basic Talker, Serial Poll, Talk Only Mode, Unaddress
if
MLA.
L4
-
Listener: Basic Listener, Listen Only Mode, Unaddressed
if
MTA.
LEO
-
Extended Listener: Basic Listener, Listen Only Mode, Unaddressed
if
MTA.
SR1
-
Service Request:
full
capability.
RL1
-
Remote Local. complete capability.
PP1
-
Parallel Poll: remote configuration.
DC1
-
Device Clear: full capability.
DTO
-
Device Trigger: no capability.
CO
-
Controller: no capability.
HP-I8 Code
Listings
for
the HP
8904A
The following pages contain listings of the HP-IB programming codes for the HP
8904A.
The codes
are arranged in four tables. The first table (Table
3-5)
contains the HP-IB codes for the functions
that are standard to all HP
8904A
configurations. Tables
3-5
through
3-7
contain the commands that
are unique to each of the Configuration Options
(001,
002
and
003).
A
sample program is presented
after each table to demonstrate the use of the codes.
Note:The HP-IB code listings and programming examples
for
options after Option
003
are provided
in the individual option supplements at the end
of
this chapter.
rev.OlNOV89
3-19
