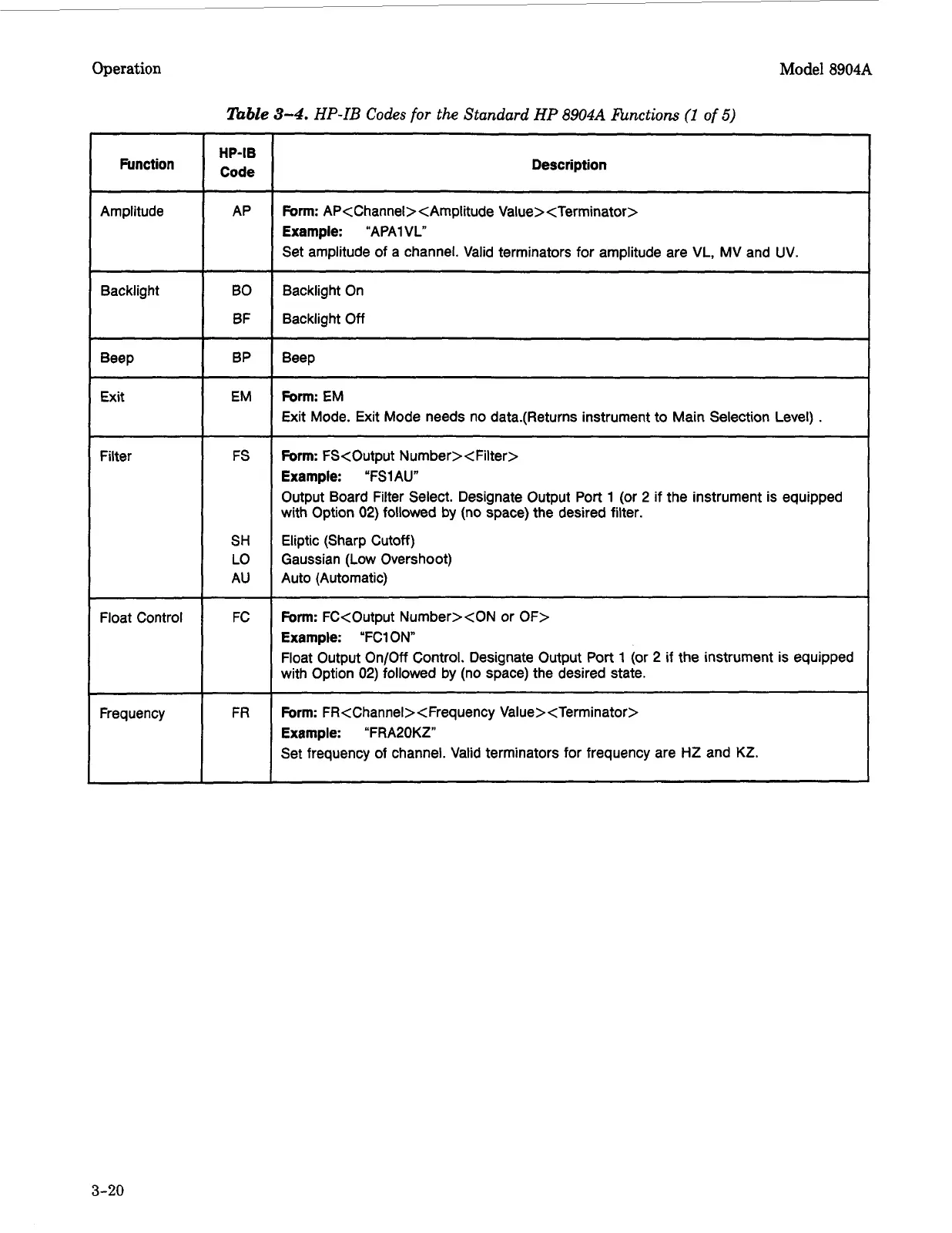

Operation
Model
8904A
Function
Amplitude
Backlight
Beep
Exit
Filter
Float Control
Frequency
lbble
3-4.
HP-IB
Codes for the Standard
HP
8904A
finctions
(1
of
5)
HP-IE
Code
AP
BO
BF
BP
EM
FS
SH
LO
AU
FC
FR
Description
Form:
AP<Channel><Amplitude Value><Terminator>
Example:
“APA1 VL“
Set amplitude
of
a channel. Valid terminators for amplitude are VL, MV and UV
Backlight On
Backlight Off
Beep
~
Form:
EM
Exit Mode. Exit Mode needs no data.(Returns instrument to Main Selection Level) .
Form:
FS<Output Number><Filter>
Example:
“FS1 AU”
Output Board Filter Select. Designate Output Port 1 (or 2
if
the instrument is equipped
with Option 02) followed
by
(no space) the desired filter.
Eliptic (Sharp Cutoff)
Gaussian (Low Overshoot)
Auto (Automatic)
Form: FC<Output Number><ON or OF>
Example:
“FC1 ON”
Float Output On/Off Control. Designate Output
Port
1
(or 2
if
the instrument is equipped
with Option
02)
followed by (no space) the desired state.
Form:
FR<Channel><Frequency Value><Terminator>
Example:
“FRAPOKZ”
Set frequency of channel. Valid terminators for frequency are HZ and
KZ.
3-20
