HP Digital Sender Flow 8500 fn2 - Page 98

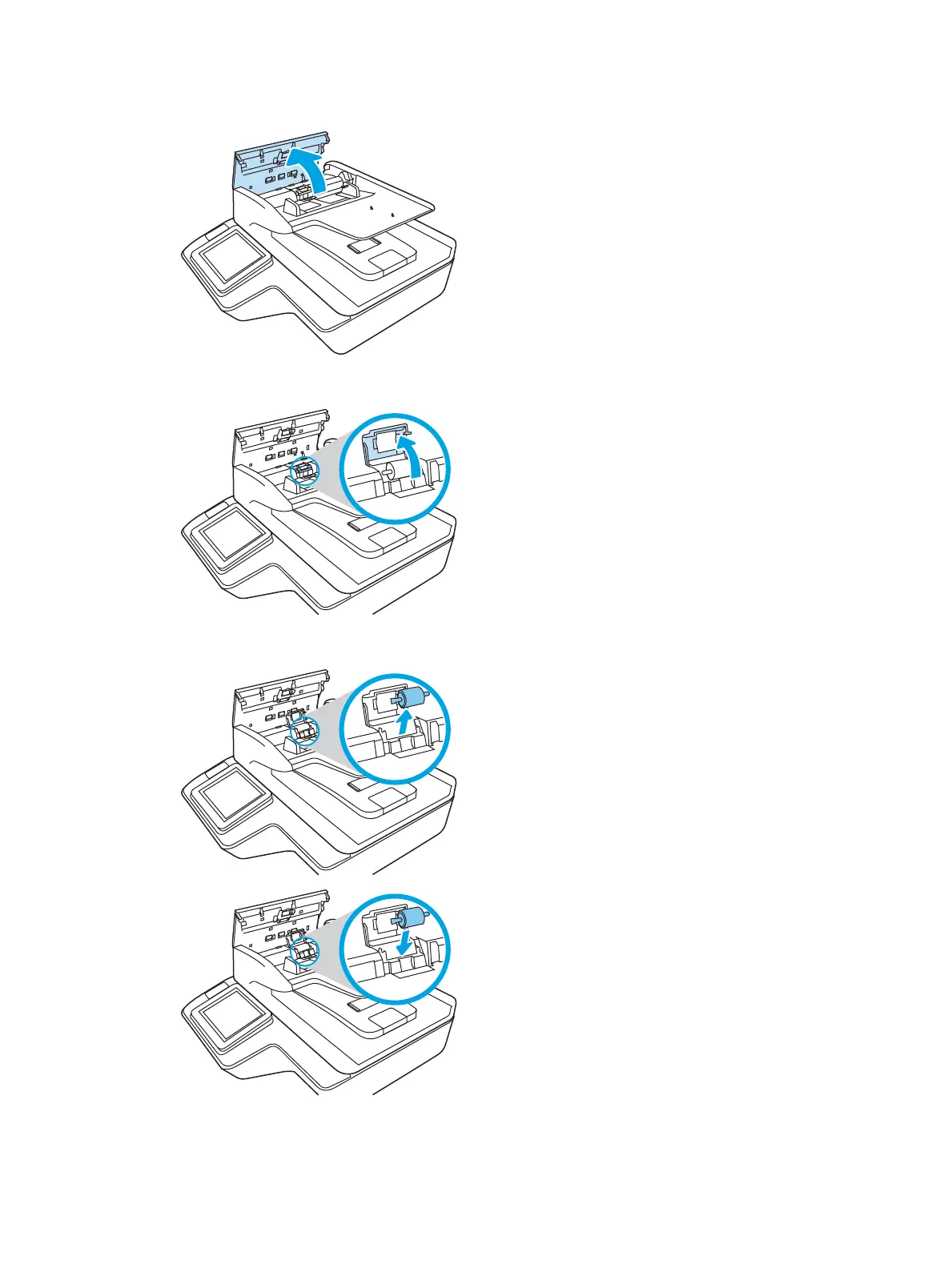

2. Open the ADF hatch.
3. Squeeze the tabs on the sides of the roller cover, and then lift up the roller cover to remove.
4. Remove and replace the rollers as described in the instructions included with the replacement kit.
5. Replace the roller cover, and then continue with replacing the pick up roller module.
88 Chapter 3 Care and maintenance ENWW
