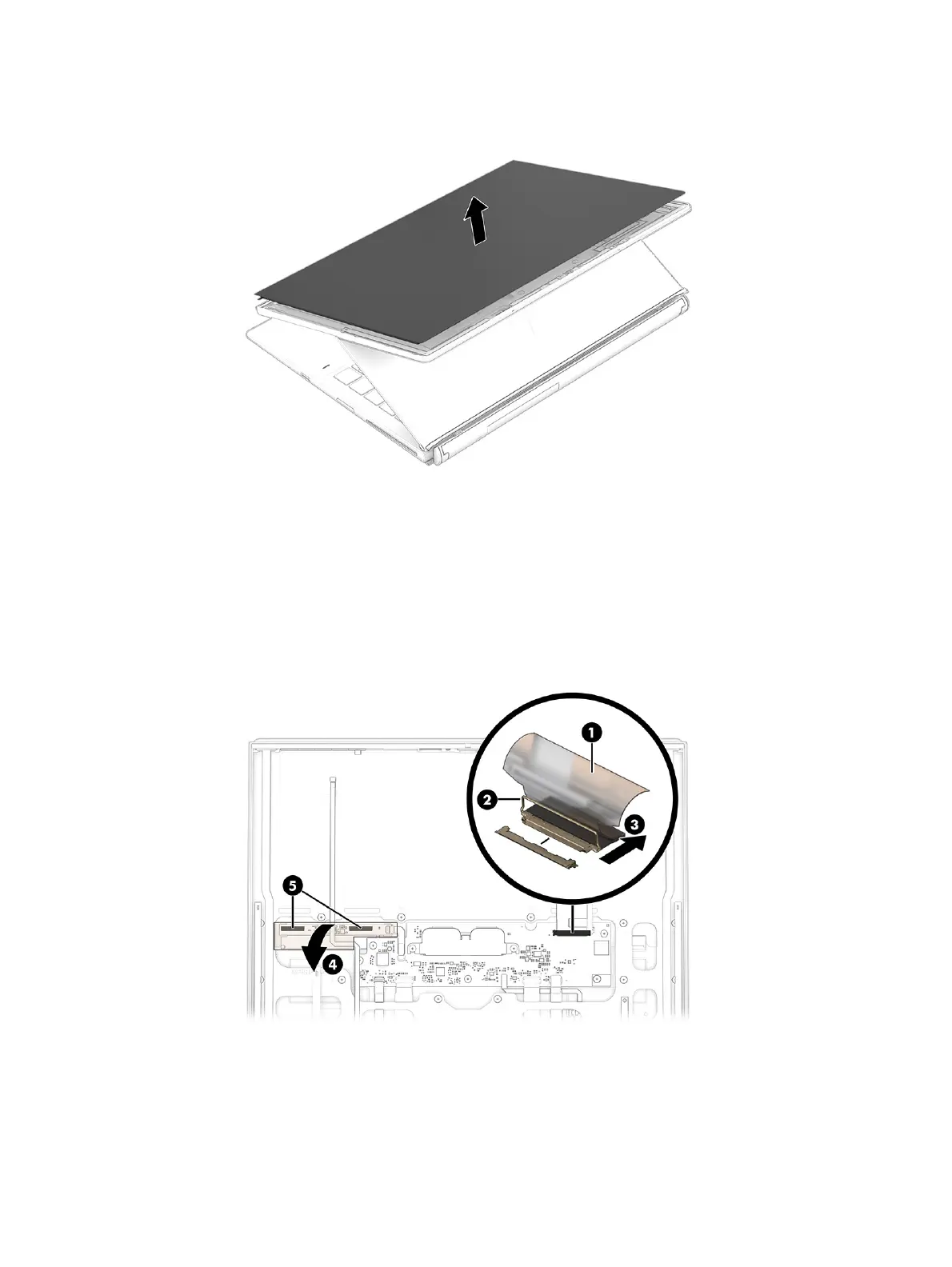

l. Separate the panel from the display and place it next to the display rear cover.
m. Disconnect the panel cables by removing the tape from the left connector (1).
n. Rotate the locking lever (2).
o. Pull the cable out of the connector (3).
p. Remove the foil tape from the right two connectors (4).
q. Disconnect the cables from the two ZIF connectors on the board (5).
Display panels are available as the following spare part numbers:
N23302-001: WUXGA, antiglare
N23304-001: WUXGA, BrightView
