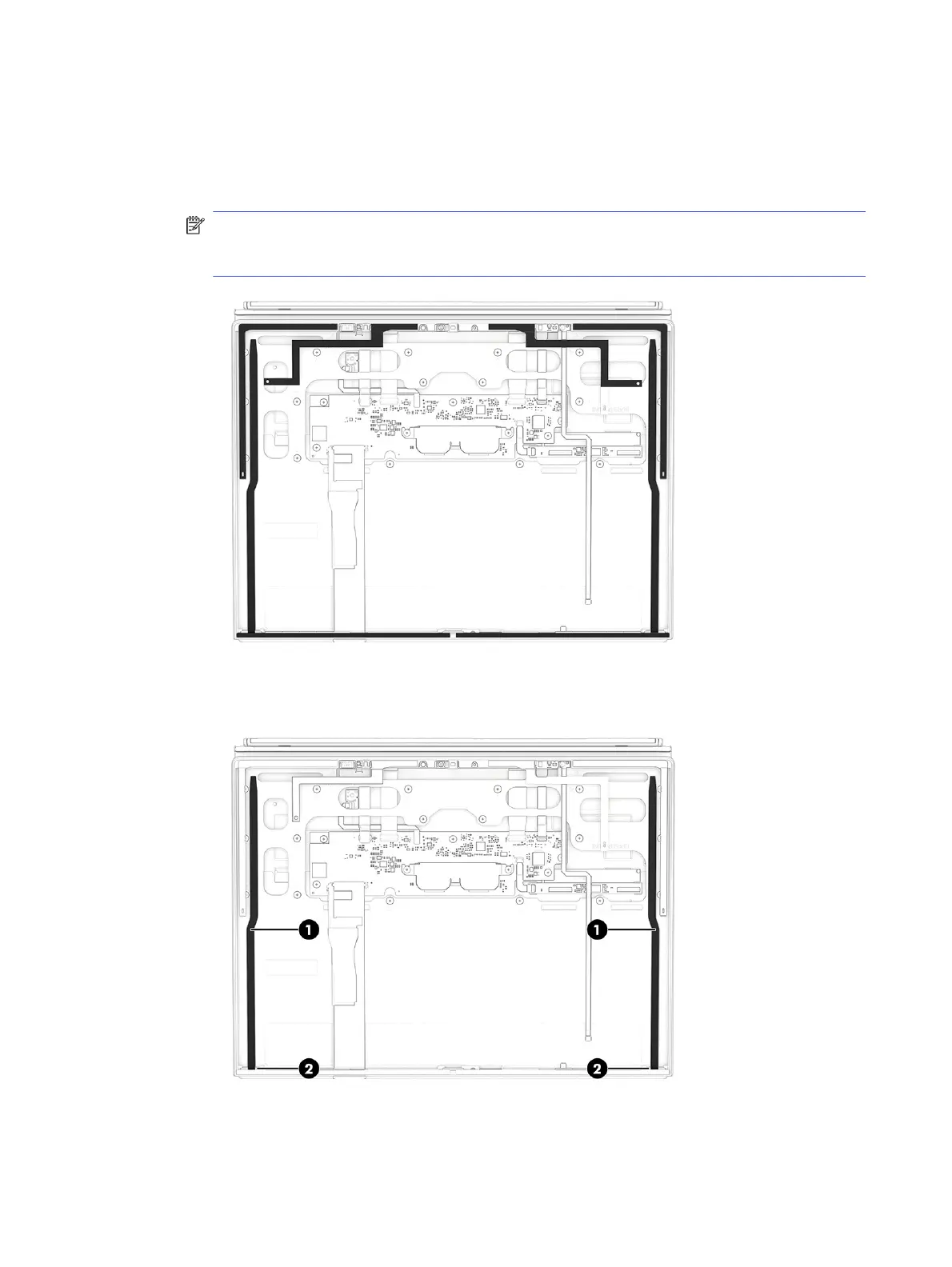

r. When installing a display panel, eight pieces of tape secure the panel. The following illustration
shows their locations.
NOTE: The tape is double sided, with plastic covering both sides. Be sure to pull the plastic
backing o the bottom when installing the tape onto the display rear cover and o the top when
installing the display panel.
s. To install a display panel, install tape at the left and right (1) locations as shown in the following
illustration. Make sure the tape protrudes enough out of the rubber plug holes on both sides (2).
64 Chapter 5Removal and replacement procedures for authorized service provider parts
