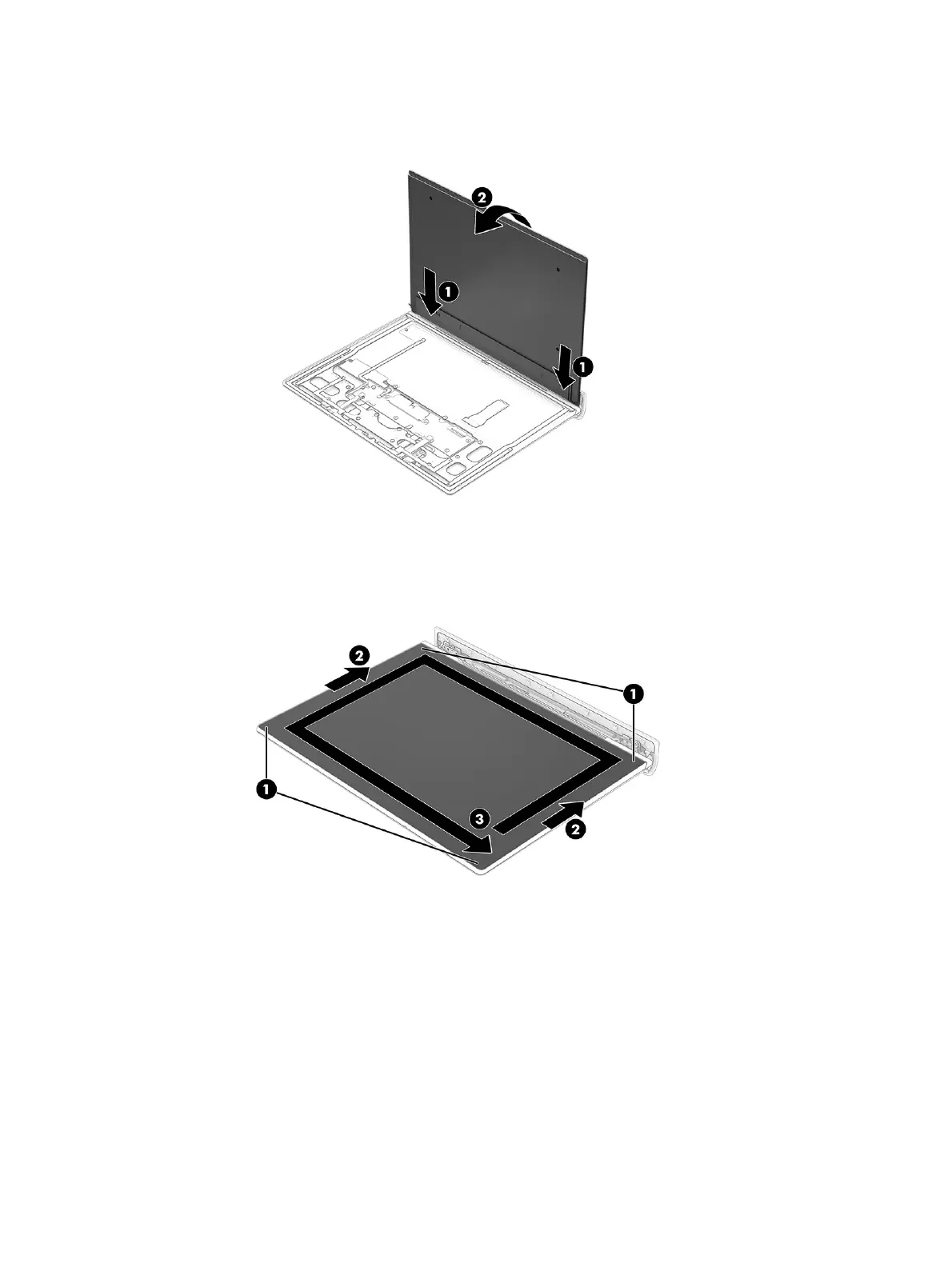

v. To install a display panel, insert the top two corners of the display panel into the display rear cover
(1), and then rotate the panel down into place in the cover (2).
w. To secure the panel to the tape, press down along the right and left sides and across the bottom of
the panel (1). Then press about an inch inside along the left and right sides of the panel (2). Finally,
press around all four edges of the panel (3).
2. To remove the touch control board from the display rear cover:
a. Disconnect the cable from the ZIF connector (1).
66
Chapter 5Removal and replacement procedures for authorized service provider parts
