Access Panel
1. Prepare the computer for disassembly (Preparation for Disassembly on page 91).
2. Disconnect the power cord from the power outlet and the computer (1), and disconnect any external
devices.
CAUTION: Regardless of the power-on state, voltage is always present on the system board as
long as the system is plugged into an active AC outlet. You must disconnect the power cord to
avoid damage to the internal components of the computer.
3. Remove the two screws that secure the access panel to the computer chassis (2).
4. Slide the access panel back about 1.3 cm (1/2 inch), then lift it away from and off the unit (3).

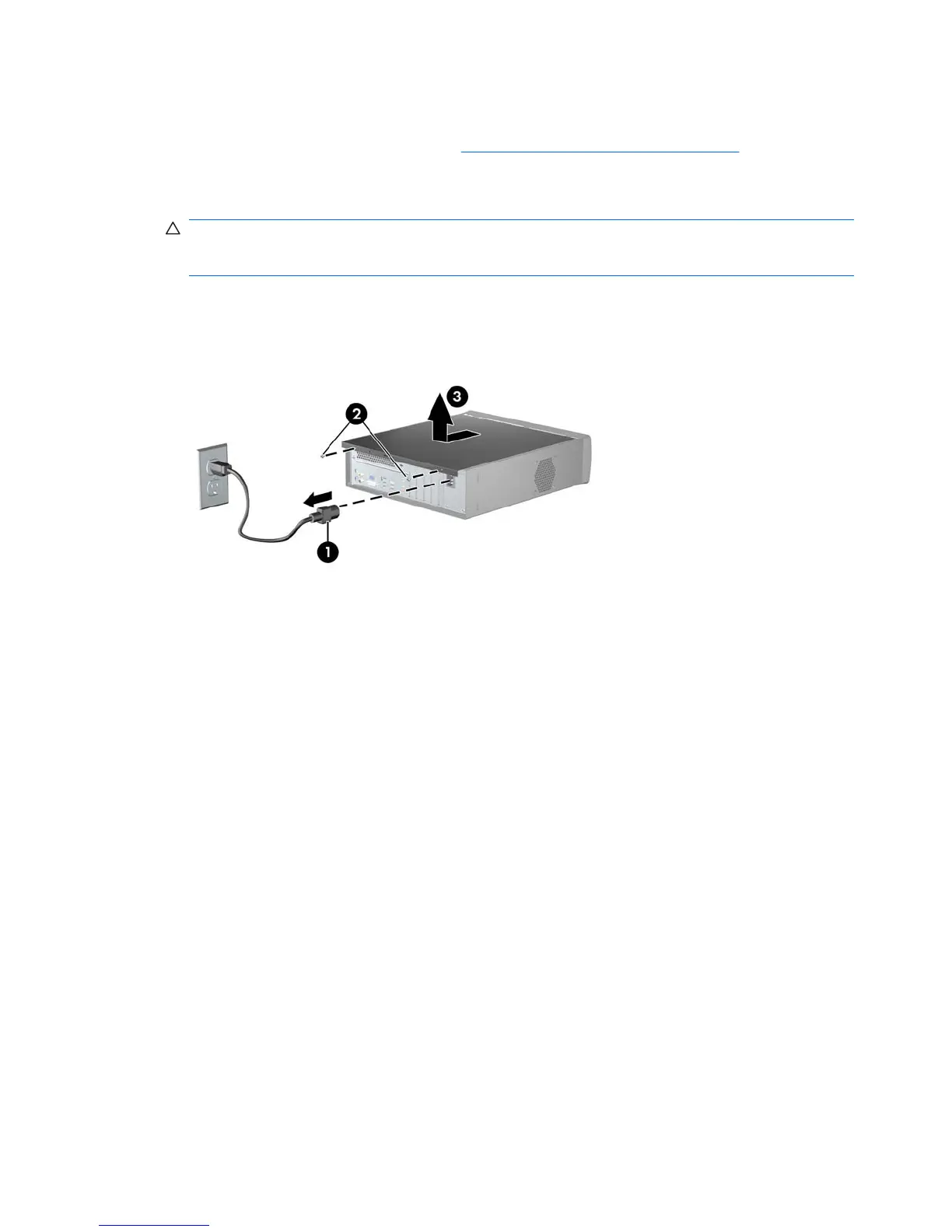

Figure 8-1 Removing the Power Cord and Access Panel
To install the access panel, reverse the removal procedure.
92 Chapter 8 Removal and Replacement Procedures Small Form Factor (SFF) Chassis
