HP dx7500 - Microtower PC User Manual

System Board Drive Connections
Refer to the following illustration and table to identify the system board drive connectors.

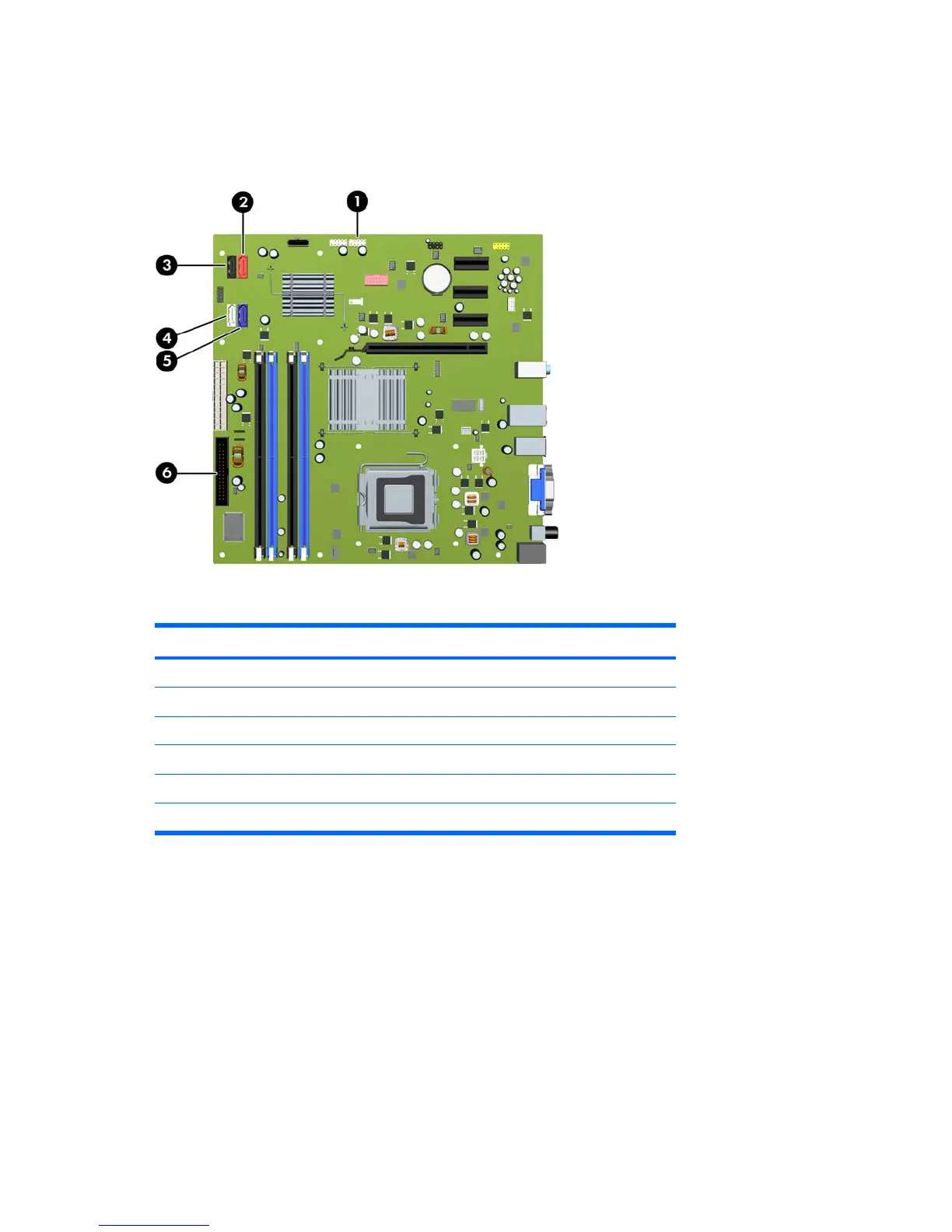

Figure 8-6 System Board Drive Connections
Table 8-1 System Board Drive Connections
No. System Board Connector System Board Label Color
1 Media Card Reader F_USB2 black
2 SATA4 SATA4 red
3 SATA5 SATA5 black
4 SATA1 SATA1 white
5 SATA0 SATA0 dark blue
6 Diskette Drive FLOPPY black
100 Chapter 8 Removal and Replacement Procedures Small Form Factor (SFF) Chassis

HP dx7500 - Microtower PC Specifications

General

Memory	Up to 8 GB DDR2 SDRAM
Form Factor	Microtower
Power Supply	300W
Processor	Intel Core 2 Duo, Intel Pentium Dual-Core, Intel Celeron
Storage	SATA hard drives up to 500 GB
Optical Drive	DVD-ROM or DVD+/-RW
Graphics	Integrated Intel Graphics Media Accelerator 3100, Optional discrete graphics cards
Audio	Integrated High Definition Audio
Network	Integrated Gigabit Ethernet
Expansion Slots	1 PCI Express x16, 2 PCI Express x1, 1 PCI
Ports	USB 2.0, serial, parallel, VGA, audio in/out
Operating System	Windows Vista Business, Windows XP Professional, FreeDOS
Weight	Approx. 22 lbs (10 kg)
