Bezel Blanks
On some models, there are bezel blanks covering the 3.5-inch and 5.25-inch external drive bays that
need to be removed before installing a drive. To remove a bezel blank:
1. Follow the instructions described in
Front Bezel on page 49.
2. Press the two retaining tabs towards the outer left edge of the bezel (1) and pull the bezel blank
inwards to remove it (2).

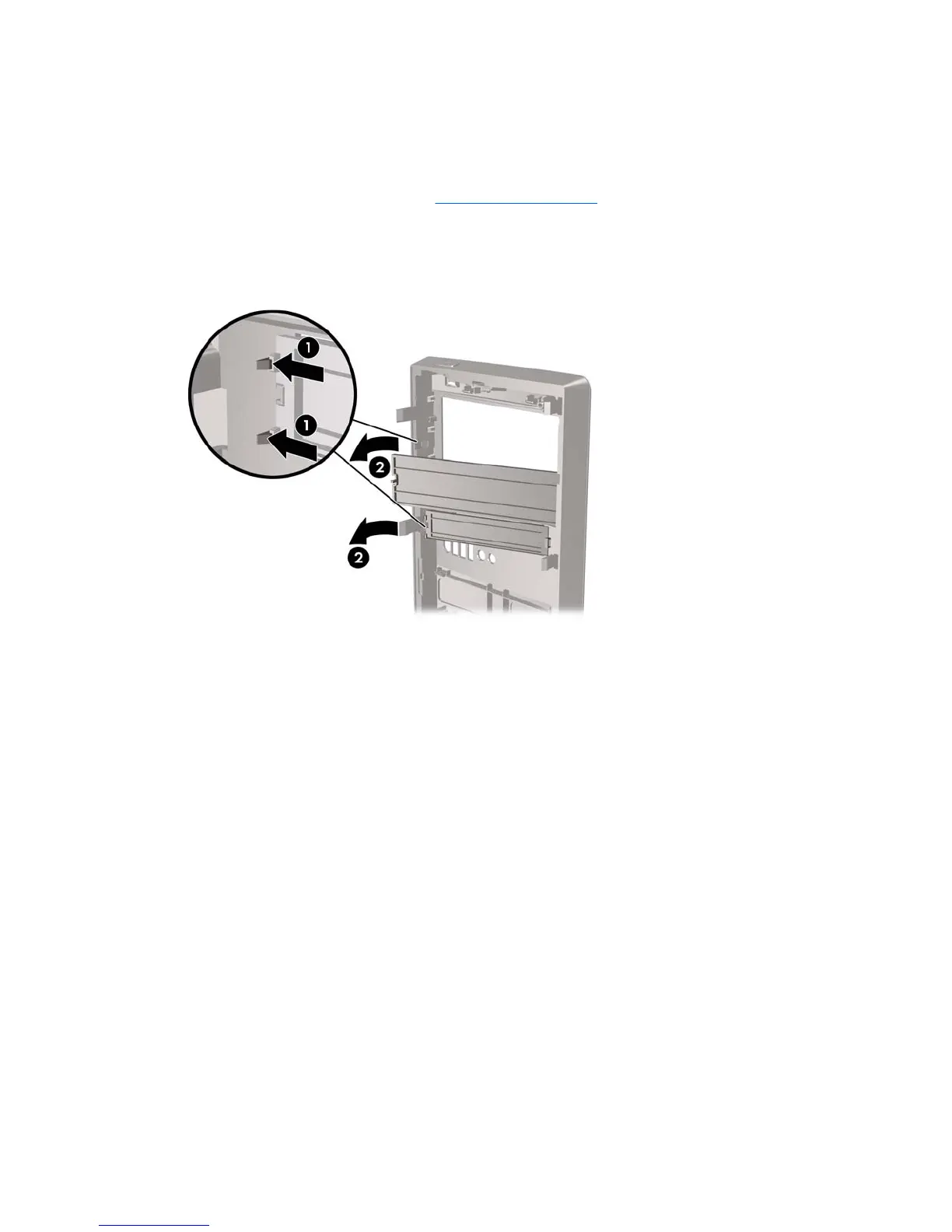

Figure 7-4 Removing a Bezel Blank
50 Chapter 7 Removal and Replacement Procedures Microtower (MT) Chassis
