Bezel Blanks
1. Prepare the computer for disassembly (Preparation for Disassembly on page 91).
2. Remove the access panel (
Access Panel on page 92).
3. Remove the front bezel (
Front Bezel on page 93).
4. While facing the inside of the front bezel, press the two retaining tabs on the right towards the outer
edge of the bezel (1) and pull the bezel blank inwards to remove it (2).

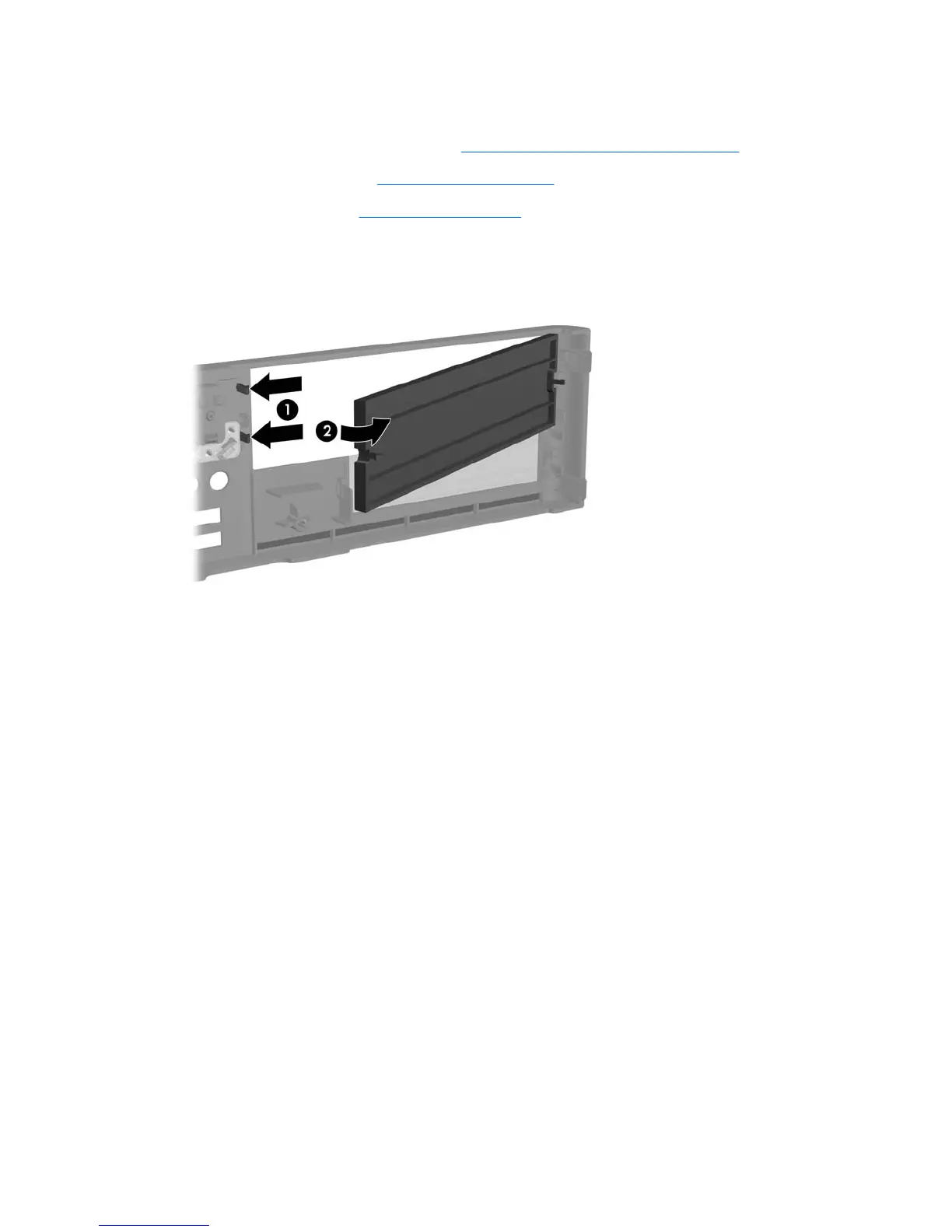

Figure 8-3 Removing a Bezel Blank
94 Chapter 8 Removal and Replacement Procedures Small Form Factor (SFF) Chassis
