Plastic Wire/Cable Fastener and Clips

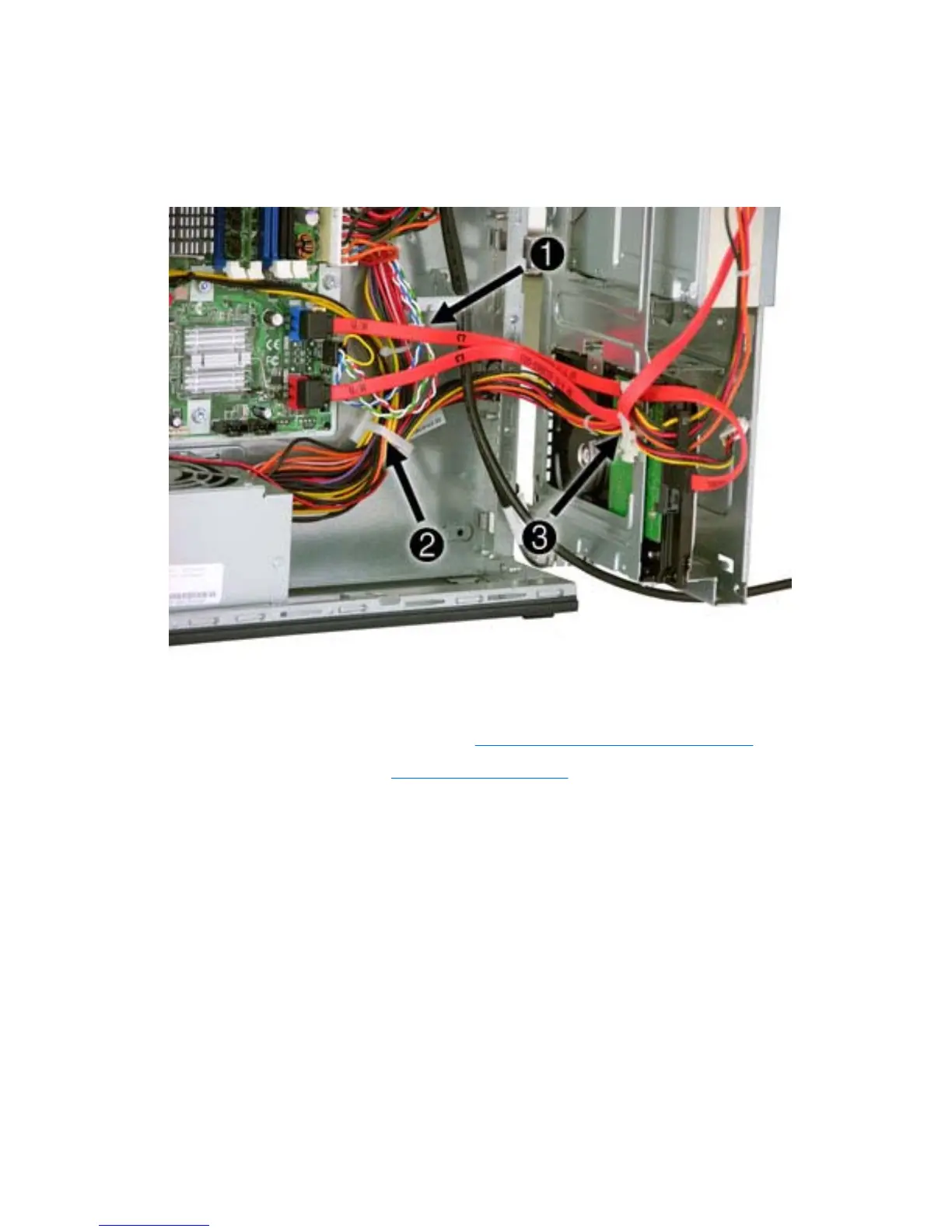

Three different plastic wire fasteners secure many of the system wires. You have to loosen these
fasteners to gain access to the wires for several computer components. See the following illustration for
proper routing of wires.
To loosen the fastener on the chassis floor:
1. Prepare the computer for disassembly (
Preparation for Disassembly on page 91).
2. Remove the access panel (
Access Panel on page 92).
3. Rotate the drive cage to its upright position.
4. To open the square fastener (1), at the notch where the fastener latch connects, pull the top of the
fastener up and outward.
5. To open the round fastener (2), twist the two ends of the fastener until the ends come apart.
6. To open the fastener mounted under the hard drive (3), pull the latch on the right side of the fastener
directly downward.
To close the fastener, reverse the loosening procedure.
Plastic Wire/Cable Fastener and Clips 125

HP dx7500 - Microtower PC Specifications

General

Memory	Up to 8 GB DDR2 SDRAM
Form Factor	Microtower
Power Supply	300W
Processor	Intel Core 2 Duo, Intel Pentium Dual-Core, Intel Celeron
Storage	SATA hard drives up to 500 GB
Optical Drive	DVD-ROM or DVD+/-RW
Graphics	Integrated Intel Graphics Media Accelerator 3100, Optional discrete graphics cards
Audio	Integrated High Definition Audio
Network	Integrated Gigabit Ethernet
Expansion Slots	1 PCI Express x16, 2 PCI Express x1, 1 PCI
Ports	USB 2.0, serial, parallel, VGA, audio in/out
Operating System	Windows Vista Business, Windows XP Professional, FreeDOS
Weight	Approx. 22 lbs (10 kg)
