HP dx7500 - Microtower PC User Manual

CAUTION: To prevent loss of work and damage to the computer or drive:
If you are inserting or removing a drive, shut down the operating system properly, turn off the computer,
and unplug the power cord. Do not remove a drive while the computer is on or in standby mode.
Before handling a drive, ensure that you are discharged of static electricity. While handling a drive, avoid
touching the connector.
Handle a drive carefully; do not drop it.
Do not use excessive force when inserting a drive.
Avoid exposing a hard drive to liquids, temperature extremes, or products that have magnetic fields
such as monitors or speakers.
If a drive must be mailed, place the drive in a bubble-pack mailer or other protective packaging and label
the package “Fragile: Handle With Care.”
System Board Drive Connections

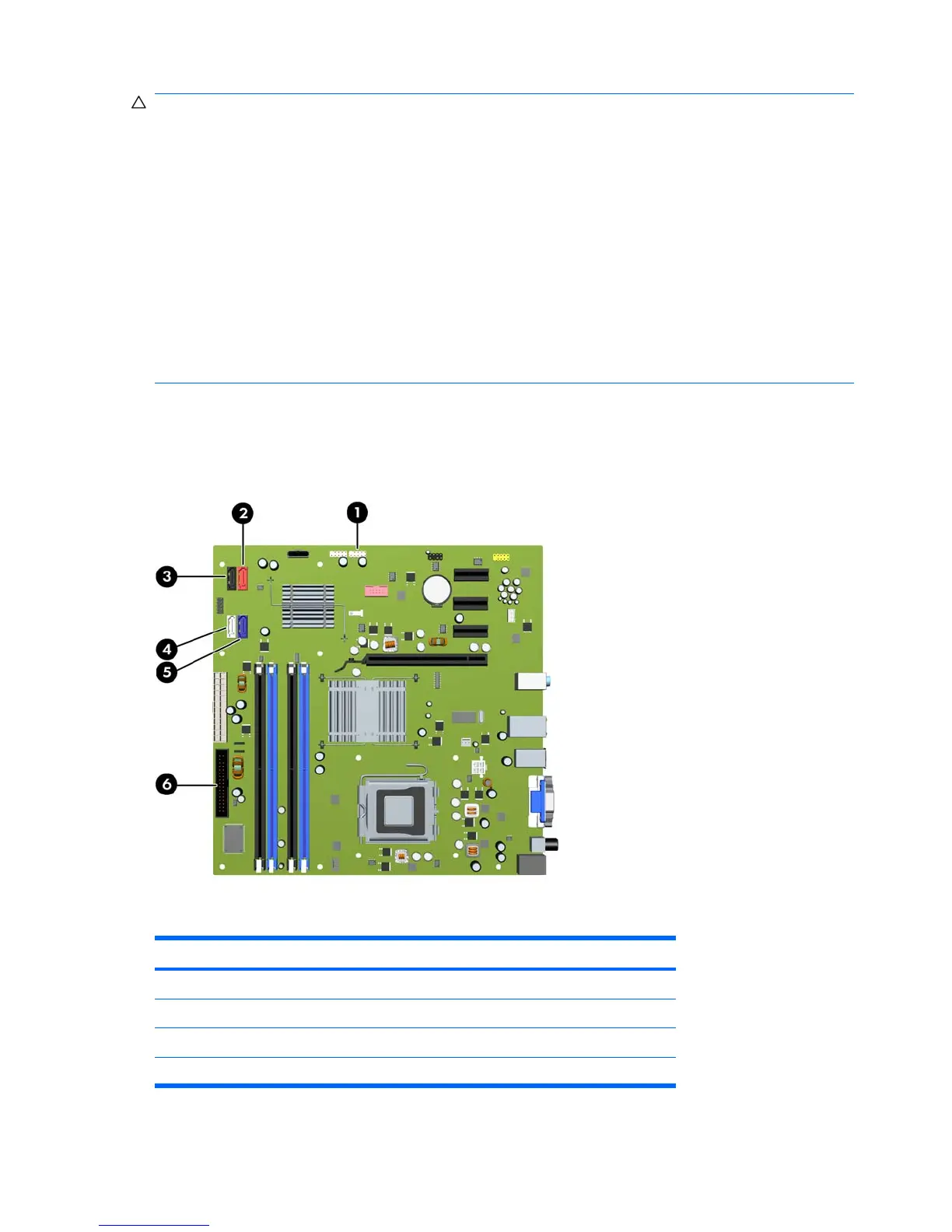

Refer to the following illustration and table to identify the system board drive connectors.
Figure 7-16 System Board Drive Connections
Table 7-3 System Board Drive Connections
No. System Board Connector System Board Label Color
1 Media Card Reader F_USB2 black
2 SATA4 SATA4 red
3 SATA5 SATA5 black
4 SATA1 SATA1 white
64 Chapter 7 Removal and Replacement Procedures Microtower (MT) Chassis

HP dx7500 - Microtower PC Specifications

General

Memory	Up to 8 GB DDR2 SDRAM
Form Factor	Microtower
Power Supply	300W
Processor	Intel Core 2 Duo, Intel Pentium Dual-Core, Intel Celeron
Storage	SATA hard drives up to 500 GB
Optical Drive	DVD-ROM or DVD+/-RW
Graphics	Integrated Intel Graphics Media Accelerator 3100, Optional discrete graphics cards
Audio	Integrated High Definition Audio
Network	Integrated Gigabit Ethernet
Expansion Slots	1 PCI Express x16, 2 PCI Express x1, 1 PCI
Ports	USB 2.0, serial, parallel, VGA, audio in/out
Operating System	Windows Vista Business, Windows XP Professional, FreeDOS
Weight	Approx. 22 lbs (10 kg)
