Heatsink assembly
1. Prepare the computer for disassembly (Preparation for Disassembly on page 47).
2. Remove the access panel (
Access Panel on page 48).
3. Lay the computer on its side with the rear facing toward you.
4. Disconnect the heatsink fan control cable from the system board.

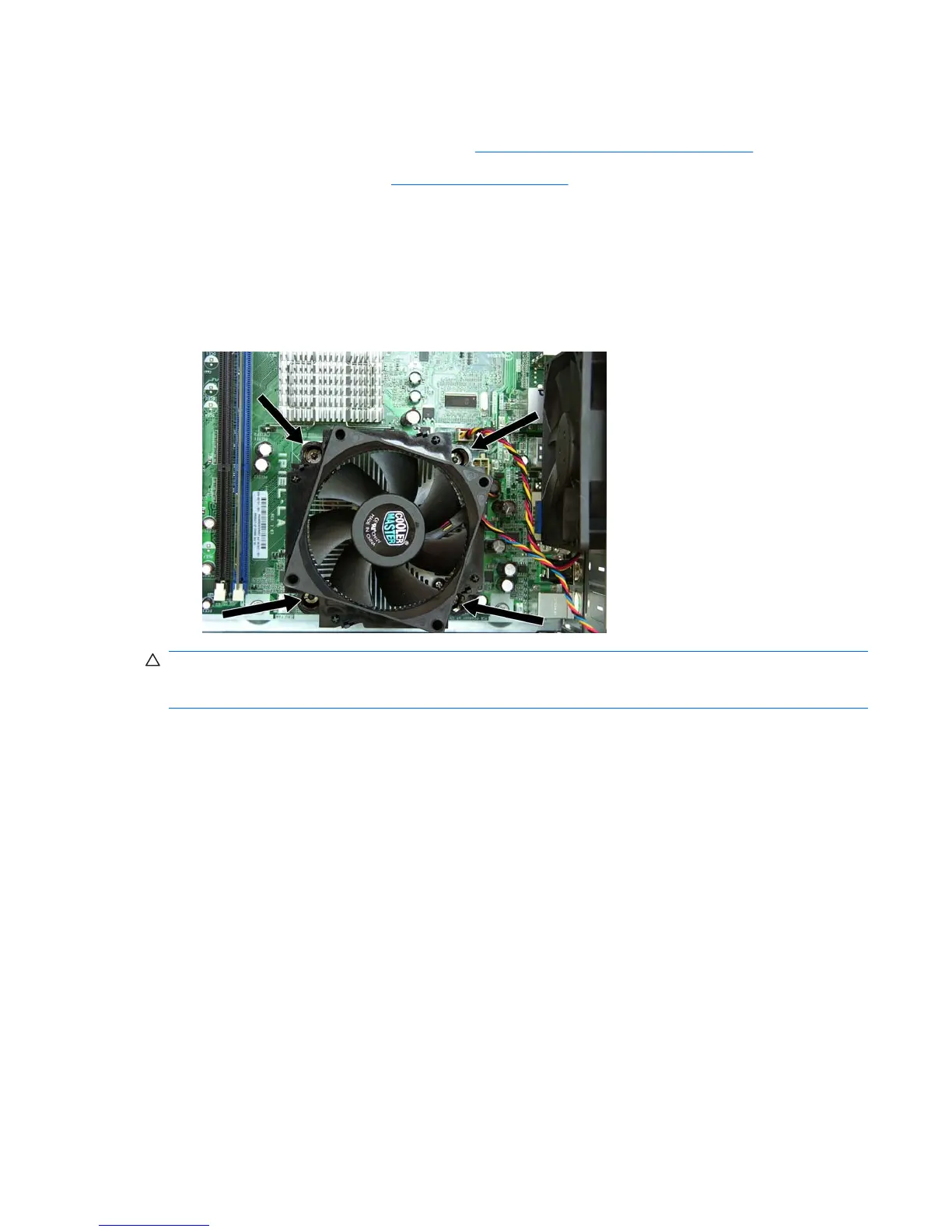

5. Loosen the four captive screws that secure the heatsink to the system board.
6. Lift the heatsink from the processor and set it on its side to keep from contaminating the work area
with thermal grease.
CAUTION: Heatsink retaining screws should be tightened in diagonally opposite pairs (as in an X) to
evenly seat the heatsink to the processor. This is especially important as the pins on the socket are very
fragile and any damage to them may require replacing the system board.
When reinstalling an existing heatsink, make sure that its bottom has been cleaned with an alcohol wipe
and fresh thermal grease has been applied to the top of the processor. New heatsinks come from the
factory with fresh thermal grease already applied.
Heatsink assembly 81

HP dx7500 - Microtower PC Specifications

General

Memory	Up to 8 GB DDR2 SDRAM
Form Factor	Microtower
Power Supply	300W
Processor	Intel Core 2 Duo, Intel Pentium Dual-Core, Intel Celeron
Storage	SATA hard drives up to 500 GB
Optical Drive	DVD-ROM or DVD+/-RW
Graphics	Integrated Intel Graphics Media Accelerator 3100, Optional discrete graphics cards
Audio	Integrated High Definition Audio
Network	Integrated Gigabit Ethernet
Expansion Slots	1 PCI Express x16, 2 PCI Express x1, 1 PCI
Ports	USB 2.0, serial, parallel, VGA, audio in/out
Operating System	Windows Vista Business, Windows XP Professional, FreeDOS
Weight	Approx. 22 lbs (10 kg)
