HP dx7500 - Microtower PC User Manual

8. Slide the drive into the drive bay (1) until the two screw holes on the left side of the drive line up
with the two screw holes on the left side of the drive cage. Secure drive by fastening two retainer
screws through the holes in the left side of the drive cage into the corresponding holes in the left
side of the drive (2).
NOTE: The diskette drive is secured in same holes as the Media Card Reader. The holes are
marked CR/FDD2.

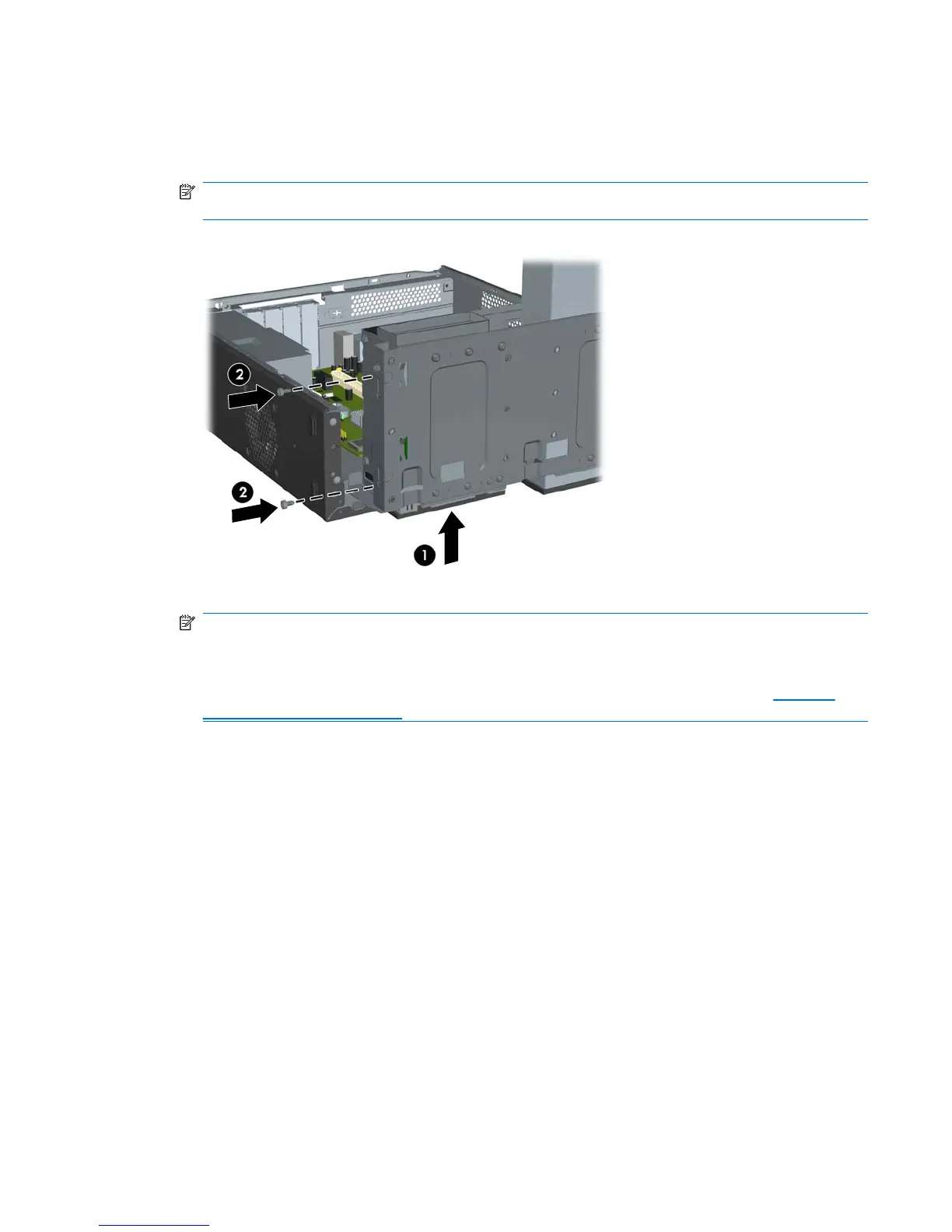

Figure 8-20 Installing a 3.5-inch Device (Media Card Reader Shown)
NOTE: The drive cage screw holes for each type of drive are labeled “CR” for media card reader
or “FDD” for diskette drive.
Extra retainer screws are provided on the front of the chassis under the hard drive cage. The M3
metric retainer screws for diskette drives or media card readers are black. Refer to
Installing
Additional Drives on page 63 for an illustration of the retainer screws location.
Drives 109

HP dx7500 - Microtower PC Specifications

General

Memory	Up to 8 GB DDR2 SDRAM
Form Factor	Microtower
Power Supply	300W
Processor	Intel Core 2 Duo, Intel Pentium Dual-Core, Intel Celeron
Storage	SATA hard drives up to 500 GB
Optical Drive	DVD-ROM or DVD+/-RW
Graphics	Integrated Intel Graphics Media Accelerator 3100, Optional discrete graphics cards
Audio	Integrated High Definition Audio
Network	Integrated Gigabit Ethernet
Expansion Slots	1 PCI Express x16, 2 PCI Express x1, 1 PCI
Ports	USB 2.0, serial, parallel, VGA, audio in/out
Operating System	Windows Vista Business, Windows XP Professional, FreeDOS
Weight	Approx. 22 lbs (10 kg)
