Table 1-1 Rear and side components and their descriptions (continued)
Component Function
(11) RJ-45 (network) jack Connects a network cable.
(12) USB SuperSpeed ports (2) Connect USB cables to peripheral devices, such as a keyboard,
mouse, or USB hard drive.
NOTE: When HDMI or DP input is active, the monitor is in monitor mode. When USB Type-C Alt Mode is active, the
monitor is in dock mode.

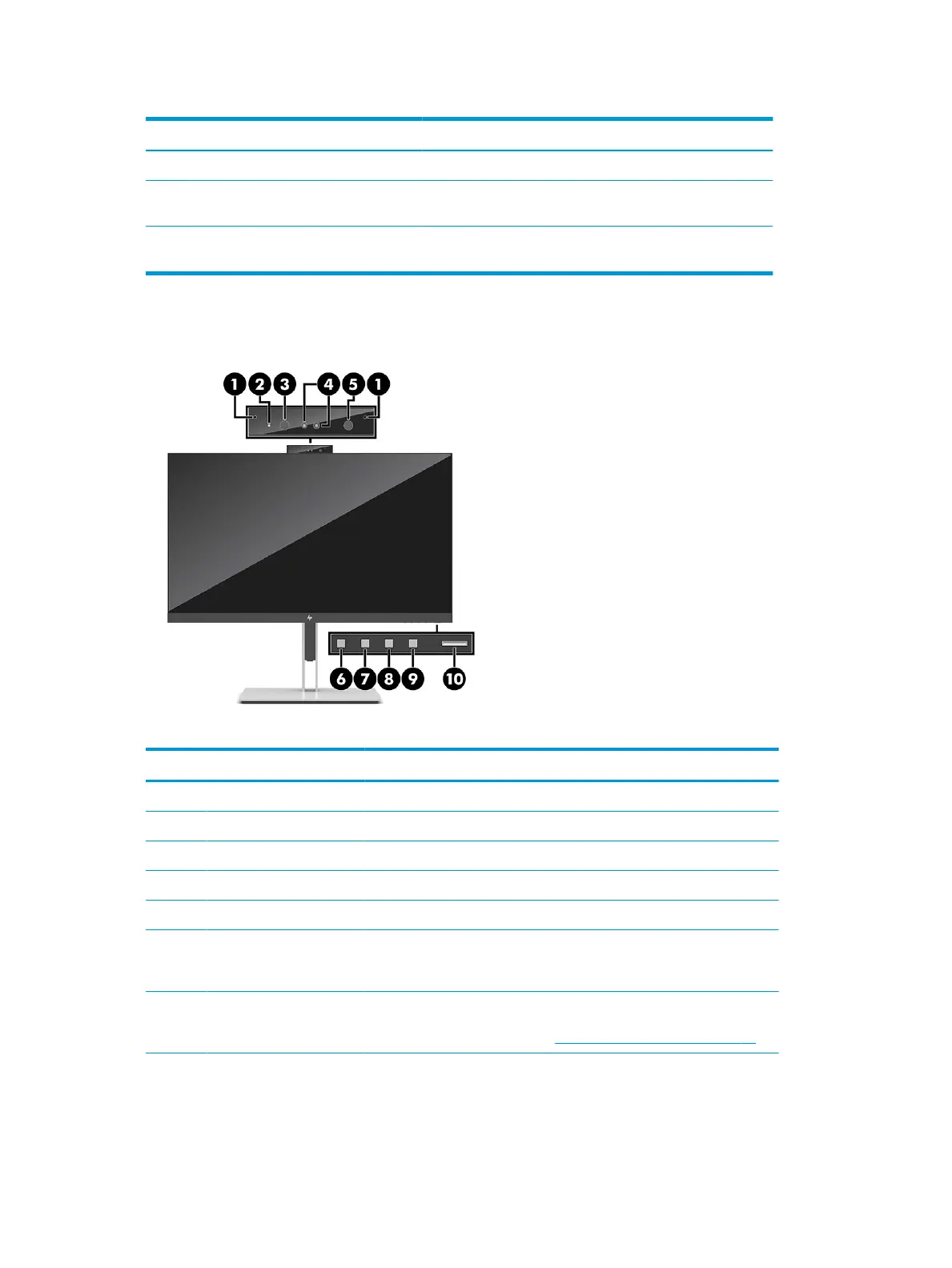

Front components
Table 1-2 Front components and descriptions
Component Function
(1) Microphones Allow you to participate in a video conference.
(2) Camera light On: Camera is in use.
(3) RGB lens Transmits your image in a video conference.
(4) IR lights Not visible through IR transmissive ink.
(5) IR lens Transmits your image in a video conference.
(6) Menu button Press to open the OSD menu, select a menu item from the OSD, or close the
OSD menu. An indicator is activated above the Menu button when the OSD
menu is open.
(7–9) OSD buttons
(assignable)
When the OSD menu is open, press the buttons to navigate through the
menu. The function light icons indicate the default button functions. For a
description of these functions, see Using the function buttons on page 19.
(10) Power button (with power
light)
Monitor mode: Turns the monitor on or o.
Dock mode:
1. When the computer is o, press the button to turn on the computer.
