Mounting the mobile system to a countertop
You can use an optional countertop mounting bracket to mount the computer head unit and column to a
countertop.
NOTE: The mounting bracket requires an 80 mm (3 in) hole in the countertop. The thickness of the
countertop must be 10 mm (0.4 in) to 50 mm (2 in).
To mount the mobile system:

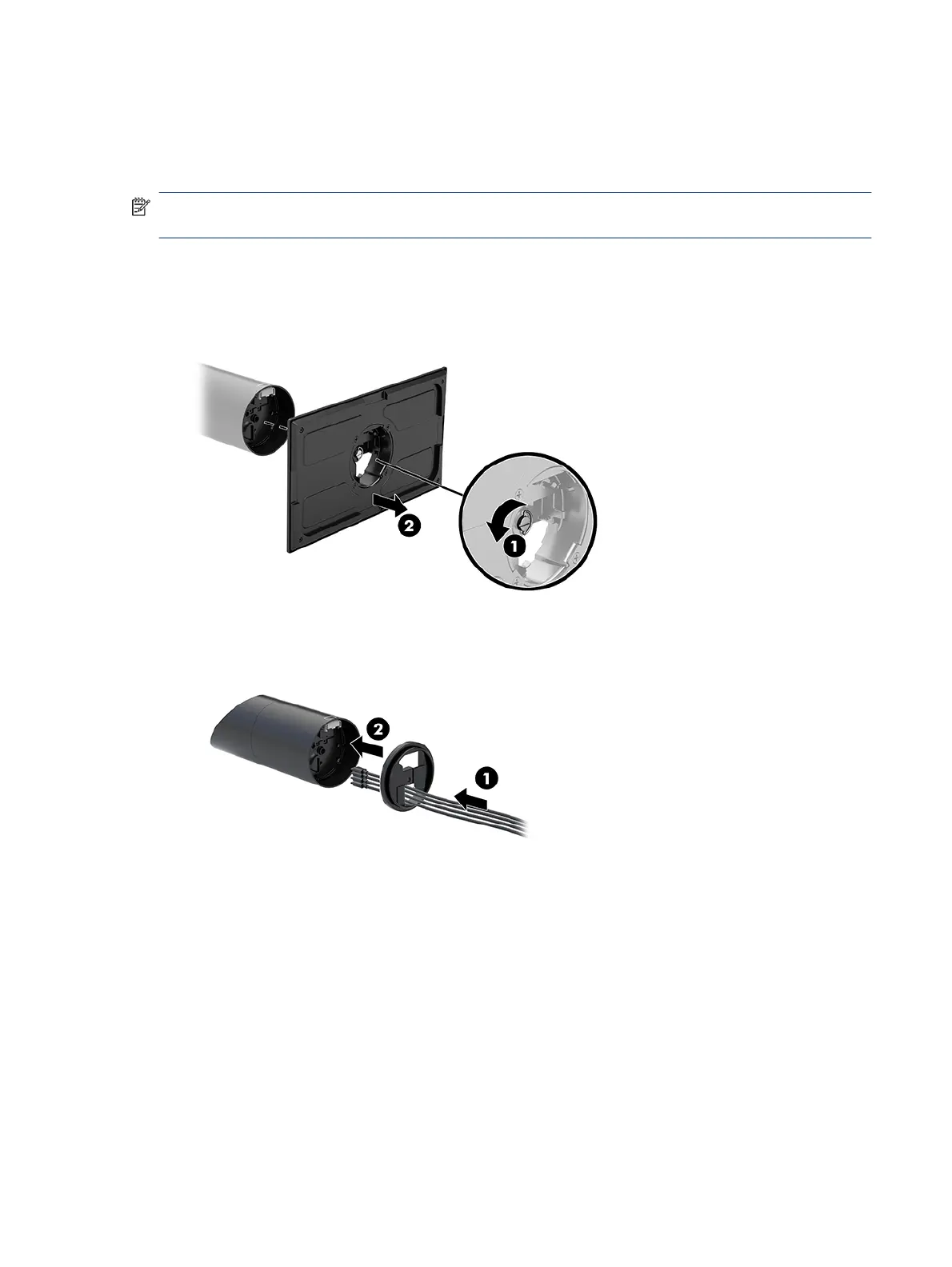

1. If the dock’s stability base is attached to the column, remove the screw on the underside of the column
(1), and then remove the base (2) from the column.
2. Route the cables through the routing hole on the top piece of the mounting bracket (1) and attach the
cables to the bottom of the column (2).
Mounting the mobile system to a countertop 21
