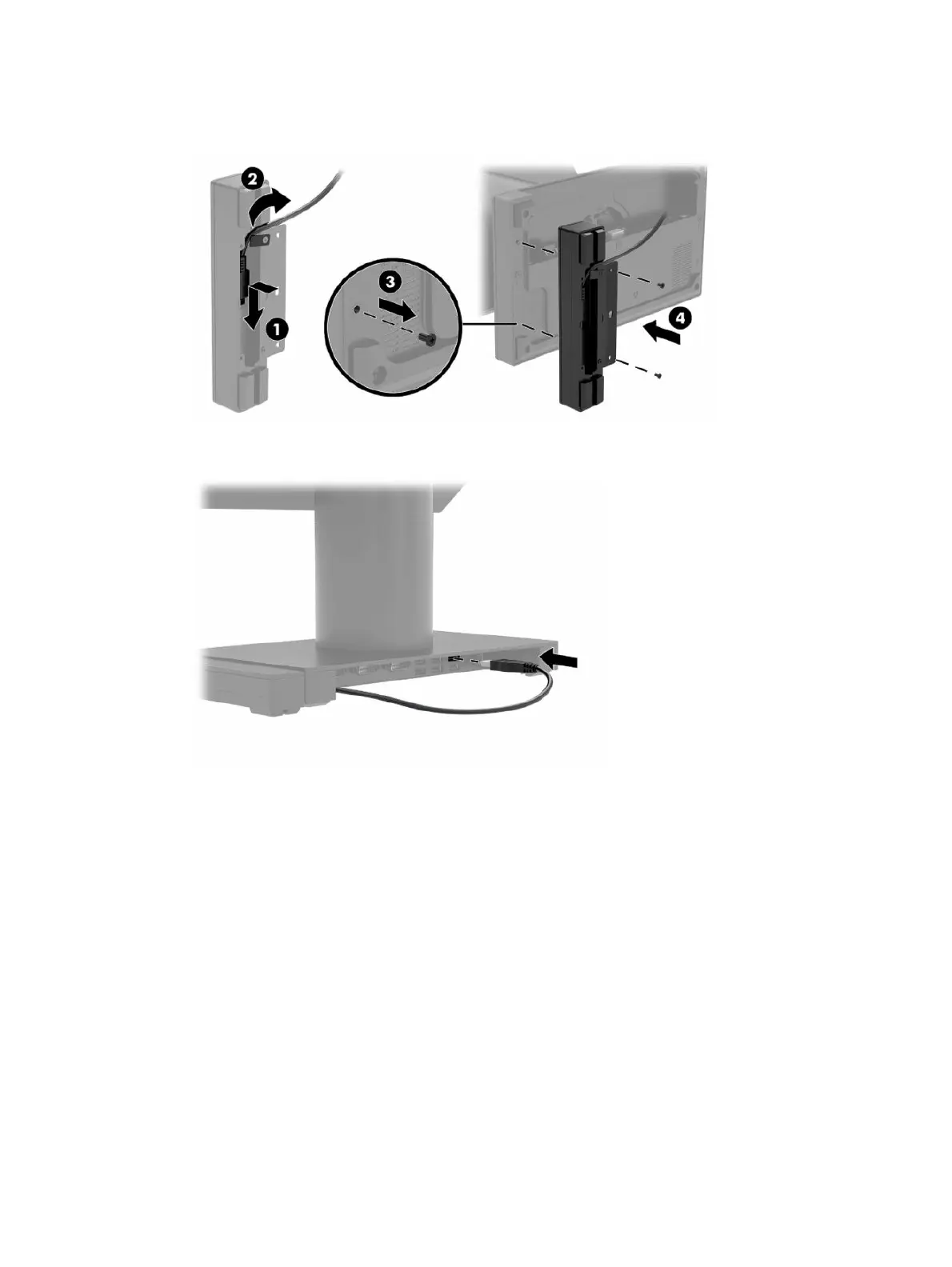

and then attach the bracket on the ngerprint reader assembly to the underside of the I/O connectivity
base (4) using the screw that was removed from the base and the short screw included in the kit.
5. Connect the ngerprint reader cable to a USB Type-A port on the I/O connectivity base.
6. Reconnect the I/O connectivity base and power cords.
Attaching an optional ngerprint reader to the I/O connectivity base 25
