Workstation speaker
This section describes how to remove and install the workstation speaker.
Removing the workstation speaker
To remove the workstation speaker:
1.
Power down the workstation (see
Predisassembly procedures on page 74).
2.
Disconnect power from the workstation (see
Predisassembly procedures on page 74).
3.
Remove the side access panel (see
Removing the side access panel on page 77).
4.
Remove the front bezel (see
Removing the front bezel on page 82).
5.
Disconnect the speaker cable from the system board (1), as shown in the figure below.
6.
Remove the two speaker mounting screws (2).
7.
Remove the speaker by sliding it away from the front panel into the chassis (3).

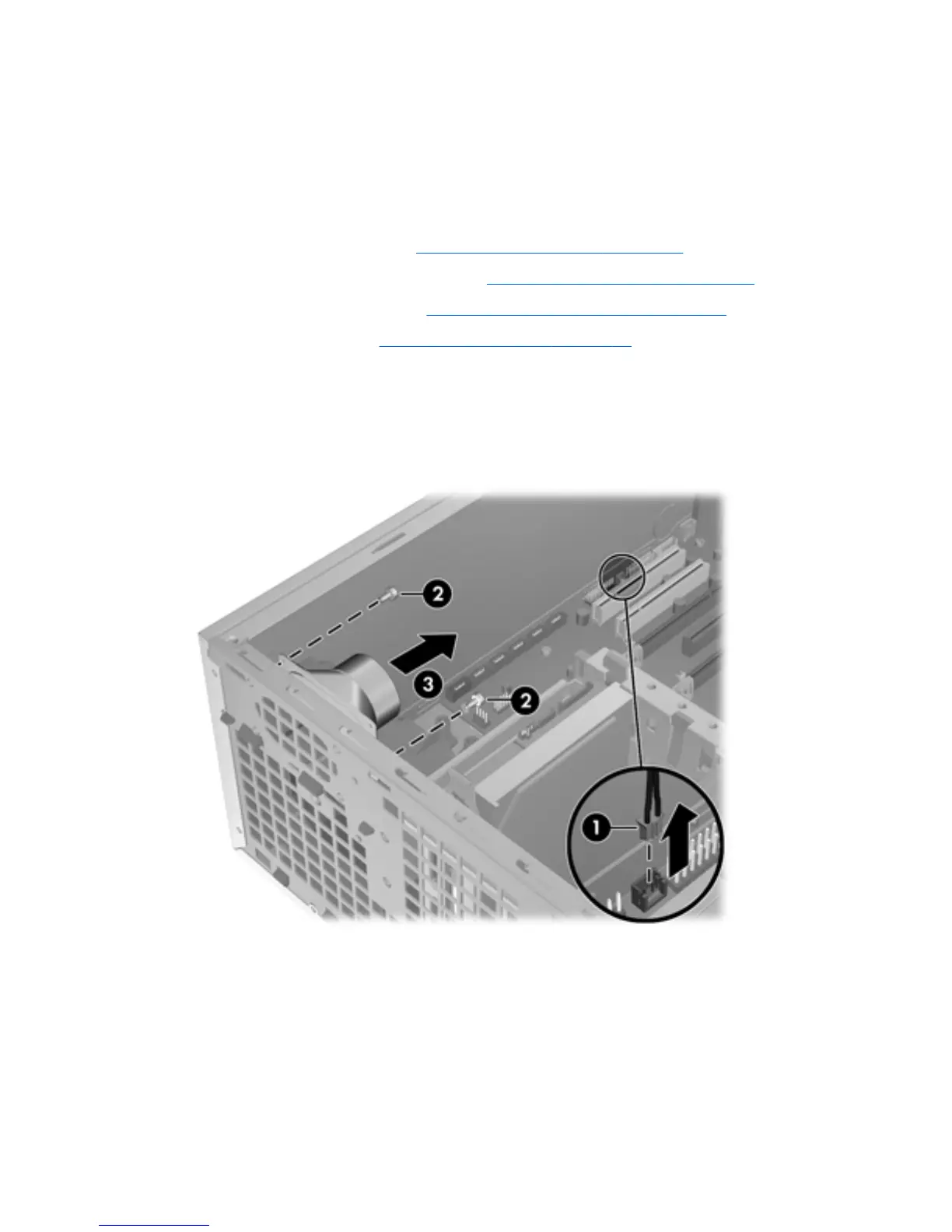

Figure 5-24 Removing the workstation speaker
Installing the workstation speaker
To install the speaker, reverse the previous steps.
