Side access panel sensor (optional)
The side access panel sensor (also called the hood sensor or Smart Cover Sensor) is a switch that
detects when the side access panel is opened. The side access panel sensor is mounted either on a
metal bracket attached to the front chassis or on the front fan holder/card guide.
This section describes how to remove and install the sensor.
Removing the side access panel sensor
To remove the side access panel sensor (bracket mounting):
1.
Power down the workstation (see
Predisassembly procedures on page 74).
2.
Disconnect power from the workstation (see
Predisassembly procedures on page 74).
3.
Remove the side access panel (see
Removing the side access panel on page 77).
4.
Disconnect the sensor cable from the HSENSE receptacle on the system board, as shown below
(1).

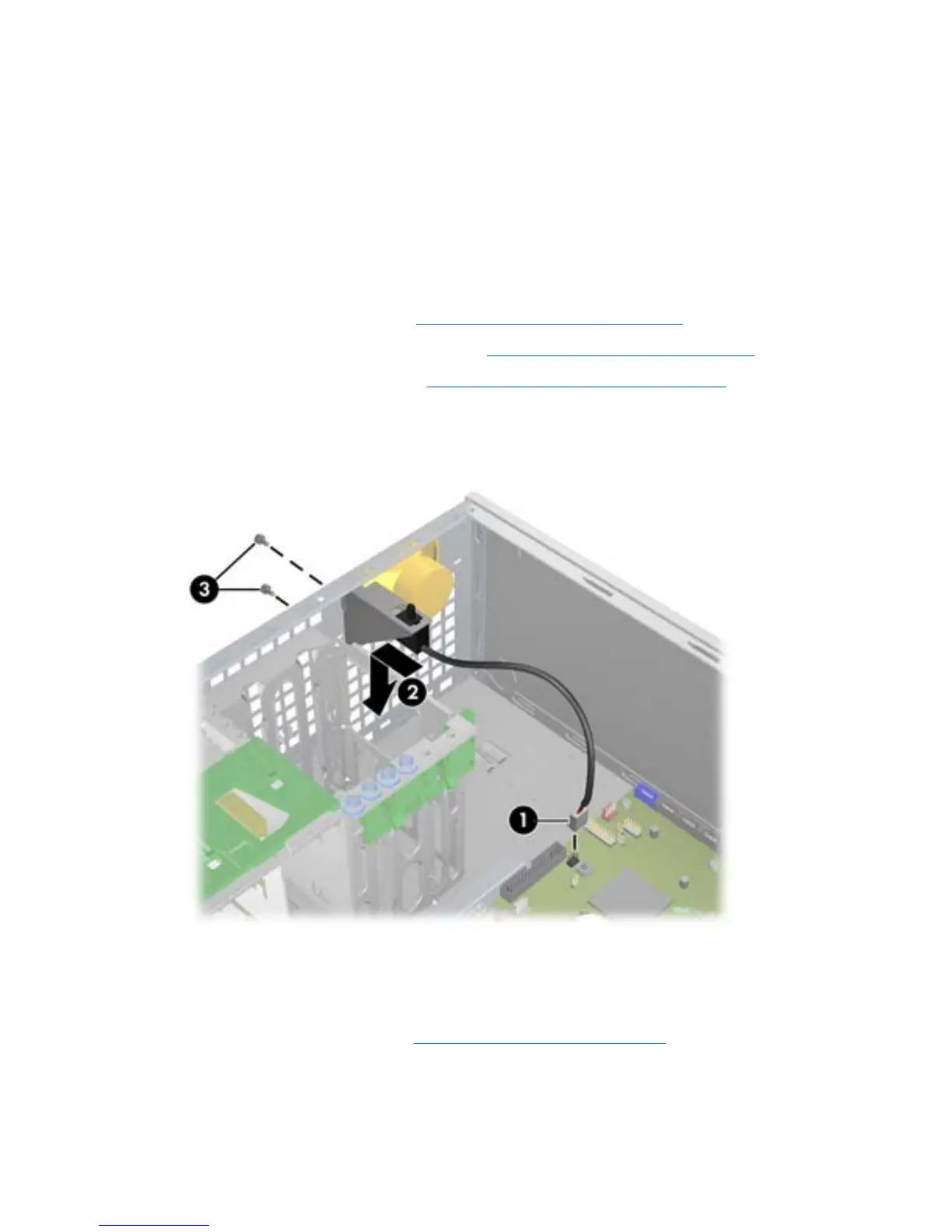

Figure 5-5 Removing the side access panel sensor (bracket mounting)
5.
Remove the sensor by sliding the sensor in the slot in the bracket toward the front of the chassis
and then pushing the sensor down (2).
6.
If removing the metal mounting bracket for the sensor:
a.
Remove the front bezel (see
Removing the front bezel on page 82).
b.
Remove the two screws that hold the metal bracket to the front of the chassis (3).
78 Chapter 5 Replacing components ENWW
