Optical disk drive (desktop configuration)
This section describes how to remove and install an optical disk drive in the workstation desktop
configuration.
Removing an optical drive (desktop configuration)
1.
Power down the workstation (see
Predisassembly procedures on page 74).
2.
Disconnect power from the system (
Predisassembly procedures on page 74),
3.
Remove the side access panel (
Removing the side access panel on page 77).
4.
If your system has an airflow guide, remove it (see
Removing the airflow guide on page 109).
5.
Remove the front bezel (
Removing the front bezel on page 82).
6.
Disconnect the data (1) and power (2) cables from the optical disk drive as shown in the following
figure. (The connector colors might be different than shown in the figure.)

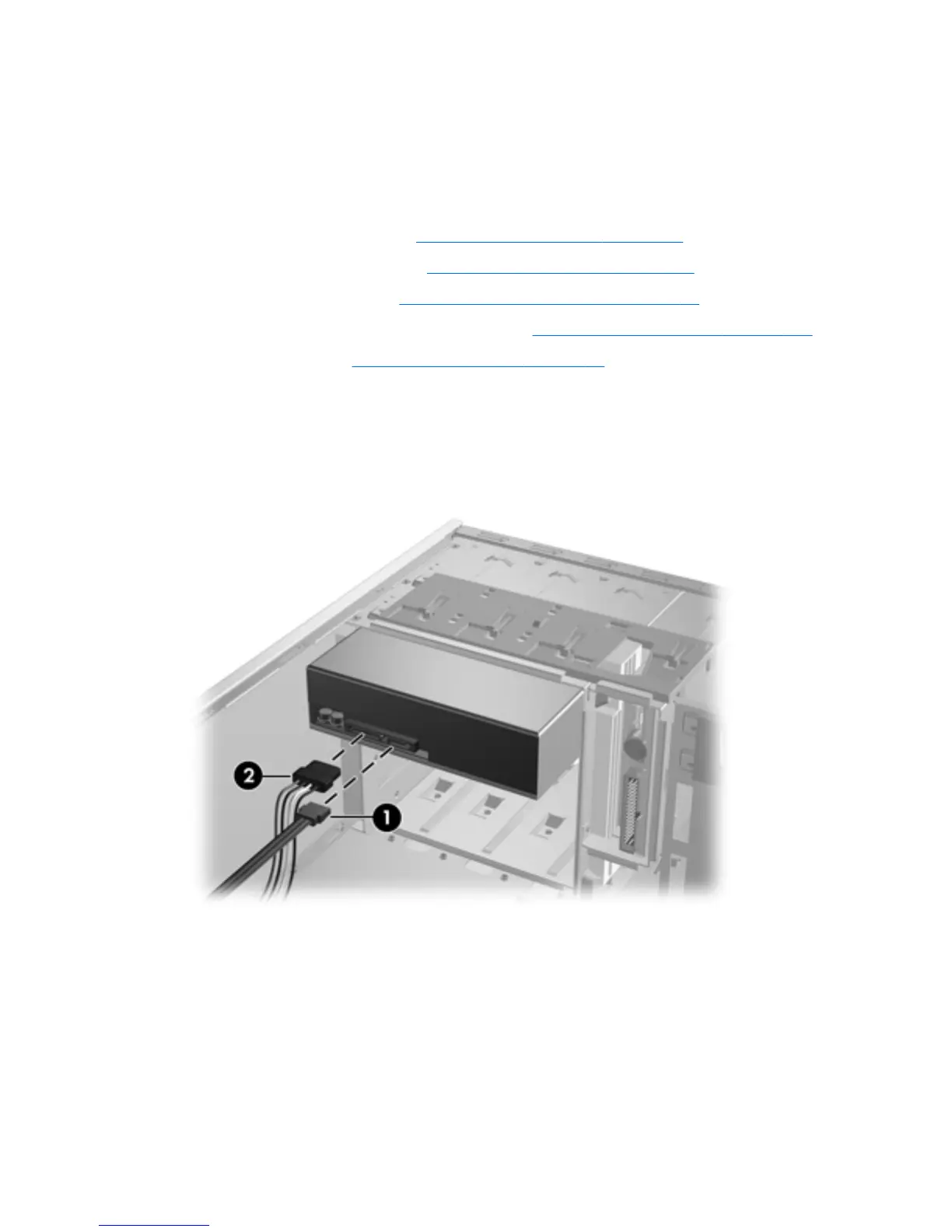

Figure 5-19 Disconnecting the optical drive cables
92 Chapter 5 Replacing components ENWW
