Power button assembly
This section describes how to remove and install the power button assembly.
Removing the power button assembly
To remove the power button assembly:
1.
Power down the workstation (see
Predisassembly procedures on page 74).
2.
Disconnect power from the workstation (see
Predisassembly procedures on page 74).
3.
Remove the side access panel (see
Removing the side access panel on page 77).
4.
Remove the front bezel (see
Removing the front bezel on page 82).
5.
Disconnect the power button cable from the system board, as shown below.

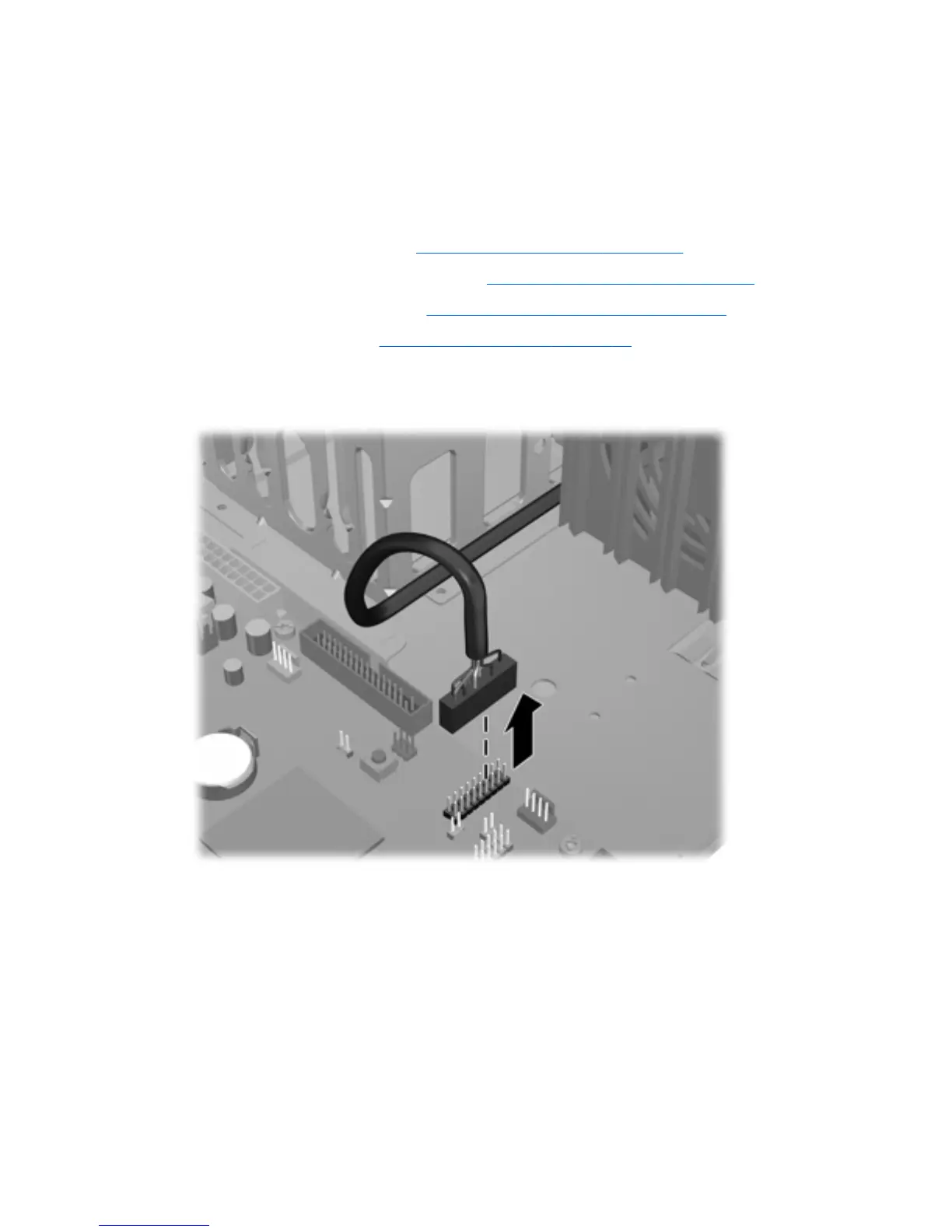

Figure 5-13 Disconnecting the power button cable
6.
From inside of the chassis, push the tabs (1) in from the chassis sides.
86 Chapter 5 Replacing components ENWW
