Workstation components
This section describes workstation components, including front and rear panel components.
For complete and current information on supported accessories and components for the workstation,
see
http://partsurfer.hp.com.
Chassis components
The following image shows the components of a typical workstation configuration. Drive configurations
can vary.

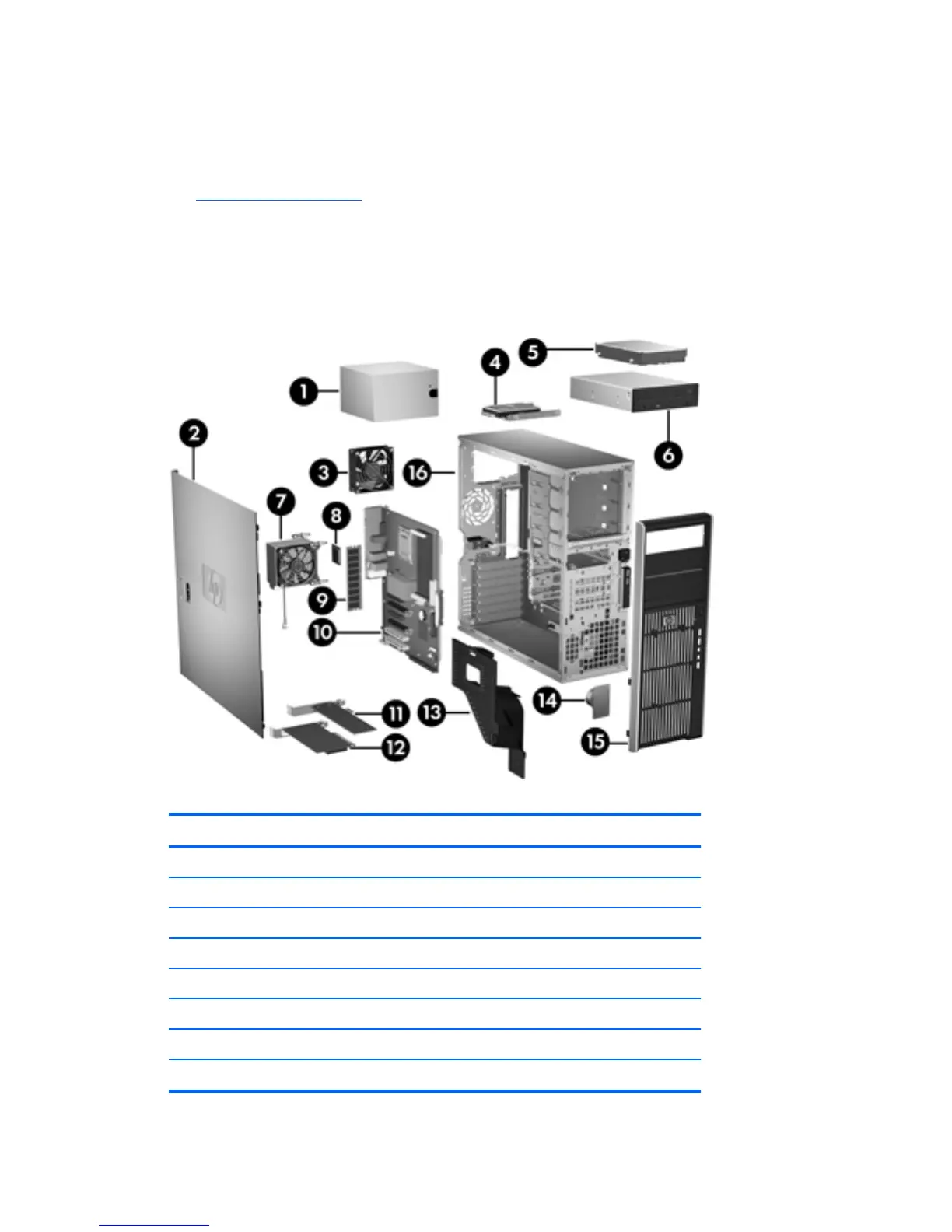

Figure 1-3 Workstation components
Table 1-1 Workstation component descriptions
Item Description Item Description
1 Power supply 9 Memory module (DIMM)
2 Side access panel 10 System board
3 Rear system fan 11 PCIe card
4 SFF Hard drive 12 PCI card
5 Hard disk drive 13 Airflow guide (for 6-DIMM Z400 product)
6 Optical drive 14 Speaker
7 Processor (CPU) heatsink 15 Front bezel
8 Processor 16 Chassis
