5.
Pull the tab (1) on the battery holder, and then lift it straight up (2), as shown in the following
figure.

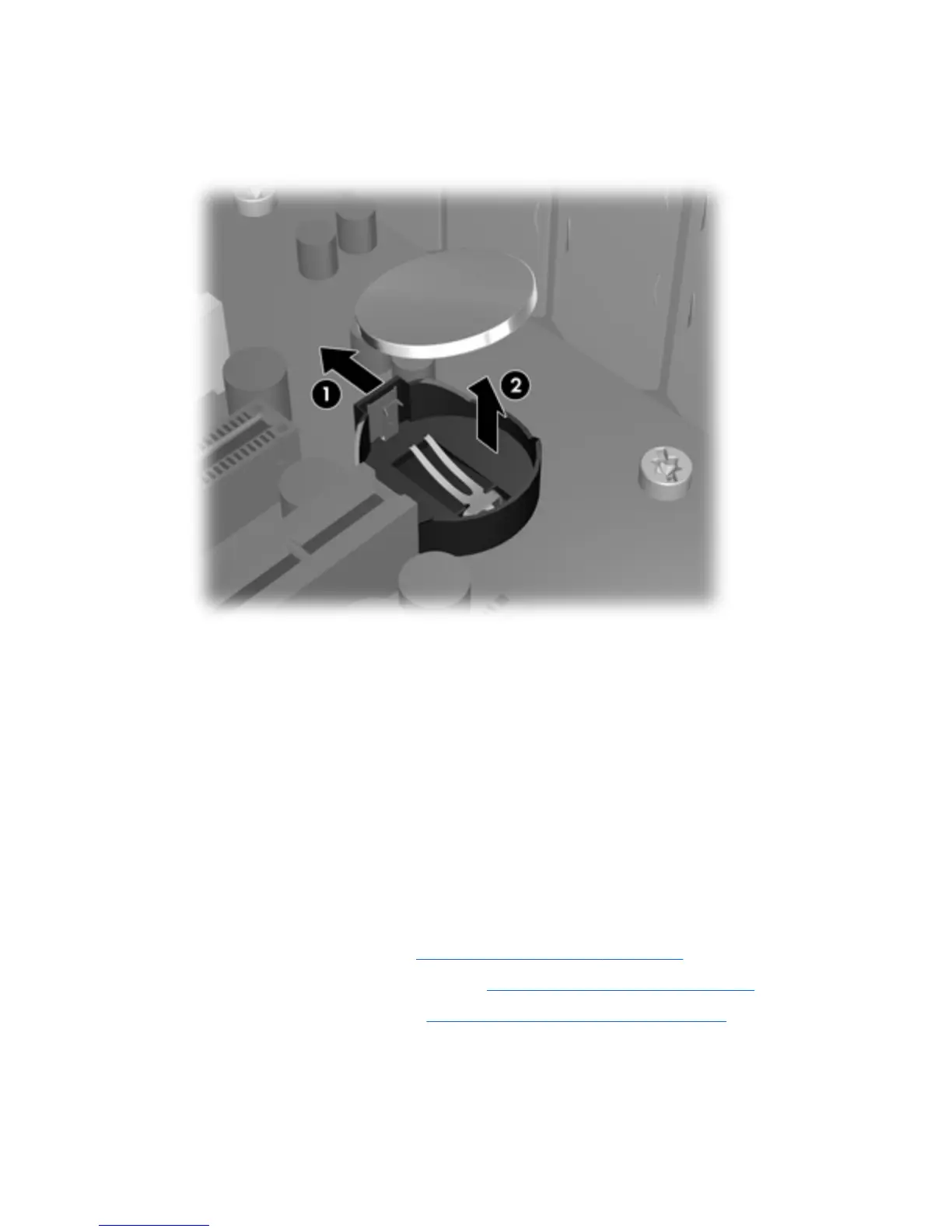

Figure 5-53 Removing the battery
Installing the battery
To install the battery:
1.
Confirm the polarity (positive or negative) of the battery to position it correctly in the battery
holder.
2.
Place the battery edge under the plastic housing tab and press gently until it snaps into place.
Hard disk drive
This section provides information to successfully remove and install a hard disk drive.
Removing the hard disk drive
To remove a hard disk drive:
1.
Power down the workstation (see
Predisassembly procedures on page 74).
2.
Disconnect power from the workstation (see
Predisassembly procedures on page 74).
3.
Remove the side access panel (see
Removing the side access panel on page 77).
4.
Disconnect the power and data cables from the drive.
128 Chapter 5 Replacing components ENWW
