Airflow guide
This section describes how to remove and install the airflow guide used in the 6–DIMM versions of the
workstation.
Removing the airflow guide
1.
Power down the workstation (see
Predisassembly procedures on page 74).
2.
Disconnect power from the workstation (see
Predisassembly procedures on page 74).
3.
Remove the side access panel (see
Removing the side access panel on page 77).
4.

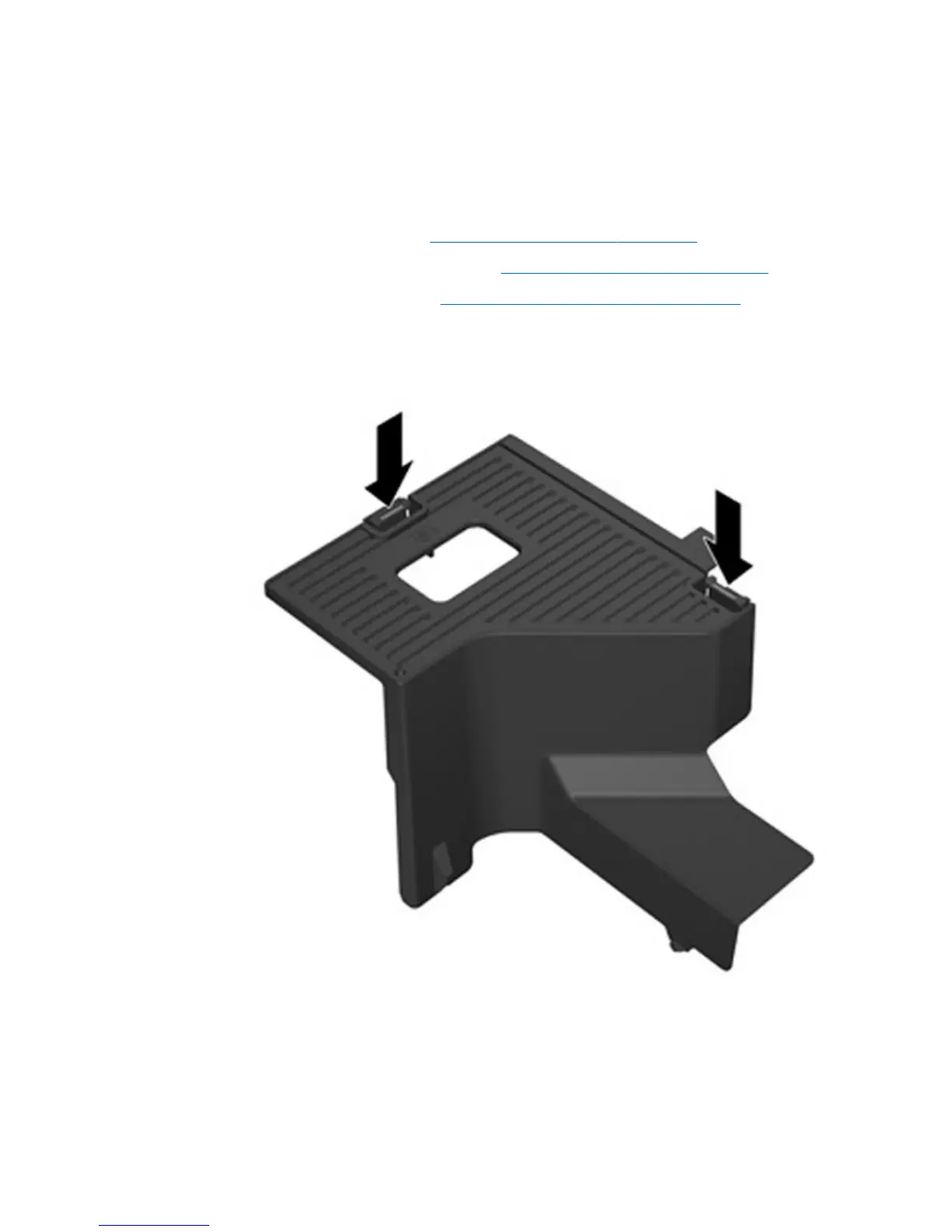

Press the airflow guide release latches as shown in the following figure, and guide the airflow
guide out of the chassis.
Figure 5-37 Removing the airflow guide
