Installing the airflow guide
1.
Power down the workstation (see
Predisassembly procedures on page 74).
2.
Disconnect power from the workstation (see
Predisassembly procedures on page 74).
3.
Remove the side access panel (see
Removing the side access panel on page 77).
4.
Press the power cables, including P1, down toward the system board between the DIMM slots and
the internal bay, as shown in the following figure.

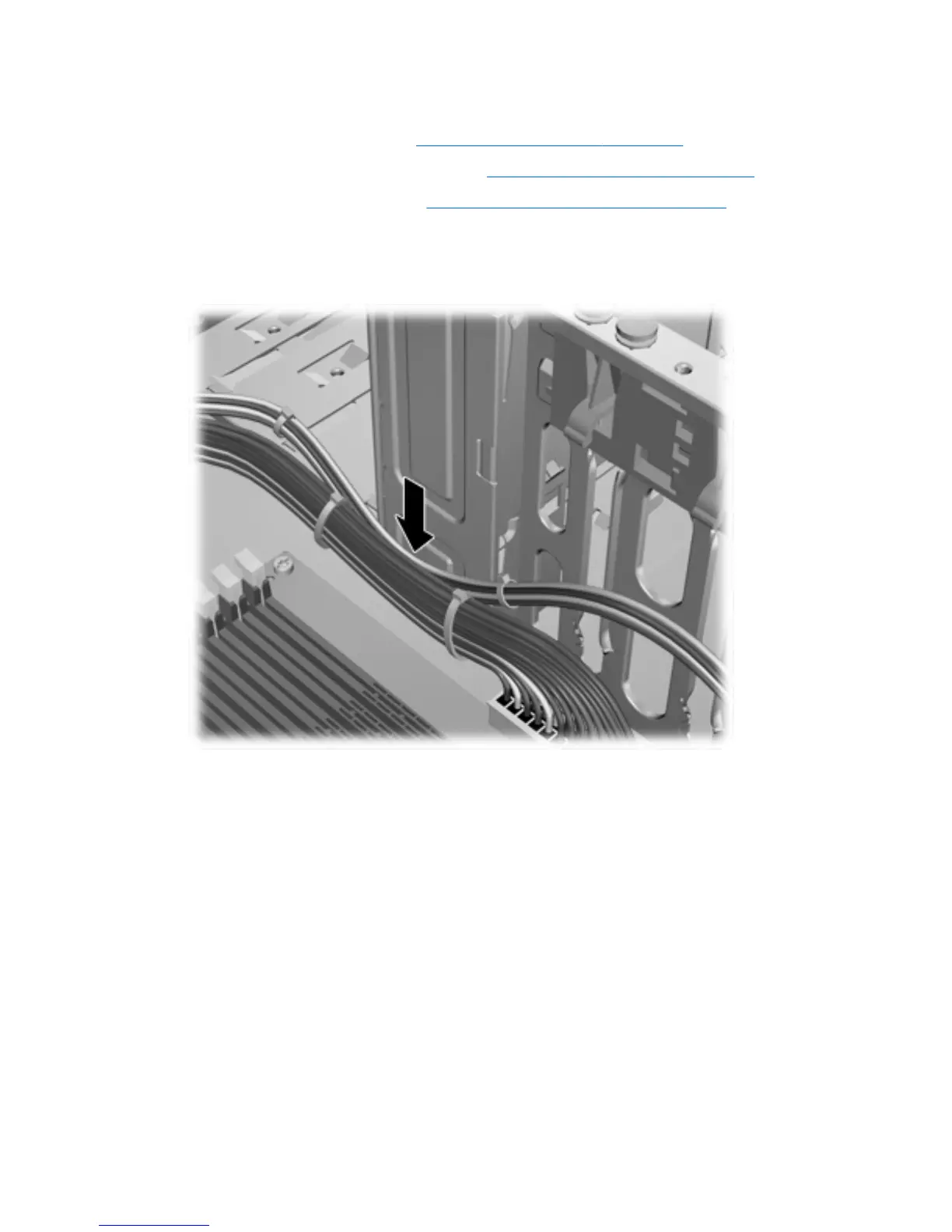

Figure 5-38 Positioning the chassis cables
110 Chapter 5 Replacing components ENWW
