Component identification 10

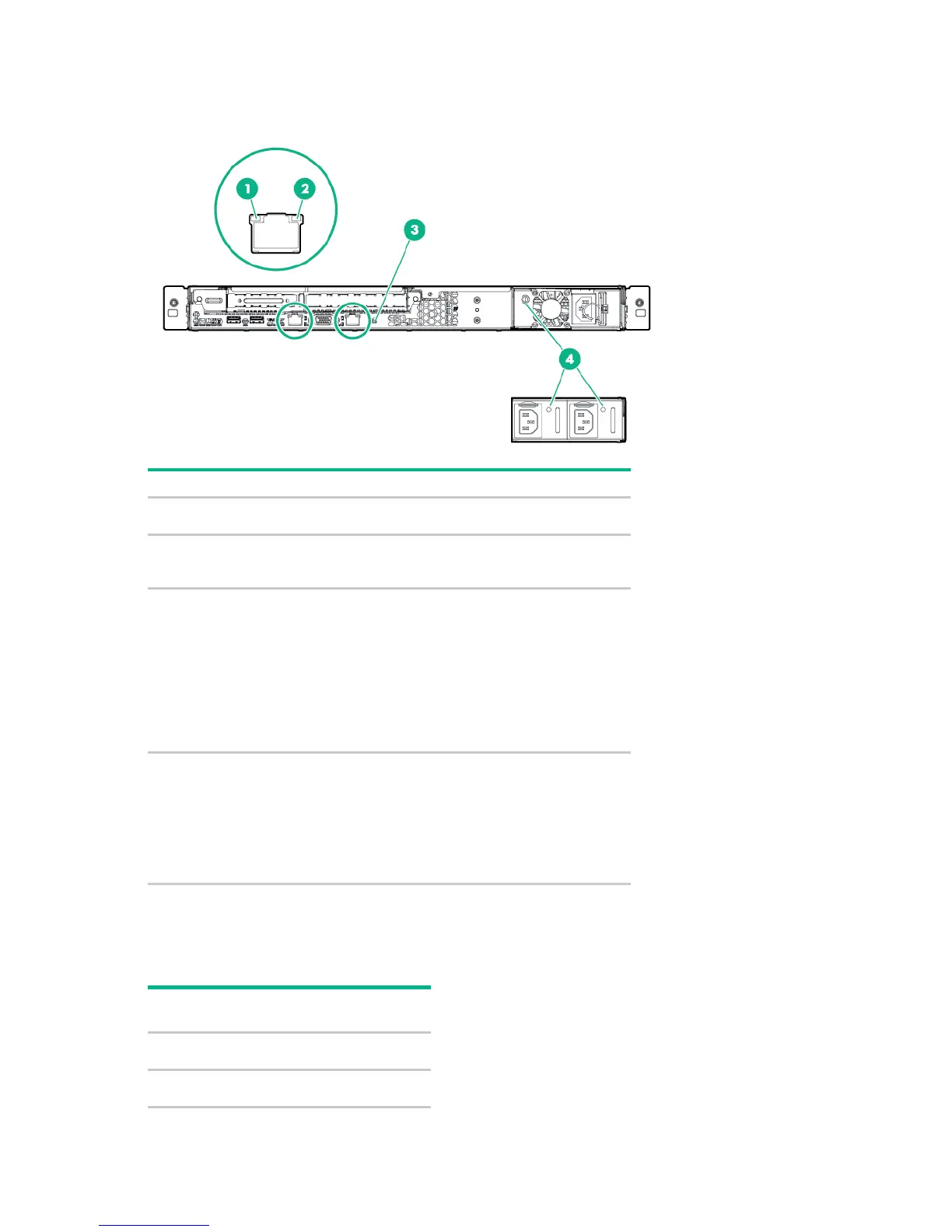

Rear panel LEDs
Item
Description
Status
1
NIC link LED
Green = Network link
Off = No network link
2
NIC activity LED
Solid green = Link to network
Flashing green = Network active
Off = No network activity
3
UID LED
Solid blue = Activated
Flashing blue:
•
1 flash per second = Remote management
or firmware upgrade in progress
•
4 flashes per second = iLO manual reboot
sequence initiated
•
8 flashes per second = iLO manual reboot
sequence in progress
Off = Deactivated
4
Power supply LED
Solid green = Normal
Off = One or more of the following conditions
exists:
•
Power is unavailable
•
Power supply failed
•
Power supply is in standby mode
•
Power supply error
PCIe riser board slot definitions
• FlexibleLOM riser board
Slot
number
Form
factor
Slot
description
FlexibleLOM
slot
FlexibleLOM
PCIe x8
Slot 2
PCIe 3
PCIe3 x8
(8,4,2,1)
