Component identification 12
Item
Description
2
Trusted module connector
3
microSD slot
4
Processor
5
Fan connector 2
6
Fan connector 1
7
System battery
8
Front I/O connector
9
14-pin power connector
10
4-pin power connector
11
8-pin power connector
12
Power supply sideband signal connector
13
Smart Storage Battery connector
14
SATA connector for M.2 SSD/optical drive
15
Storage backup power connector
16
Mini-SAS connector
17
SATA connector for M.2 SSD
18
Fan connector 3
19
Internal USB 3.0 connector
20
System maintenance switch
21
NMI header
For more information on the riser board slots supported by the onboard PCI riser connectors, see "PCIe
riser board slot definitions (on page 10)."

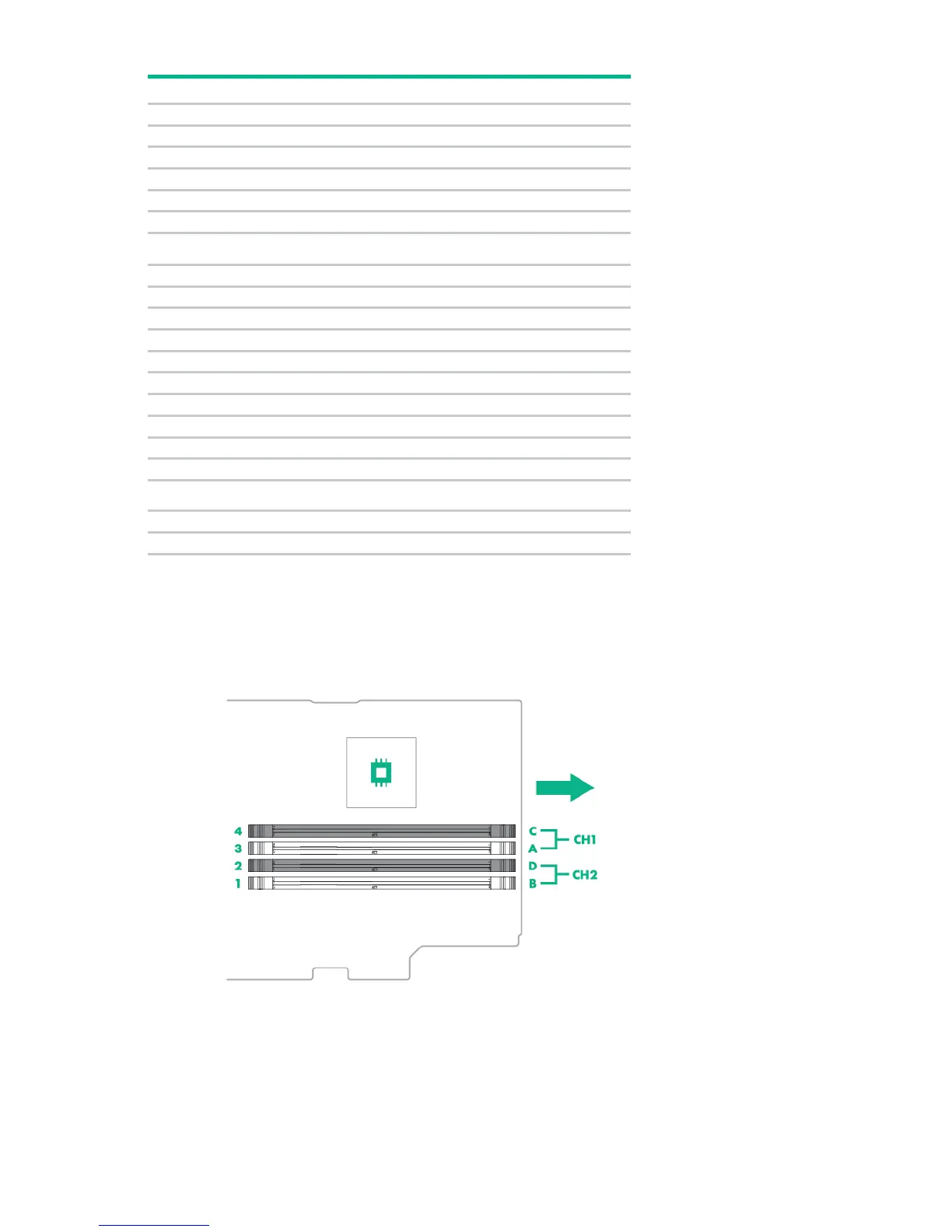

DIMM slot locations
The arrow points to the front of the server.
